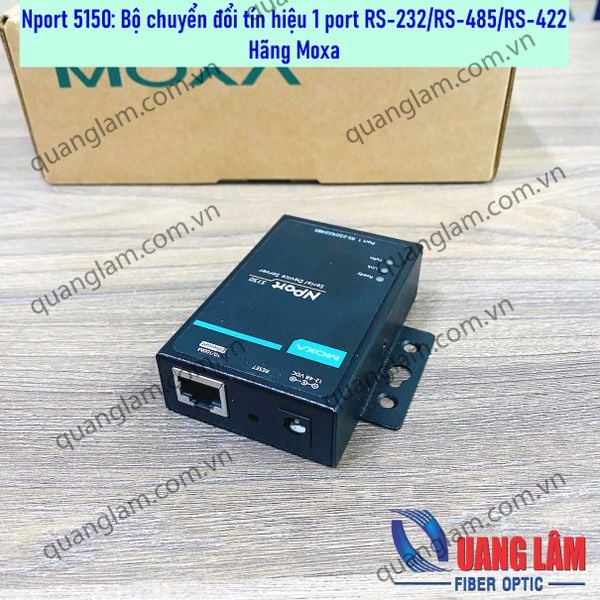

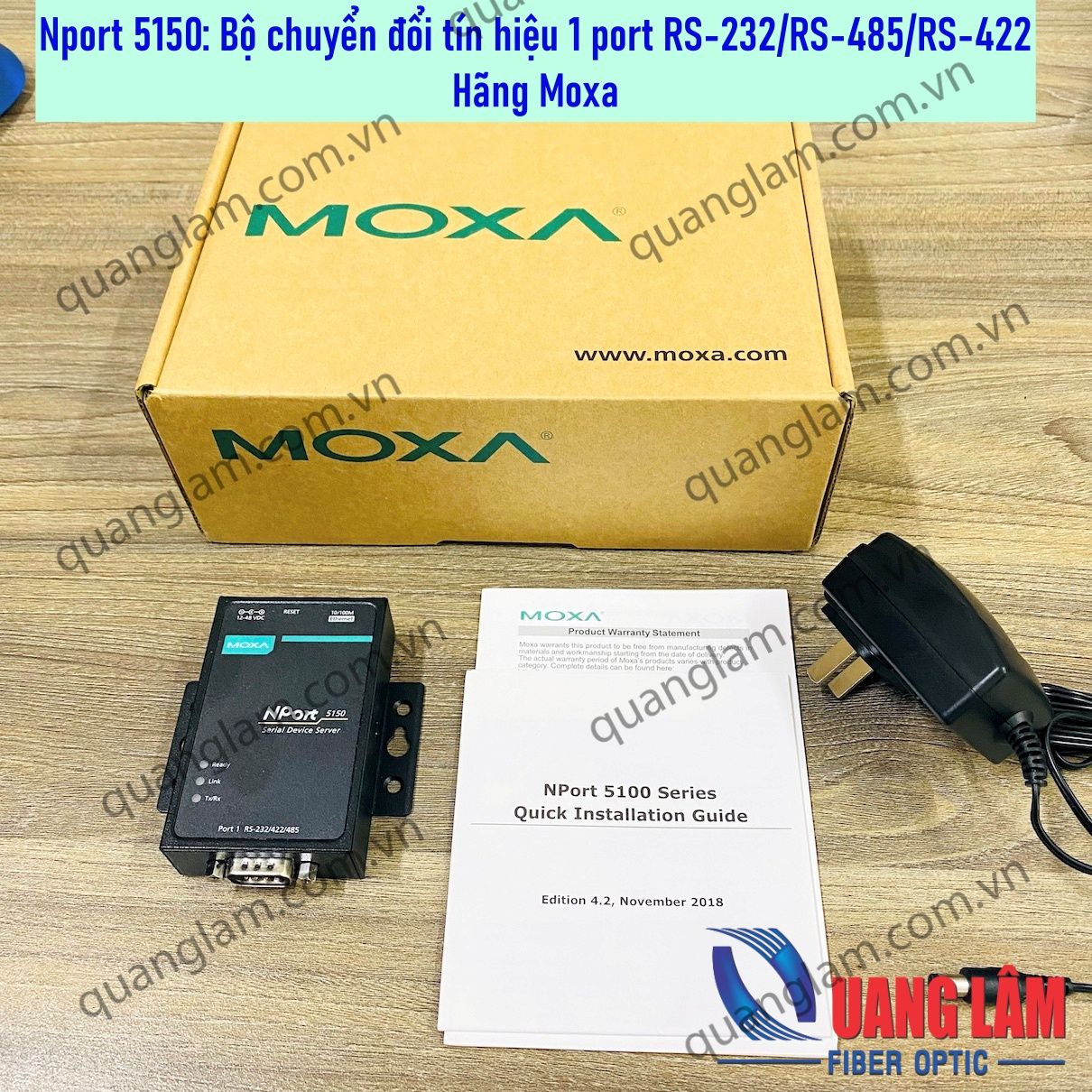

NPort 5150 Bộ chuyển đổi 1 cổng RS232/485/422 sang Ethernet - Moxa

3,900,000₫

Tags:

MOXA

Mô tả

Nport 5150 Bộ chuyển đổi tín hiệu 01 cổng RS-232/485/422 sang Ethernet của hãng MOXA-Taiwan

NPort 5150 được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng,... Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, …

Tính năng của sản phẩm:

Small size for easy installation
Real COM/TTY drivers for Windows and Linux
Standard TCP/IP interface and versatile operation modes
Easy-to-use Windows utility for configuring multiple device servers
SNMP MIB-II for network management
Configure by Telnet, web browser, or Windows utility
Adjustable pull high/low resistor for RS-485 ports

Thông số kỹ thuật của sản phẩm:

• Ethernet Interface
Number of Ports	1
Speed	10/100 Mbps, auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 kV built-in
• Serial Interface
Number of Ports	1
Serial Standards	NPort 5150: RS-232/422/485
Connector	DB9 male
RS-485 Data Direction Control	ADDC® (Automatic Data Direction Control)
Pull High/Low Resistor for RS-485	1 kΩ, 150 kΩ
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate	Supports standard baudrates (unit=bps) NPort 5130/5150: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 1920
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Network Protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, ARP, HTTP, SMTP
Configuration Options	Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x, 4.x
Android API	Android 3.1.x and later
• Physical Characteristics
Housing	Metal
Weight	340 g (0.75 lb)
Dimensions	Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
• Environmental Limits
Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	12 to 48 VDC
Input Current	NPort 5130/5150: 200 mA @ 12 VDC
• Standards and Certifications
Safety	UL 60950-1
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4
• Reliability
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
• MTBF (mean time between failures)
Time	NPort 5150: 2,736,202 hrs
Standard	Telcordia (Bellcore) Standard TR/SR
