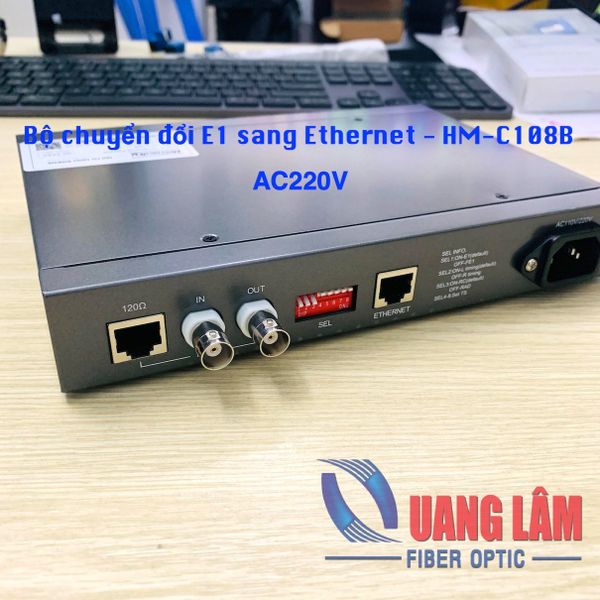

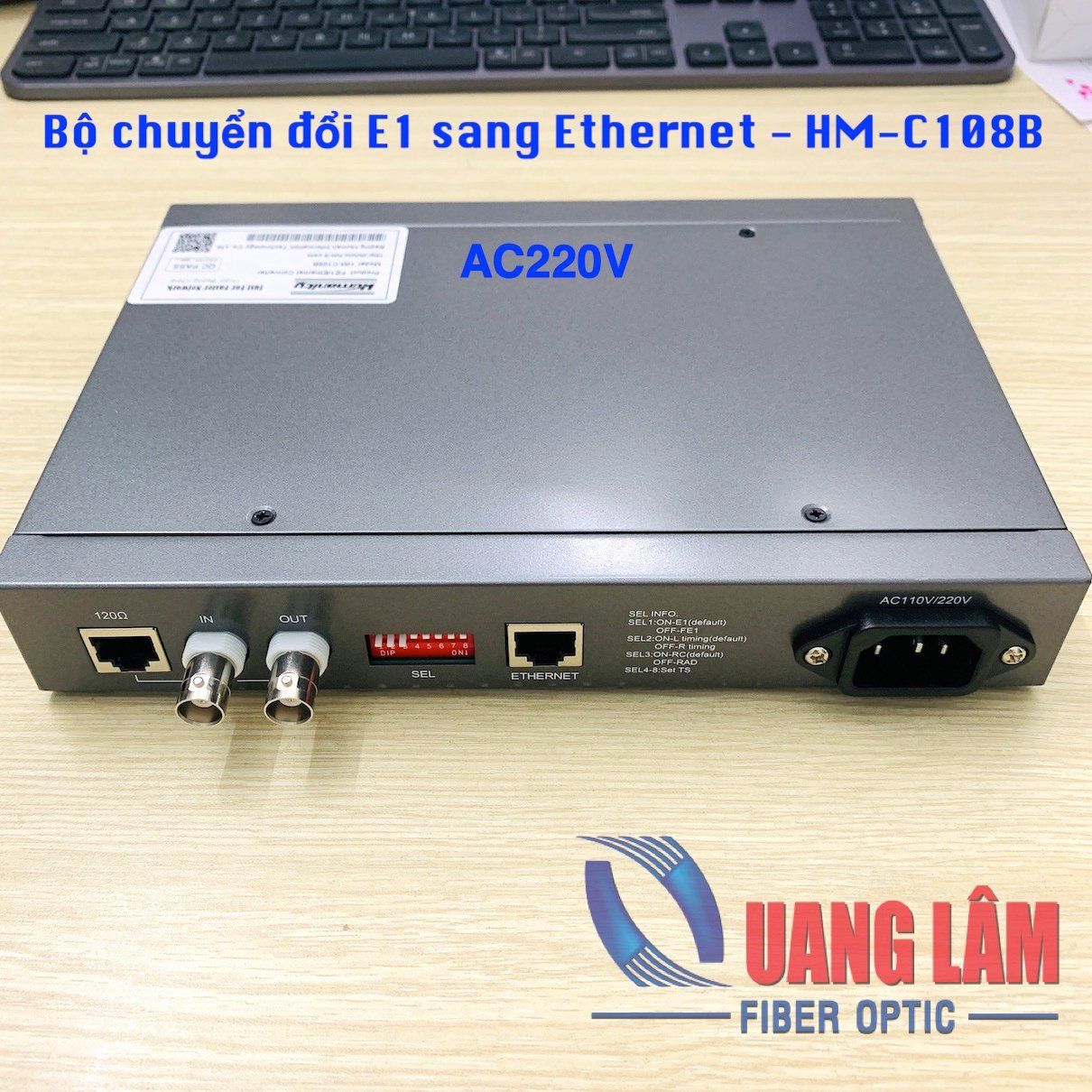

Bộ chuyển đổi giao thức Ethernet sang E1, HM-C108B (Nguồn AC220V)
Humanity HM-C108B E1 to Ethernet converter realizes Ethernet transmission overframeorunframeE1 at the bandwidth of 64kbps~2048Kbps. This device can work with third party E1 to Ethernet converters supportRC7221 or RAD RJ017.
Main Features
This device can work with third party devices
Comply with ITU-T G.703, G.704
Ethernet transmission over E1
Specifications
E1
Ethernet
One E1 offered
Connector: RJ45 and BNC
Impedance: 120ohm and 75ohm
Line code:HDB3
Rate: 64kbps to2048kbps
Comply withITU-T G.703 standard
Jitter comply withITU-T G.823 standard
1xEthernet
Auto adapt 10/100M, full/half duplex
Support MDI/MDIX
Connector: RJ45
LED indicators
DIP switch
POWER

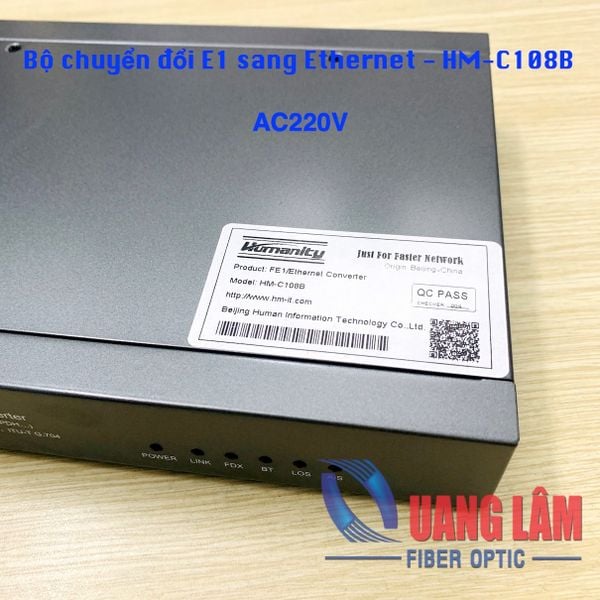

Ethernet: LINK, FDX, BT
E1: LOS, AIS
DIP1: E1/FE1
DIP2: local timing/recovery timing
DIP3: work with devices support RC7221 or RAD RJ017
9%
Mô tả
Bộ chuyển đổi giao thức Ethernet sang E1, HM-C108B (Nguồn AC220V)
Humanity HM-C108B E1 to Ethernet converter realizes Ethernet transmission over frame or unframe E1 at the bandwidth of 64kbps~2048Kbps. This device can work with third party E1 to Ethernet converters support RC7221 or RAD RJ017.
Main Features
Specifications
E1
Ethernet
One E1 offered
Connector: RJ45 and BNC
Impedance: 120ohm and 75ohm
Line code: HDB3
Rate: 64kbps to 2048kbps
Comply with ITU-T G.703 standard
Jitter comply with ITU-T G.823 standard
1xEthernet
Auto adapt 10/100M, full/half duplex
Support MDI/MDIX
Connector: RJ45
LED indicators
DIP switch
POWER
Ethernet: LINK, FDX, BT
E1: LOS, AIS
DIP1: E1/FE1
DIP2: local timing/recovery timing
DIP3: work with devices support RC7221 or RAD RJ017
DIP4-8: set time slot
Power
Environment
AC power
Power consumption: <5W
Working temperature: 0 ~ 50℃
Relative humidity: ≤90%(25℃)
