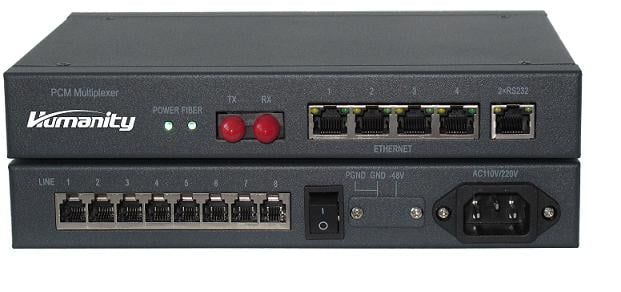

Bộ chuyển đổi 8 kênh thoại FXO/FXS +4Ethernet+2RS232 sang quang HM-PN08

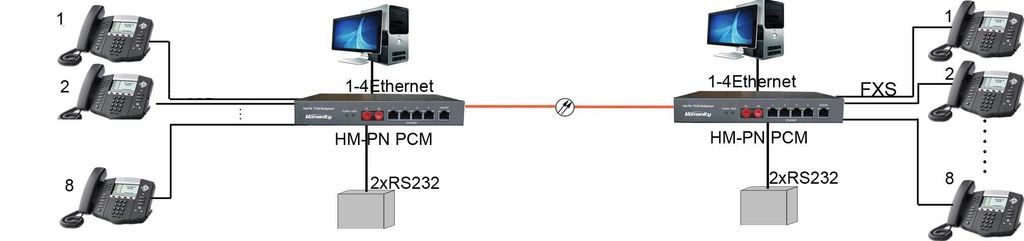

PCM integrated access device can realizes 8xFXO/FXS+4x100M Ethernet+2xRS232 over fiber. They are mainly used in public security, military, water conservancy, electric power, oil field etc.
Main Feature:
Device construct
Compact design with standalone box. Smaller than 1U 19inch.
Longer mount kits also available to be in 19inch cabinet.
Optical
Default: FC, dual fiber, single mode, 40km, 1310nm.
Optical module is option when in order.
Rate: 150Mbps
Phone
(hotline or FXO/FXS)
Connector: RJ11
Impedance: 200Ω+680Ω‖0.1uF
Frequency character: 300-3400Hz（-0.6-+3dB）
Weighted noise: ≤-65dBmop
Interface loop resistance: ≤1800Ω
Ethernet
4 Ethernet
Connector: RJ45
Share 100M
RS232
Maximum 2 channel RS232
Connector: 1xRJ45
Transmitting output voltage: ±15V
Receiving input voltage: ±15V
The maximum rate of transmitting and receiving: 115.2Kbps
9%
Mô tả
Main Feature:
Device construct
Compact design with standalone box. Smaller than 1U 19inch.
Longer mount kits also available to be in 19inch cabinet.
Optical
Default: FC, dual fiber, single mode, 40km, 1310nm.
Optical module is option when in order.
Rate: 150Mbps
Phone
(hotline or FXO/FXS)
Connector: RJ11
Impedance: 200Ω+680Ω‖0.1uF
Frequency character: 300-3400Hz（-0.6-+3dB）
Weighted noise: ≤-65dBmop
Interface loop resistance: ≤1800Ω
Ethernet
4 Ethernet
Connector: RJ45
Share 100M
RS232
Maximum 2 channel RS232
Connector: 1xRJ45
Transmitting output voltage: ±15V
Receiving input voltage: ±15V
The maximum rate of transmitting and receiving: 115.2Kbps
Power
AC or DC power option
Environment
Working temperature: 0 ~ 70℃
Relative humidity: ≤90%(25℃)
