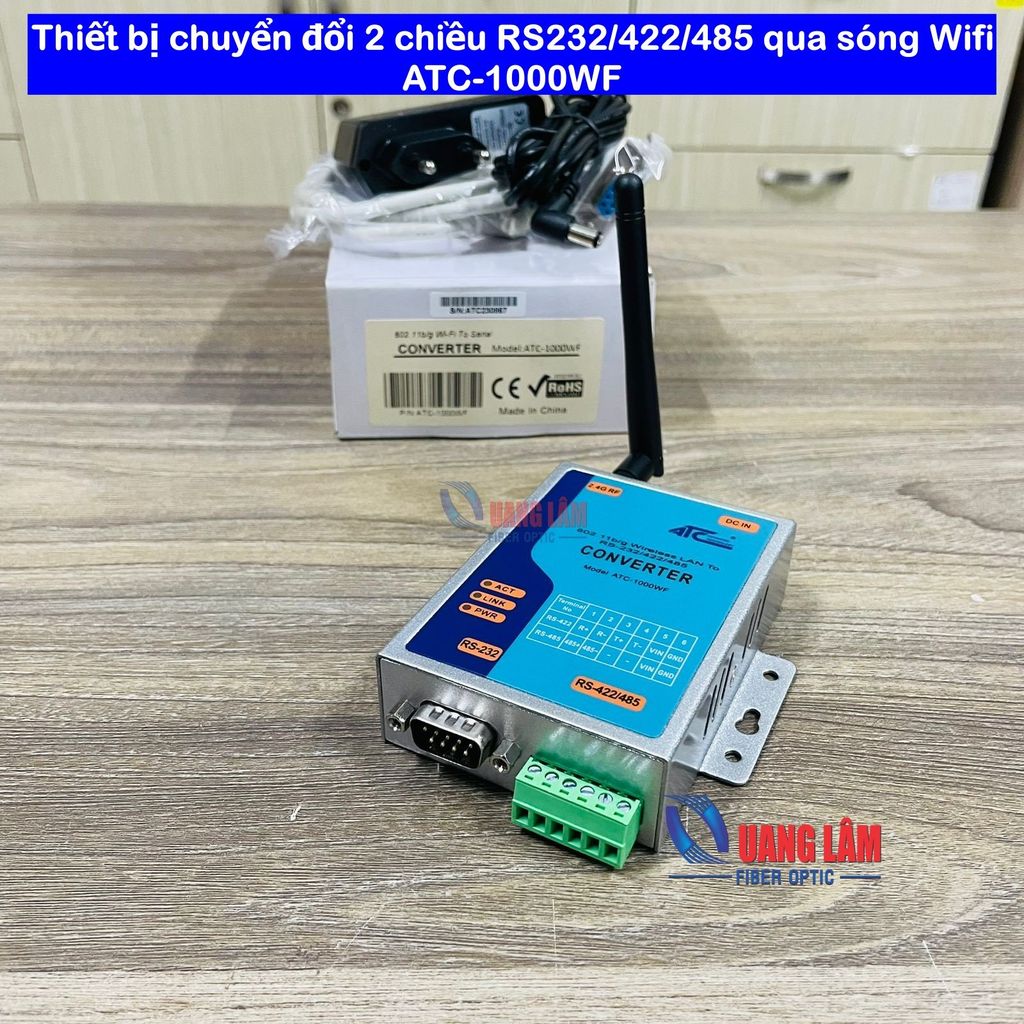

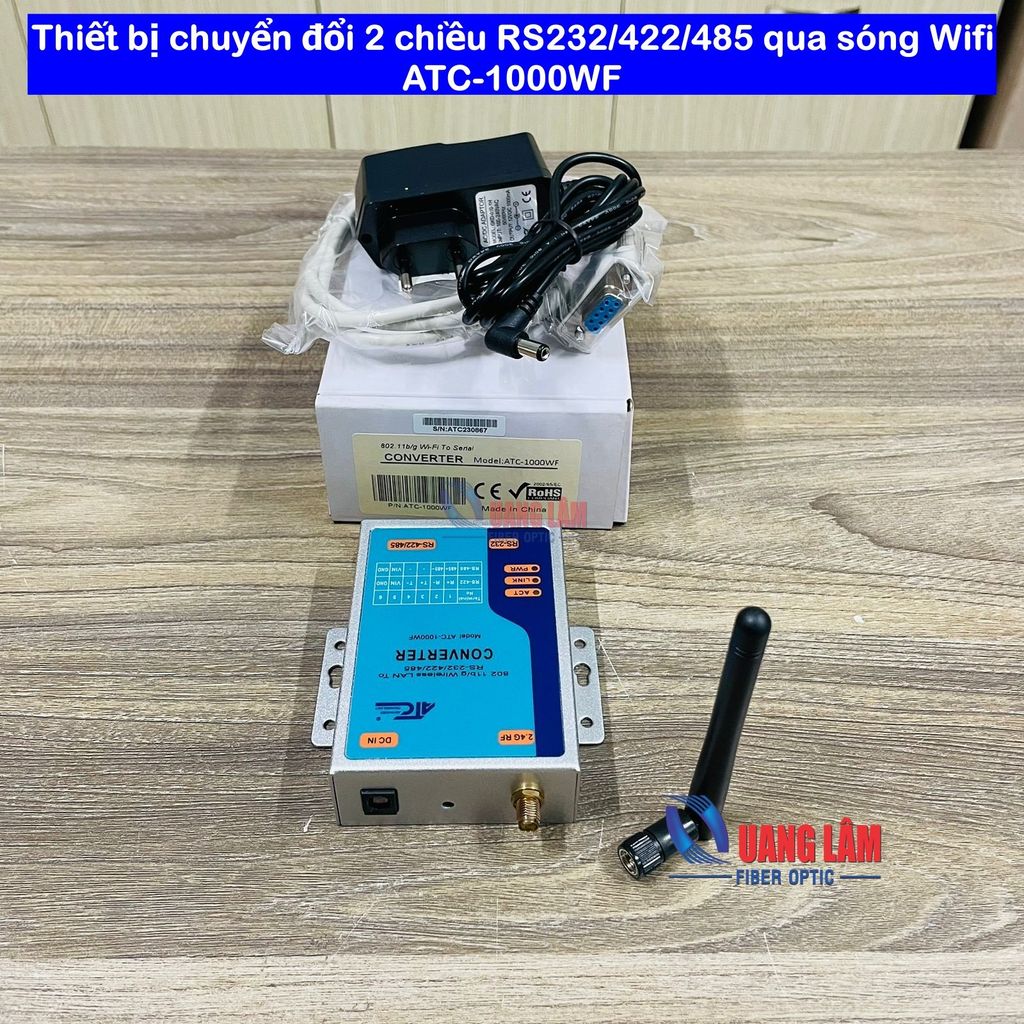

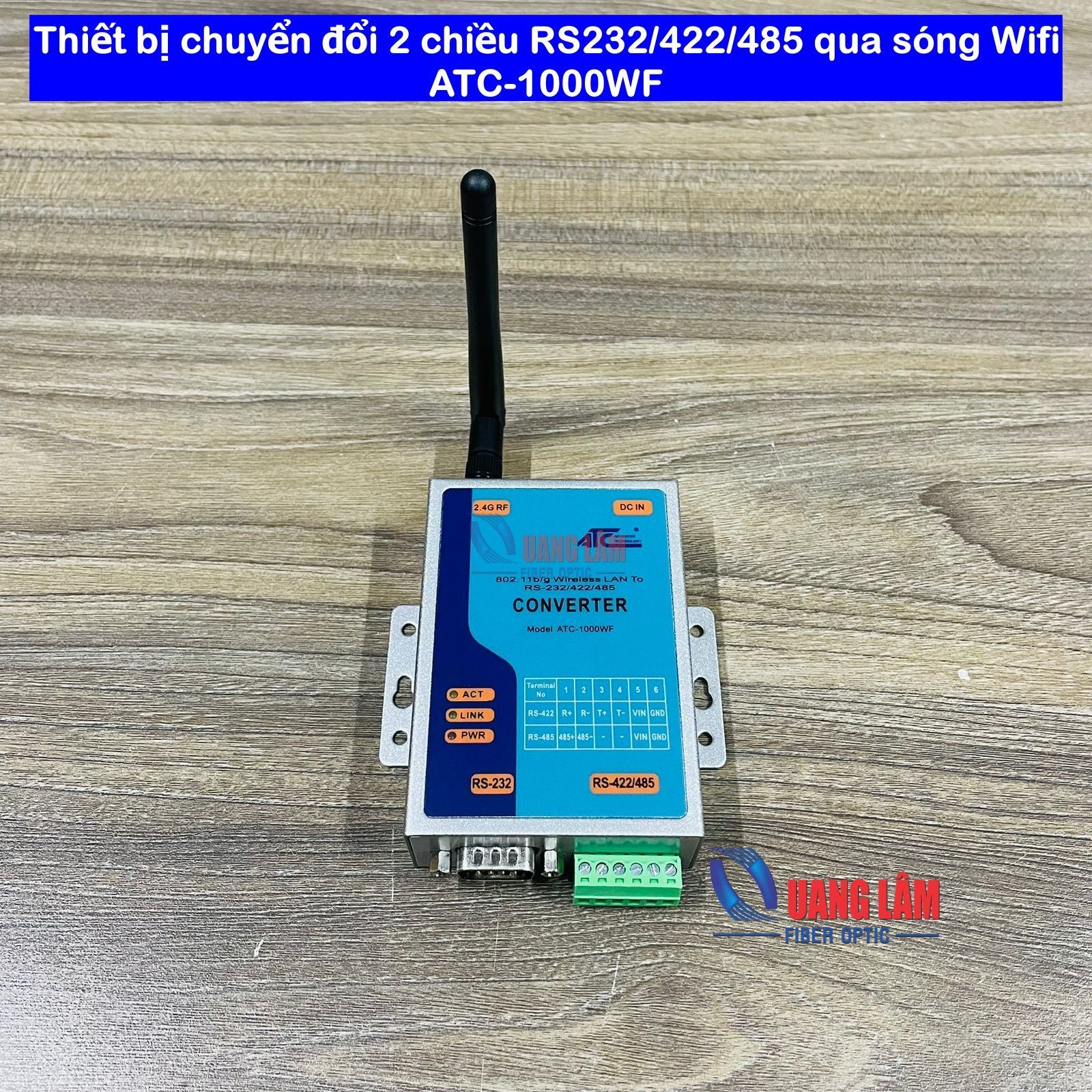

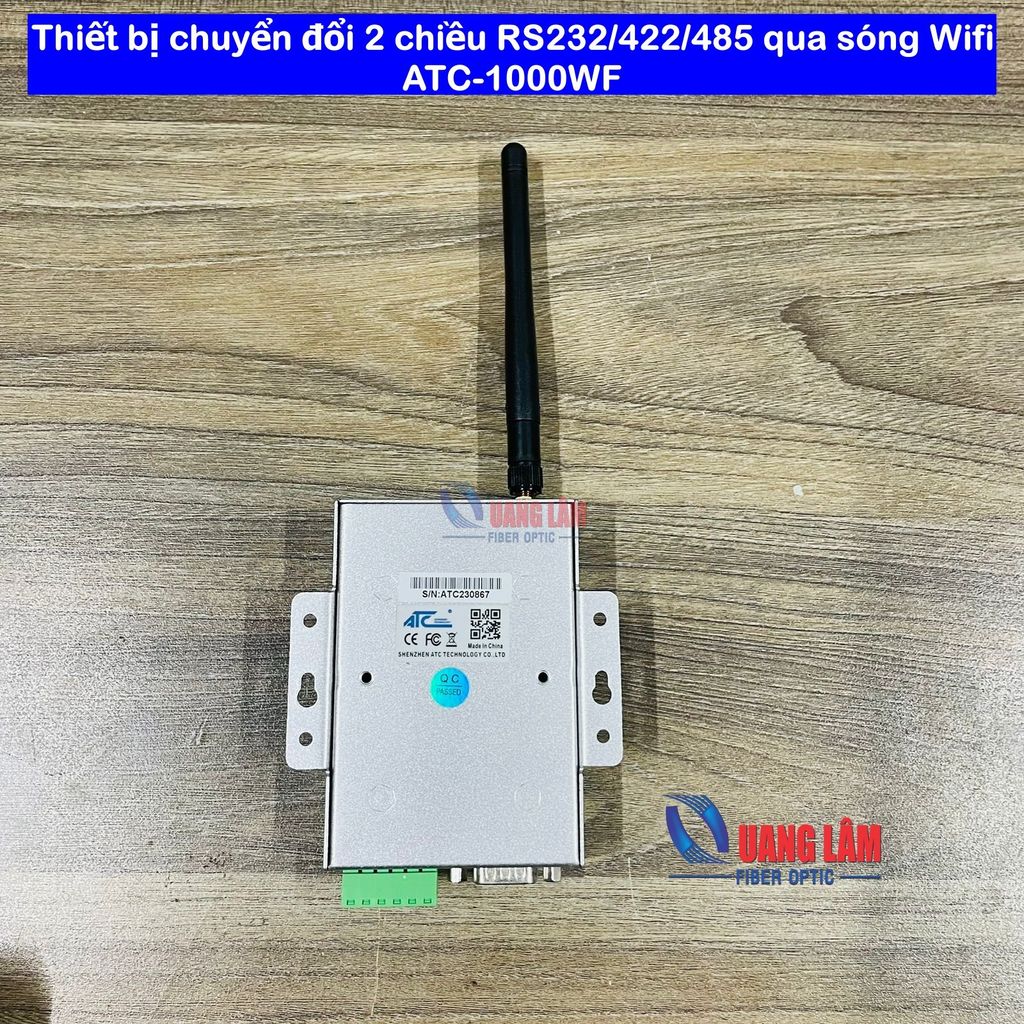

ATC-1000WF: Thiết bị chuyển đổi 2 chiều RS232/422/485 qua sóng Wifi
The ATC 1000WF is a 2.4GHz 802.11b/g WiFi device with U.FL connector for external antenna transceiver on board to provide a complete. The ATC-1000WF is a rail mounting device with lower-cost, precalibrated RF frontend and precertified WiFi. This complete solution is preloaded with software to simplify integration and miniizes development of your application. In the simplest configuration the hardware only requires four connections (PWR, TX, RX, GND) to create a wireless data connection. The ATC-1000WF is programmed and controlled with a simple ASCII command language and webpage. Once the ATC-1000WF is setup it can scan to find an access point, associate, authenticate and connect over any Wi-Fi network.
Serial lnterface
lnterface Type
RS-233/485/422 3 in 1(optional)
UART Speed
1200bps to 115200bps
Data bits
5,6,7 or 8 bits
Parity
None,Odd,Even
Stop Bits
1,1.5 or 2 bits
Flow Control
None,Software;Xon/xoff,Hardware;RTS/CTS
Protocol
IP/TCP/UDP/ICMP/IGMP Checksum and ARP in hardware;TCP,UDP,ICMP,IGMP,IPv4,DHCP,BOOTP,ARP,
DNS,SMTP,SNTP,UPnP,PPPoE,Telnet,and HTTP in software
Connector
RS-232
DB-9 male
RS-485/422
6-pin Teminal block
Radio Characteristics
Frequency
2.412 - 2.472 GHz
Channels
1-11
Transmission rate
(over the air)
IEEE 802.11b;1,2,5.5 and 11 Mbps
IEEE 802.11g;6,9,12,18,24,36,48,and 54Mbps
Supports TX rate auto fall-back mechanism
Wi-Fi Certified ID
WFA11474 for AXM22001-2A-B
System
CPU
ASLX AX22001,dual 8-bit 1T 8051/80390 CPU (MCPU/WCPU)@80MHz
Memory
1M FLASH,64K SRAM
RF Transceiver
Airoha AL2230S
LED lndicators
LINK
WLAN status
ACT
lt will flash when transmit the data from WLAN toserial or from serial to WLAN
9%
Mô tả
ATC-1000WF: Thiết bị chuyển đổi 2 chiều RS232/422/485 qua sóng Wifi
The ATC 1000WF is a 2.4GHz 802.11b/g WiFi device with U.FL connector for external antenna transceiver on board to provide a complete. The ATC-1000WF is a rail mounting device with lower-cost, precalibrated RF frontend and precertified WiFi. This complete solution is preloaded with software to simplify integration and miniizes development of your application. In the simplest configuration the hardware only requires four connections (PWR, TX, RX, GND) to create a wireless data connection. The ATC-1000WF is programmed and controlled with a simple ASCII command language and webpage. Once the ATC-1000WF is setup it can scan to find an access point, associate, authenticate and connect over any Wi-Fi network.
IP/TCP/UDP/ICMP/IGMP Checksum and ARP in hardware;TCP,UDP,ICMP,IGMP,IPv4,DHCP,BOOTP,ARP,
DNS,SMTP,SNTP,UPnP,PPPoE,Telnet,and HTTP in software
Transmission rate
(over the air)
IEEE 802.11b;1,2,5.5 and 11 Mbps
IEEE 802.11g;6,9,12,18,24,36,48,and 54Mbps
Supports TX rate auto fall-back mechanism
