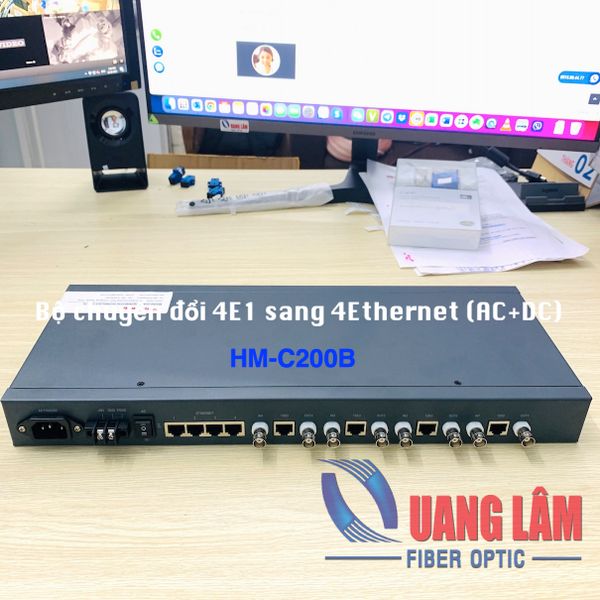

Bộ chuyển đổi 4E1 sang 4Ethernet, HM-C200B
*4E1 to 4Ethernet converter
*BNC and RJ45 offered
*GFP VCAT LCAS
*AC and DC power
Humanity HM-C200B 4E1 to Ethernet converter realizes Ethernet transmission over 1~4E1. This model complies with ITU-T G. 7041, G. 7042, G. 7043, G. 8040 and able to work with third party device followed same protocol.
* Realize Ethernet data transmission over 1~4E1
* Comply with ITU-T G. 7041, G. 7042, G. 7043, G. 8040. It's able to work with third party device followed same standard ITU protocol.
* Support auto delete the fault E1 channels (BER more than 1E-6 or a serious warning LOS/AIS/LOF or the signal loop back); Auto-restore the use of E1 after eliminate the failure.
* The E1 spur track on both ends can be connected not according to the serial number. If one E1 channel fails, the rest channels can still work.
* For 4E1 channels, the maximum tolerable time delay difference between any two can be up to 220ms.
Code rate: 2048Kbps± 50ppm
Connector: BNC for 75Ω and RJ45 for 120Ω
Line code: HDB3
Electric characteristic: Comply with ITU-T G. 703 standard
Jitter index: Comply with ITU-T G. 823 standard
4 Ethernet interface
Fully comply with IEEE802.3
4 Ethernet interfaces with VLAN, comply with IEEE802.1Q
Auto adapt MDI/MDIX
Data rate: 10/100Mbps auto-negotiation
MAC address table capability: 1024
Minimum frame length: 64bytes
Maximum frame length: 1916bytes
Bandwidth: ≈ N× E1(n=0~4)
Default setting: 4× E1 ≈ 7.92Mbps
RS232 hyper terminal or SNMP optional
LINK1~4: 1~4 channel Ethernet indicator light
ALR: General indicator light
L01-L04: E1 spur track alarm indicator for different status
Local/remote: Local or remote alarm option switch
Alarm/mask: Alarm/mask choice switch
DIP SEL switch
SEL1~SEL2: Control L01~L04 indicator contents
SEL3: Loop back control switch
SEL4: VLAN control switch
Voltage: AC220V and DC-48V
Power consumption: Less than 10W
Work temperature: -5° C~50° C
Storage temperature: -40~70° C
Relative humidity: ≤ 95%, non-condensing
