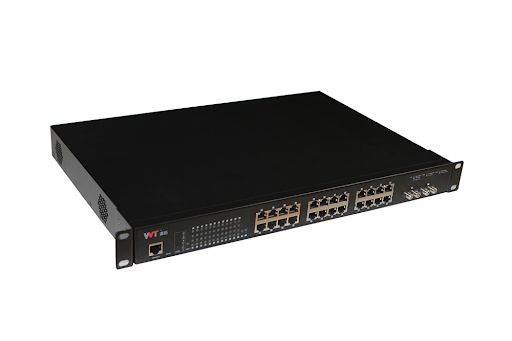

Switch Unmanaged 24x10/100/1000M RJ45 POE AT + 2 Port 10/100/1000M SC 2 sợi quang, 20km, WT-DS-10224G-AT-LP
Features
Support 24pcs RJ45 fast Ethernet ports and 2pcs fiber ports (SC or ST)
Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
Support broadcast storm shield
DC110～220V or AC100～240V 3 bits terminal block power input
No fan, low consumption,EMC-4 grade design
IP30 protection, metal shell
Over voltage protection
All port anti-lighting (6KV)
Supports IEEE 802.3af/IEEE802.3at compliant PoE enabled device
Specifications
Technology
Standard
IEEE802.3、IEEE802.3u、IEEE802.3x
Flow control
IEEE802.3x
MAC address
8K
Interface
RJ45 Ports
10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports
1000Base-FX ports (SC/ST optional)
Console port
RS232, RJ45
LED indicator
PWR、SYS、Link/ACT
PoE
PoE Ports
Port1-24 support POE
PoE Standard
IEEE802.3at (15.4W for each POE port)
PoE Max power
600W
Power
Input power
110~220VDC（100~300VDC）Or100~240VAC（85~264VAC）
Input current
0.25A（@110VAC/VDC）
Connector
3 bits terminal block
Environmental
Operating Temperature
-20~60℃ (wide temperature optional)
Storage Temperature
-40~85℃
Relative Humidity
5%~95%（non-condensing）
Mechanical
Shell
IP30protection, metal case
Installation
19” 1U rack
W×H×D
185mm*134mm*35mm
Approvals
EMI
FCC Part 15，CISPR(EN55022)class
EMS
EN61000-4-2(ESD), Level 3
EN61000-4-3(RS), Level 3
EN61000-4-4(EFT), Level 3
EN61000-4-5(Surge), Level 3
EN61000-4-6(CS), Level 3
EN61000-4-8, 100A/m
EN61000-4-12
Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
After-sales service
Warranty
3 years
10,350,000₫
11,000,000₫
3,900,000₫
4,100,000₫
420,000₫
550,000₫
0₫
5,250,000₫
6,900,000₫
3,200,000₫
