The IMC3100P series Industrial POE Media Converter is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, etc., which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the IMC3100P series can deliver a full 15.4W / 30W of power to the remote device.
The IMC3100P series is designed to extend the distance of a network by converting Giga Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.
The IMC3100P features a 1000Base-FX fiber port and a 10/100/1000Base-T twisted-pair port. The fiber optic port features SC connector and operating distance from 550m to 120km depending on different Model. The twisted-pair port has an RJ-45 connector with a maximum distance of 100m.

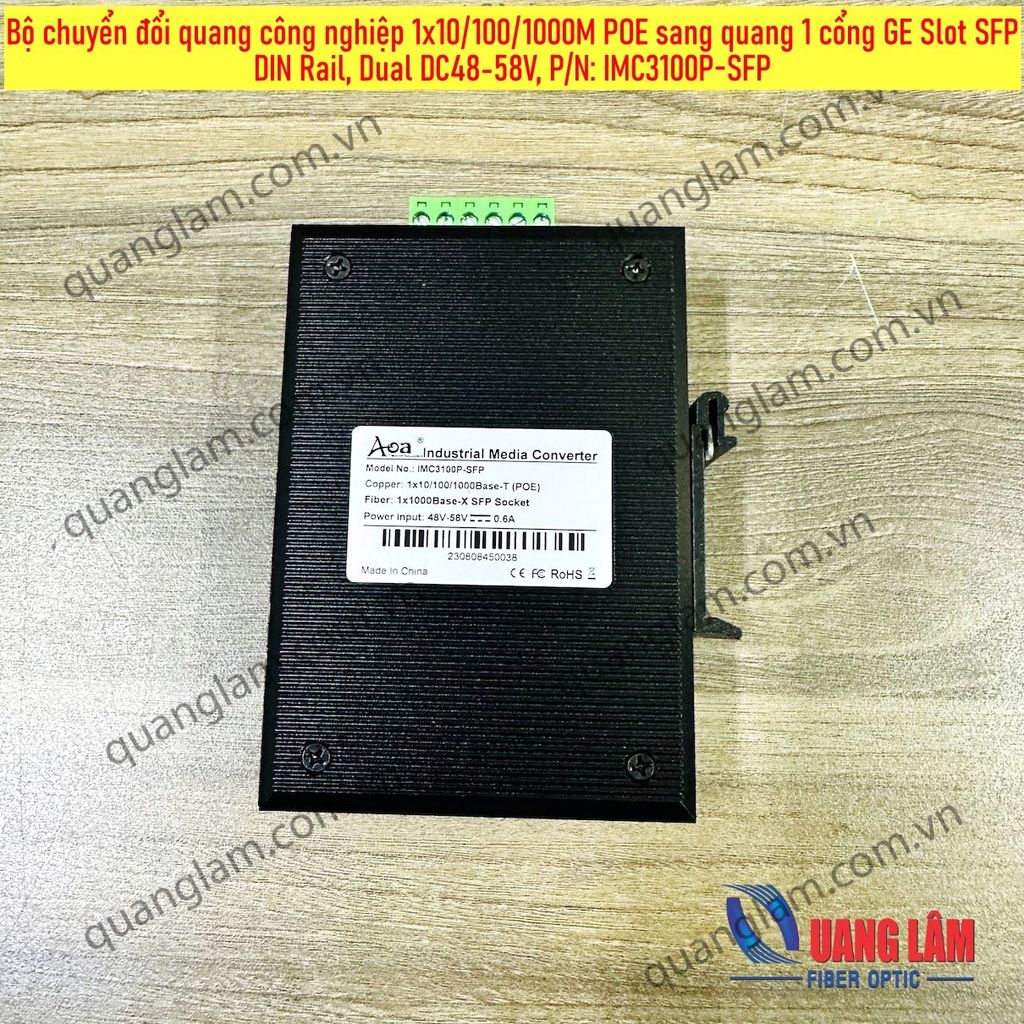

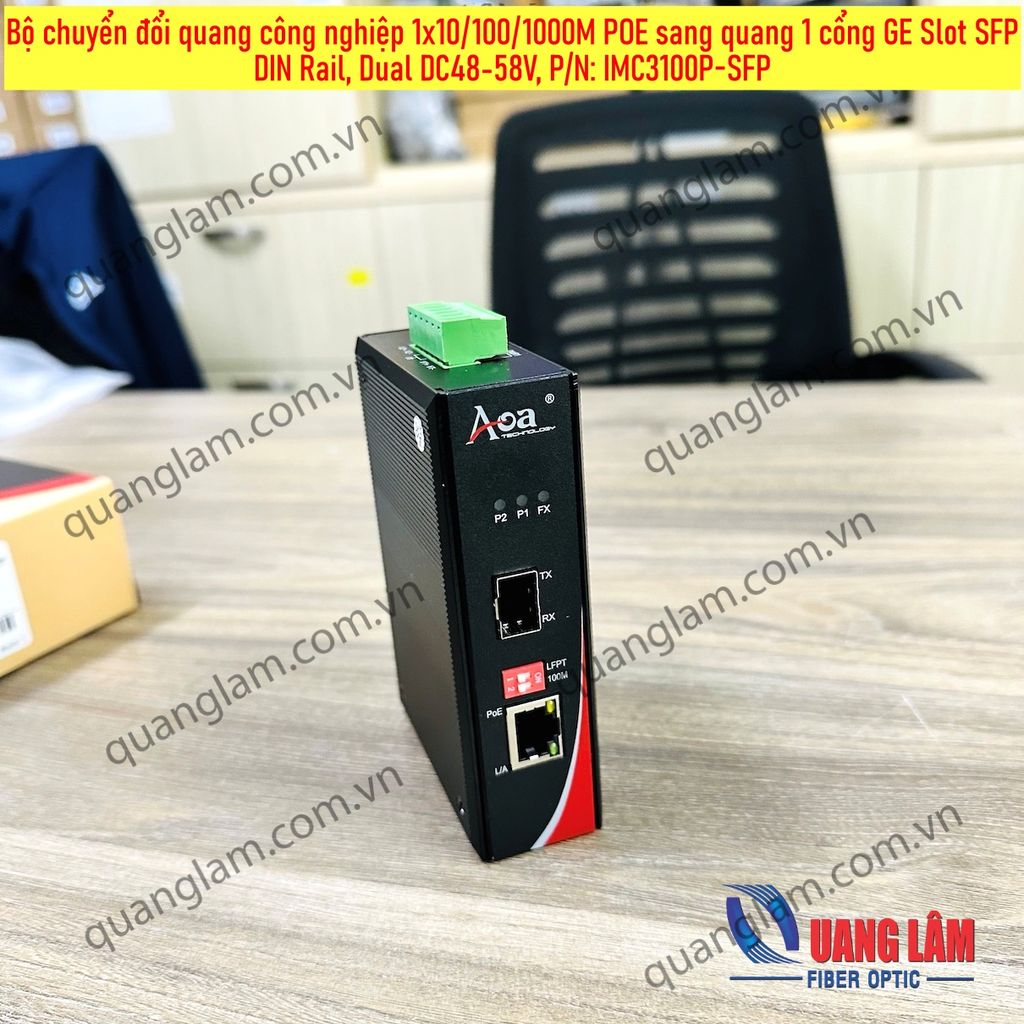

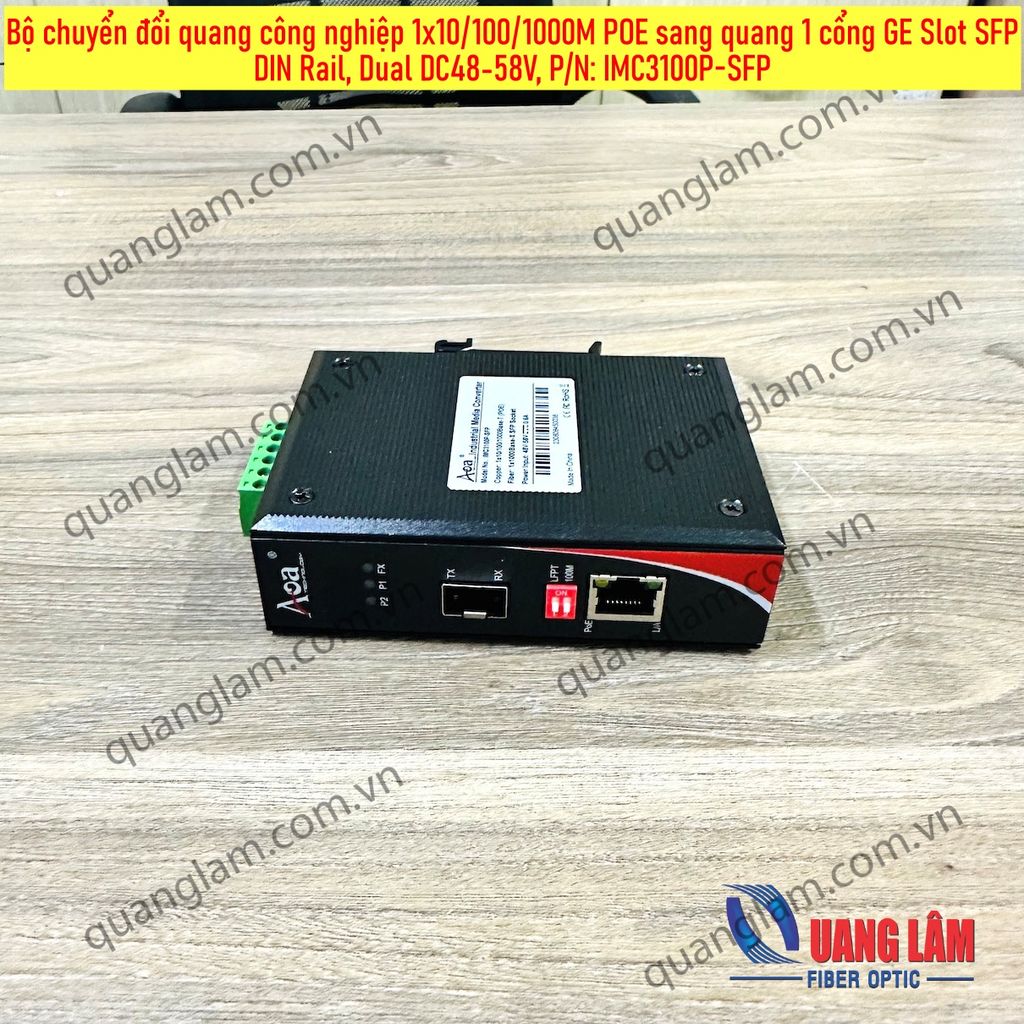

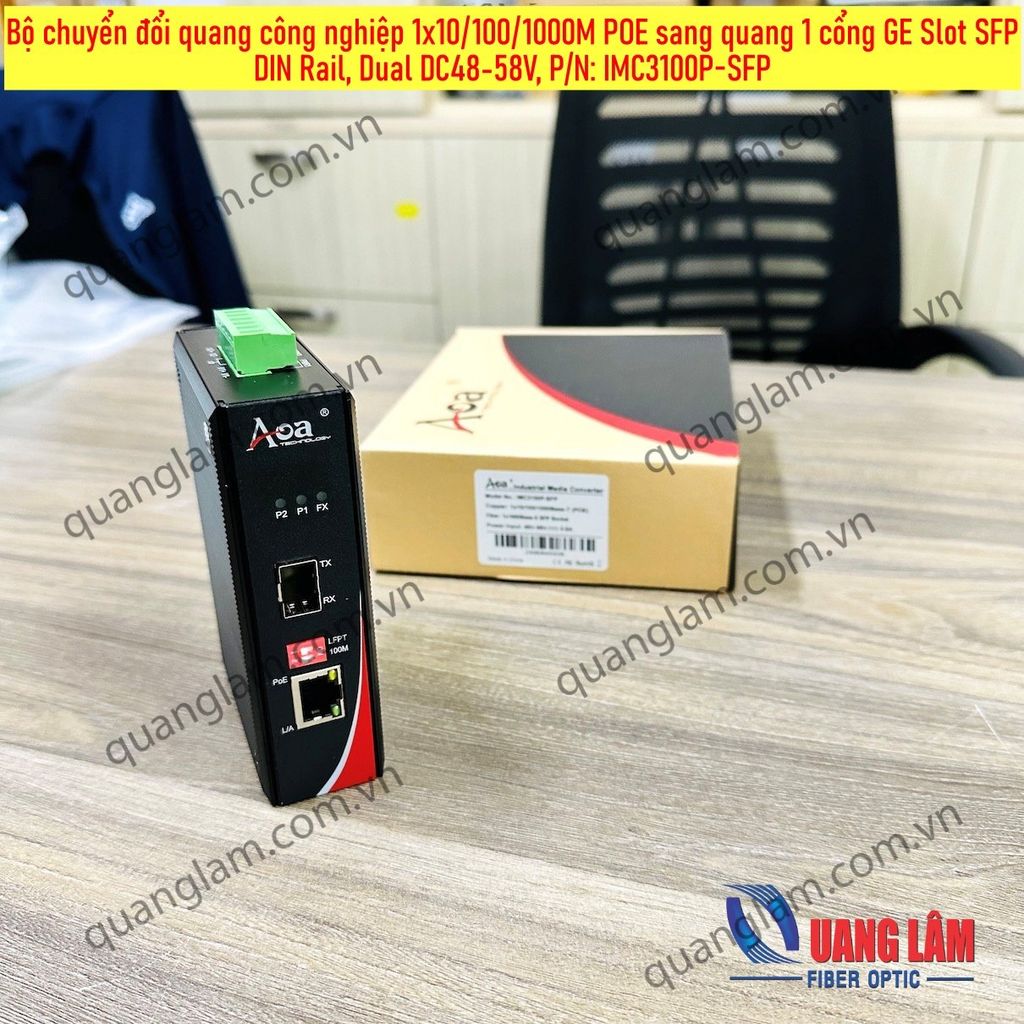

IMC3100P-SFP features a 1000X SFP fiber Port and a 10/100/1000T twisted-pair port. The fiber optic port features a modular SFP slot for any kind of MSA-complaint pluggable 1.25Gbps SFP transceivers.
Many Backbone switch products now support the industry-standard IEEE802.1Q specification for VLANs that send extra-long data packets on the network. The IMC3100P series converters are fully compatible with these long packets, enabling them to be used in modern networks

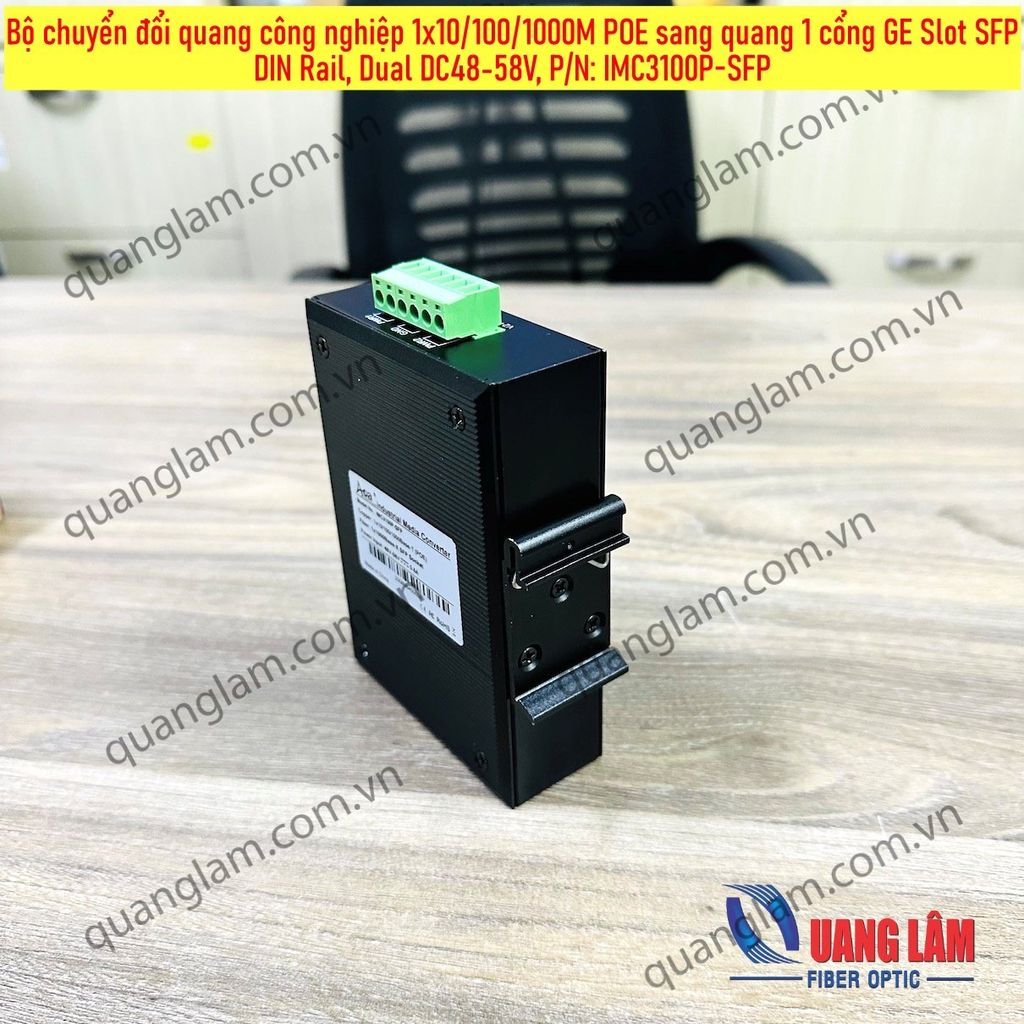

The small size and dual external power supply inputs of the IMC3100P series allows them to be used almost anywhere in harsh environmental conditions. Additionally, they can be installed by DIN-rail or wall-mount, allowing users to deploy any mix of network conversions required.
Features
UTP to fiber media converter
IEEE 802.3af/at complaint
RJ-45 port support auto MDI/MDI-X function
Auto-negotiation speed, half/full-duplex
Store-and-forward switching architecture
Support wide operating temperature (-40 ̊C ~ +85 ̊C)
24%
Mô tả
Item
Industrial POE Media Converter
Series No.
IMC3100P
Description
10/100/1000Base-T with POE to 1000Base-FX
Hãng sản xuất: AOA Technology
The IMC3100P series Industrial POE Media Converter is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, etc., which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the IMC3100P series can deliver a full 15.4W / 30W of power to the remote device.
The IMC3100P series is designed to extend the distance of a network by converting Giga Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.
The IMC3100P features a 1000Base-FX fiber port and a 10/100/1000Base-T twisted-pair port. The fiber optic port features SC connector and operating distance from 550m to 120km depending on different Model. The twisted-pair port has an RJ-45 connector with a maximum distance of 100m.
IMC3100P-SFP features a 1000X SFP fiber Port and a 10/100/1000T twisted-pair port. The fiber optic port features a modular SFP slot for any kind of MSA-complaint pluggable 1.25Gbps SFP transceivers.
Many Backbone switch products now support the industry-standard IEEE802.1Q specification for VLANs that send extra-long data packets on the network. The IMC3100P series converters are fully compatible with these long packets, enabling them to be used in modern networks
The small size and dual external power supply inputs of the IMC3100P series allows them to be used almost anywhere in harsh environmental conditions. Additionally, they can be installed by DIN-rail or wall-mount, allowing users to deploy any mix of network conversions required.
Features
UTP to fiber media converter
IEEE 802.3af/at complaint
RJ-45 port support auto MDI/MDI-X function
Auto-negotiation speed, half/full-duplex
Store-and-forward switching architecture
Support wide operating temperature (-40 ̊C ~ +85 ̊C)
Wide-range redundant power design ( 12~56VDC )
Power polarity reverse protect
Overload current resettable fuse present
IP-40 protection
Provide EFT protection for Power line
Support Ethernet ESD protection
DIN-Rail and Wall- Mounted Installation
