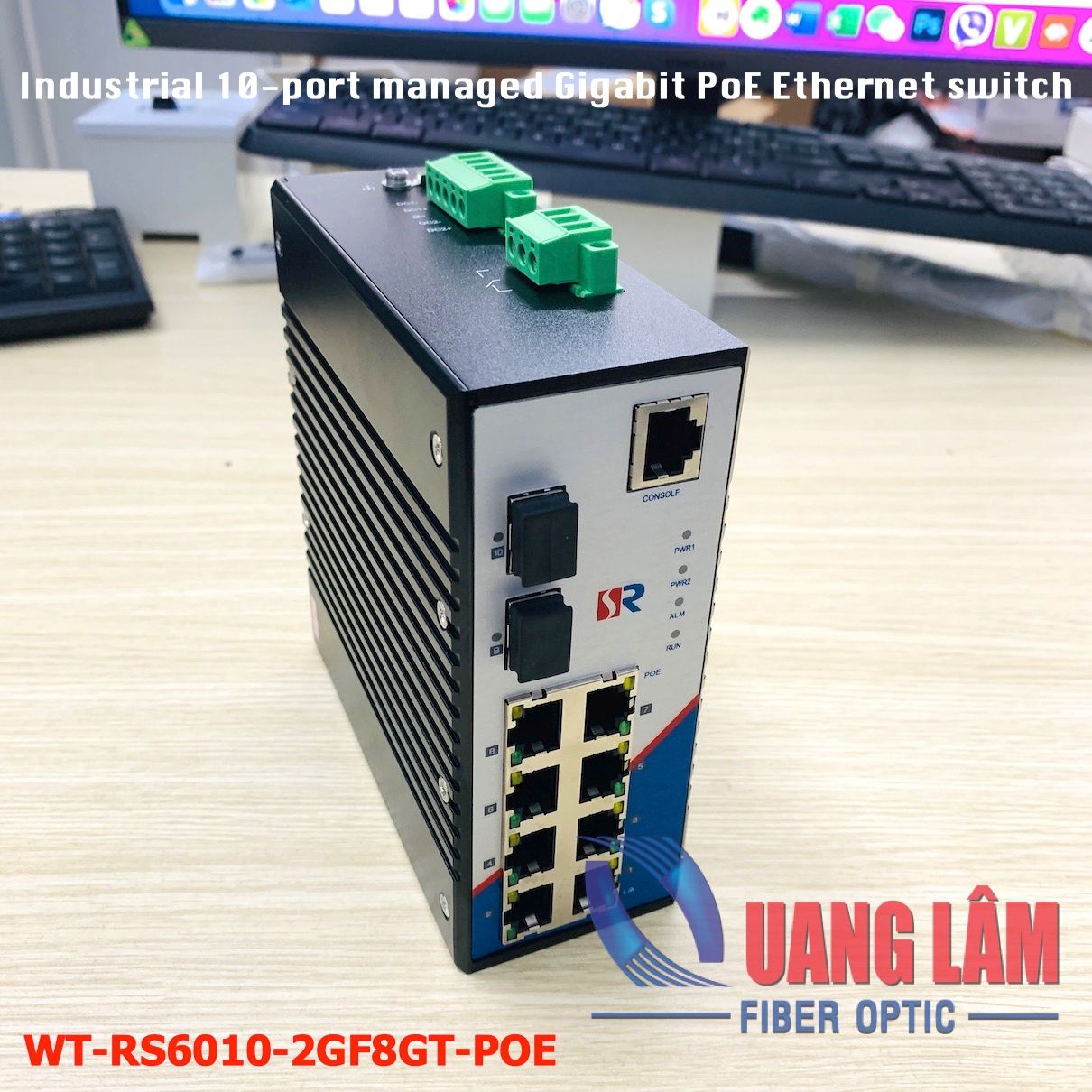

Industrial 10-port managed Gigabit PoE Ethernet switch with 8×10/100/1000BaseT-(X) P.S.E. ports and 2×1000Base-X (SFP socket)

• 2× 1000BaseF(X) +8×10/100/1000BaseT(X) PoE(P.S.E.)
• Supports auto-negotiation and auto- MDI/MDIX
• Support P.S.E. based on IEEE802.3at standard up to 30Watts per port
• Support PoE scheduled configuration and PoE auto-ping check function
• Command line(CLI) + WEB via Serial port RS232 (RJ45 Console Port)
• Support WT-Ring(recovery time < 50 ms) and STP/RSTP/MSTP
• SNMP V1/V2c/V3，support WT2000 web management

Standards

IEEE 802.3 10BaseT and IEEE 802.3u 100BaseT / IEEE 802.3ab  1000BaseT and IEEE 802.3z 1000BaseFX

IEEE 802.3x  / IEEE 802.1d-2004 STP / IEEE 802.1w RSTP / IEEE 802.1s RSTP / IEEE 802.1p Cos

IEEE 802.1q VLAN / IEEE 802.3af/802.3at POE

Agreement

IGMP Snooping, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP,HTTPS, SSH,Telnet, Syslog, LLDP, LACP, DHCP Client, EtherNet/IP, Modbus/TCP

MIB: MIB-II, BRIDGE MIB, MIB,IF MIB,RMON MIB Group 1, 2, 3, 9

Switch Property

Qos line : 4 / VLAN : 1-4094 / VLAN-ID : 64 / Switching bandwidth : 20Gbps

Packet Buffer Size : 3Mb/ MAC Table size : 8K / Jumbo Frame Size : 9.6K Bytes

Input Voltage:  2 redundant backup，DC 46~75V

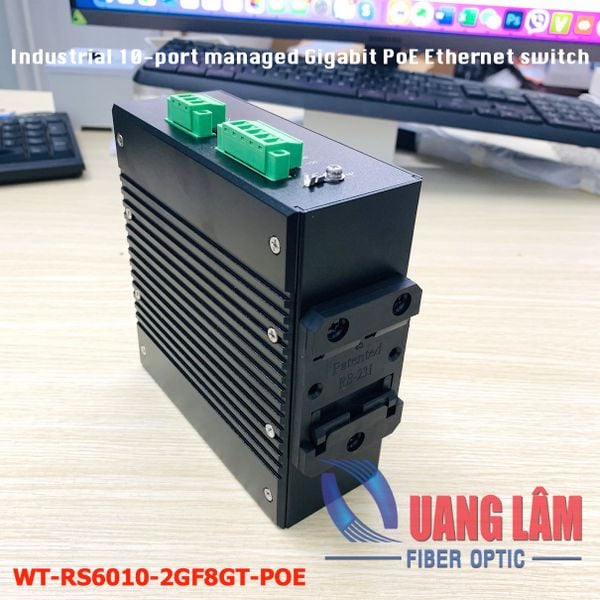

Installation : DIN-rail mounting / Environment: Operating Temperature：-40 ~ 85 ℃ ( - 40 ~ 185 °F)

EMI: FCC Part 15/CISPR22（EN55022）：Class A / EMS: IEC61000-4-2  (ESD)  4，IEC 61000-4-3  (RS)  3，IEC 61000-4-4  (EFT)  4， IEC 61000-4-5  (Surge) 4，IEC 61000-4-6  (CS) 3

Vibration : IEC 60068-2-6 / Shock : IEC 60068-2-27 / Freefall : IEC 60068-2-32 / MTBF :500000 h

Warranty : 5 years
