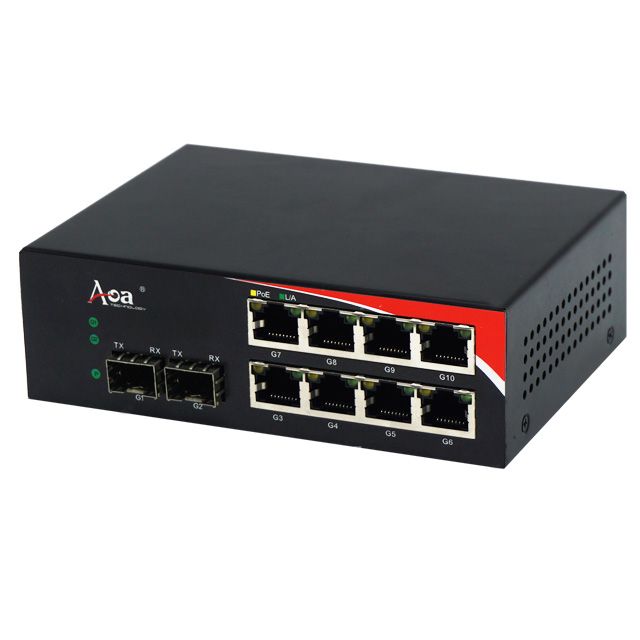

AES3208P is 8 Port PoE 10/100/1000M Fiber Switch provide 8 Port PoE (Power over Ethernet) which compliance with IEEE802.3af & IEEE802.3at standard; Let you simply connect IP camera / IP phone / Wireless AP at remote site where AC or DC power unavailable.
AES3208P also provide two Fiber Port can transmit data 0~120km from device to control center.
FEATURES
8*RJ45 ports and 2*SFP sockets, convert Optical-Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports
24%
Mô tả
AES3208P is 8 Port PoE 10/100/1000M Fiber Switch provide 8 Port PoE (Power over Ethernet) which compliance with IEEE802.3af & IEEE802.3at standard; Let you simply connect IP camera / IP phone / Wireless AP at remote site where AC or DC power unavailable.
AES3208P also provide two Fiber Port can transmit data 0~120km from device to control center.
FEATURES
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE802.3x Flow control and back pressure
IEEE802.1d Spanning Tree
IEEE802.3af/at POE
Back Bandwidth: 20Gbps
MAC Address Size: 16Kbit
Packet Buffer Size: 2Mbit
Time Delay: <10usFrame: 10kbytes
Connector: RJ45 x 8
Distance: 100m
Connector: SFP slot x 2
Distance: Up to SFP Transceivers
PWR2: ON= Power Connected
FL/A: ON=Fiber Connected; Active=Data Transmitting
TL/A: ON=Copper Connected; Active= Data Transmitting
Power Consumption: ≤8W
PoE Budget: 15.4Wx8=123W(PoE) 30Wx8=240W(PoE+)
Protection: Overload Current; Reverse Polarity
Connector: Terminal Block
Storage Temperature: -40~85ºC
Relative Humidity: 5-95% (no condensation)
Dimension: 140*103*45mm
Weight: 0.74
