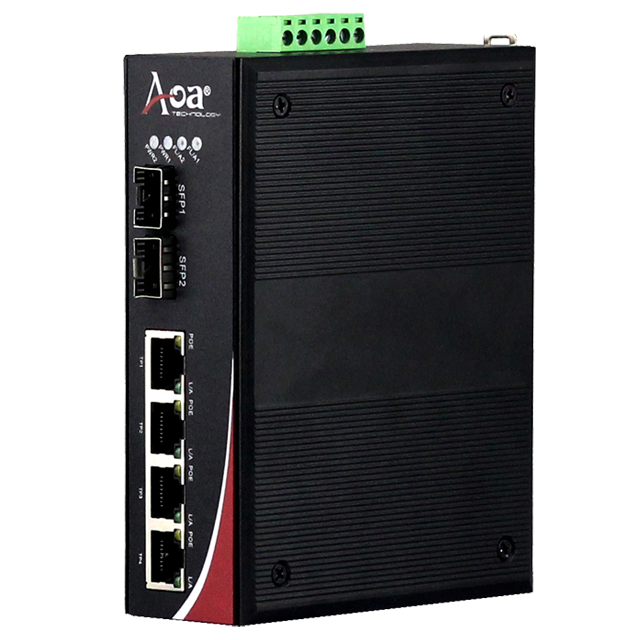

Switch công nghiệp 4x10/100/1000M RJ45 sang quang 2 cổng GE Slot SFP, P/N: IES3204-SFP
Description of thisIES3204 SFP Hot Sale Industrial Gigabit Ethernet Switch
Item
Industrial Gigabit Ethernet Switch
Model No.
IES3204-SFP
Description
4 x 10/100/1000Base-T to 2 x 1000Base-X
Overview
The IES3204-SFP is a high performance and cost-effective industrial un-managed switch that meets the high reliability requirements of industrial network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.
The IES3204-SFP features 2x 1000Base-X SFP Slot and 4 x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G SFP Transceivers, the twisted-pair port has 4 x RJ-45 connector with a maximum operating distance of 100m.
The IES3204-SFP Industrial Gigabit Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrial automation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.
The IES3204-SFP series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.
Many Backbone switch products now support the industry-standard IEEE802.1Q specification for VLANs that send extra-long data packets on the network. The IFS3402 series switches are fully compatible with these long packets, enabling them to be used in modern networks.
Features
Provide 4 x 10/100/1000Base-T
2 x 1000Base-X SFP Slot for Daisy-Chain
RJ45 support auto MDI/MDI-X function
Auto-negotiation speed, half/full-duplex
Store-and-forward
Max packet size: 10K bytes
Support wide operating temperature (-40 ˚C ~ +85 ˚C)
Wide-range redundant power design (12~56VDC)
Power polarity reverse protect
Overload current resettable fuse present
IP-40 protection
Provides EFT protection for Power line
Support Ethernet ESD protection
DIN-Rail and Wall-Mounted Installation
Low power consumption
Structure
Applications
Parameterof thisIES3204 SFP Hot Sale Industrial Gigabit Ethernet Switch
Mô tả
Switch công nghiệp 4x10/100/1000M RJ45 sang quang 2 cổng GE Slot SFP, P/N: IES3204-SFP
Item
Industrial Gigabit Ethernet Switch
Model No.
IES3204-SFP
Description
4 x 10/100/1000Base-T to 2 x 1000Base-X
The IES3204-SFP is a high performance and cost-effective industrial un-managed switch that meets the high reliability requirements of industrial network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.
The IES3204-SFP features 2x 1000Base-X SFP Slot and 4 x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G SFP Transceivers, the twisted-pair port has 4 x RJ-45 connector with a maximum operating distance of 100m.
The IES3204-SFP Industrial Gigabit Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrial automation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.
The IES3204-SFP series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.
Many Backbone switch products now support the industry-standard IEEE802.1Q specification for VLANs that send extra-long data packets on the network. The IFS3402 series switches are fully compatible with these long packets, enabling them to be used in modern networks.
Features
Structure
Applications
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE802.3x Flow control and back pressure
IEEE802.1d Spanning Tree
Performance
Processing Type : Store and Forward
Back Bandwidth: 12Gbps
MAC Address Size: 1Kbit
Packet Buffer Size: 1Mbit
Time Delay: <10us
Frame: 10Kbytes
Copper Port
Data Rate: 10/100/1000M
Connector: RJ45 x 4
Distance: 100m
Fiber Port
Data Rate: 1.25G
Connector: SFP slot x 2
Distance: Up to SFP Transceivers
LED indicators
PWR1: ON=Power Connected
PWR2: ON= Power Connected
FL/A: ON=Fiber Connected; Active=Data Transmitting
TL/A: ON=Copper Connected; Active= Data Transmitting
Power
Input Voltage: 12~56 VDC, redundant power inputs
Power Consumption: ≤7W
Protection: Overload Current; Reverse Polarity
Connector: Terminal Block
Environment
Operating Temperature: -40 ˚C ~ +85 ˚C
Storage Temperature: -40 ˚C ~ +95 ˚C
Relative Humidity: 5-95% (no condensation)
Physical Characteristics
Housing: IP40 Protection, Aluminum Alloy
Installation: DIN-rail mounting, wall mounting(with optional kit)
Dimension: 138*107*45mm(device); 220*175*73mm(packing)
Weight: 0.48kg(device); 0.63kg(device with packing)
EMC
CE
EMI
FCC Part 15 CLASS A
EMS
IEC 61000-4-2 Level 4 (8K/15K)
IEC 61000-4-3 Level 3 (10V/m)
IEC 61000-4-4 Level 3 (1V/2V)
IEC 61000-4-5 Level 3 (4KV/2KV)
IEC 61000-4-6 Level 3 (10V/m)
IEC 61000-4-8 Level 4 (30A/m)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32 0.5m
Vibration
IEC 60068-2-6
Railway Traffic
EN50121-4
Model No.
Description
IES3204-SFP
10/100/1000M 2GX4GE, SFP Slot
Note:
1. Power supply provided by user or ordered additionally
