• 4-Pair power up to 90W

• IEEE 802.3bt compliant - higher power

• compatible with all IEEE 802.3at, 802.3af and legacy
power supply devices

• safety: low power devices only receive the required
power, and 2 pairs of PDS receive power through 2 pairs

• Ethernet power supply is safe and reliable

• automatic detection and protection of non-standard
Ethernet terminals

• support for 10/100/1000baset applications

• compact design for easy installation of WLAN access

Specifications

Standard: IEEE802.3af/at/bt

Number of ports: 1

Passing data rate: 10/100/1000 Mbps

Pin assignment and polarity: 1,2,4,5(+)/3,6,7,8(-)

Output power supply voltage: 52-56vdc

User port power: maximum 90W

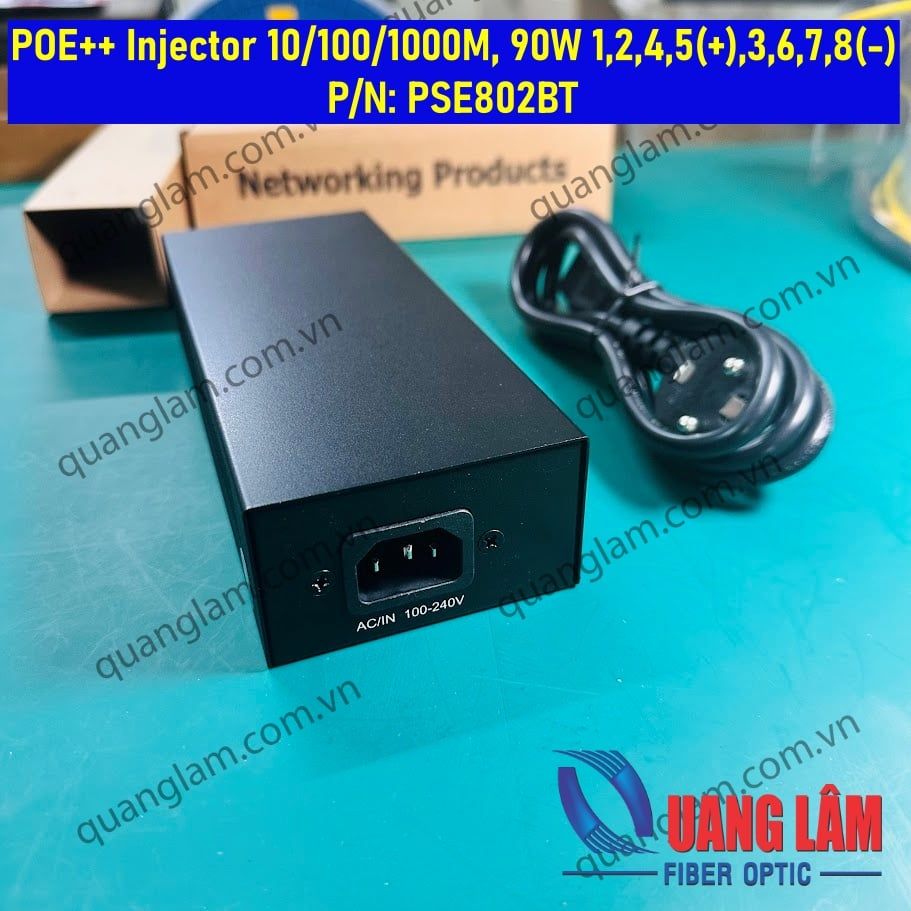

AC input voltage: 100 to 240 VAC

AC input current: 1.6A@100 -240 Vac

AC frequency: 50 to 60 Hz

Bare metal size: 188 *78* 44 mm

Package size: 210*125*55mm

Weight 0.5kg

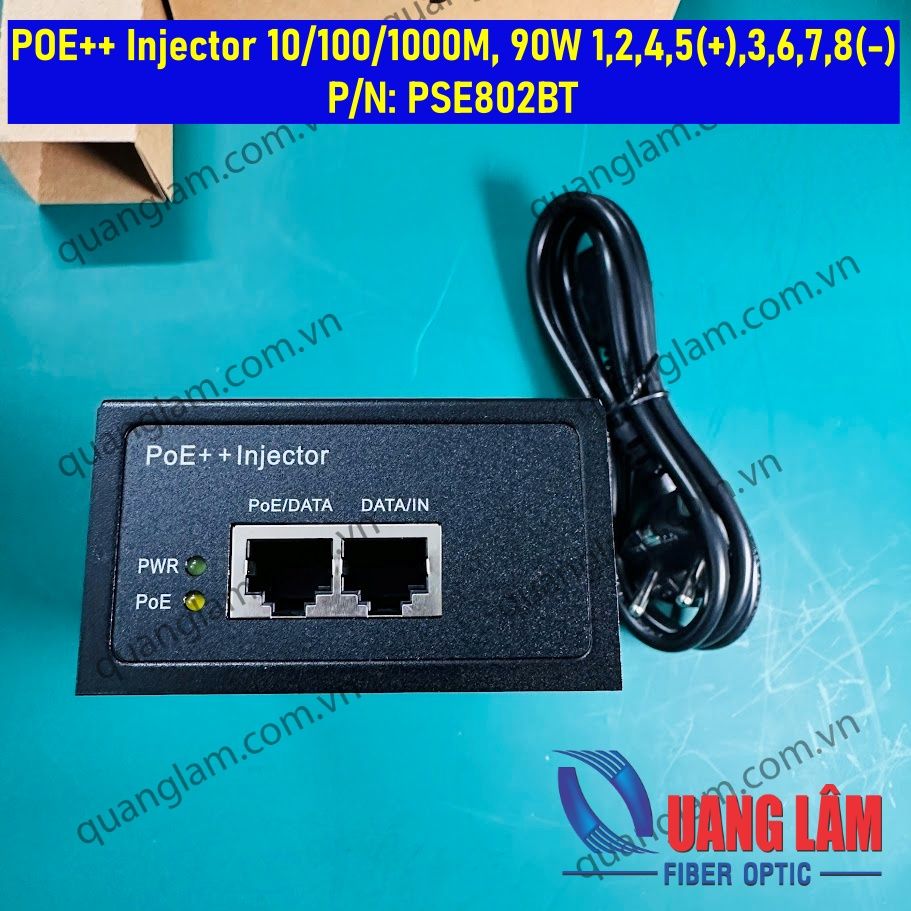

Indicator: AC power (green) POE (yellow)

Connectors: shielded RJ-45, EIA 568a and 568B

Installation structure: wall mounted

Operating temperature: -20 ° - 50 ° C

Storage temperature: -40 ° - 85 ° C

Storage humidity: maximum 95%, non condensing

RoHS, CE, FCC compliant
