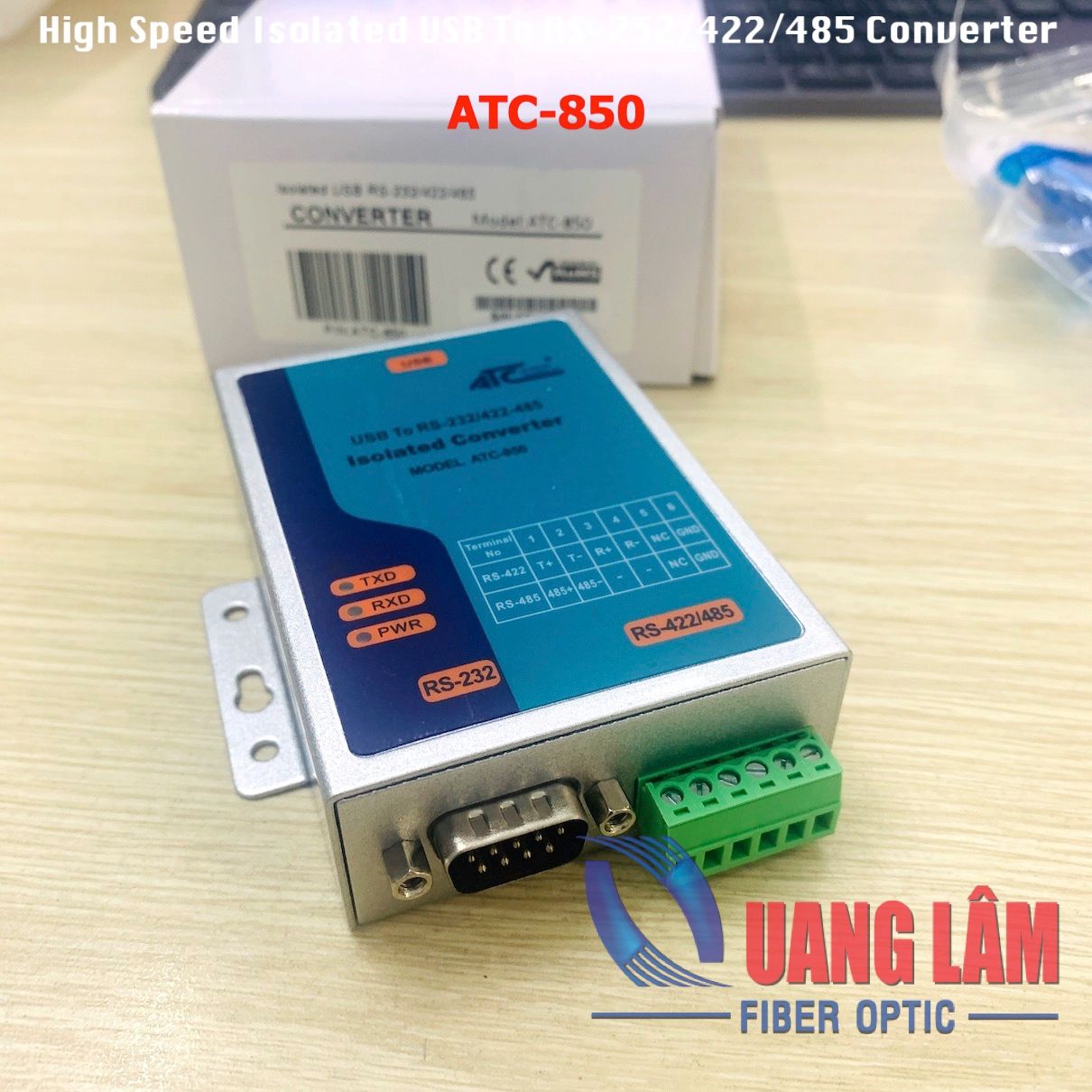

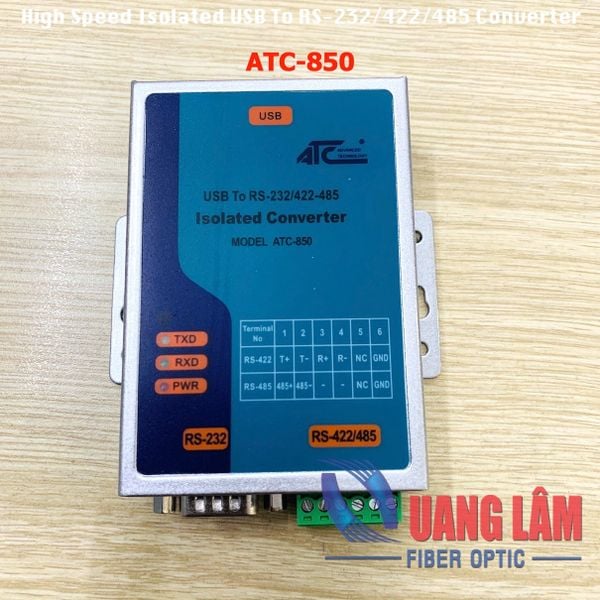

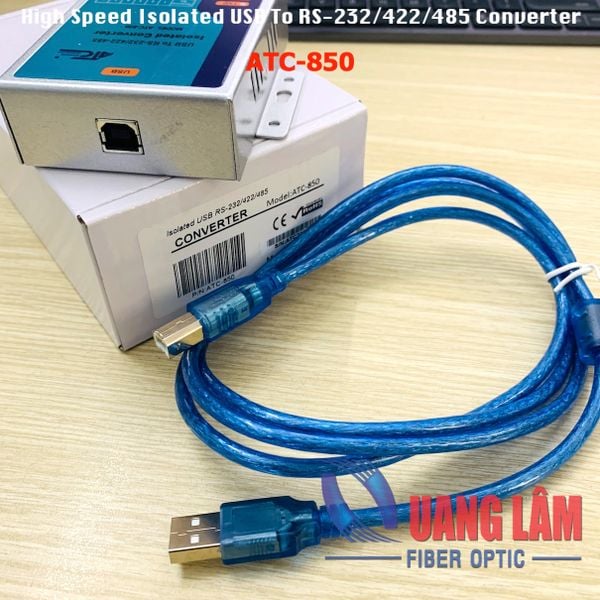

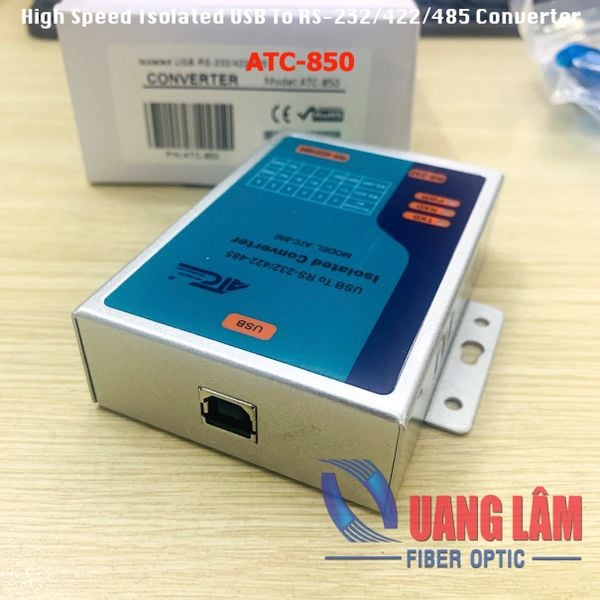

High Speed Isolated USB To RS-232/422/485 Converter ATC-850
The ATC-850 module is a cost-effective way to convert RS485 industrial buses to a USB interface. When connected to a PC USB port the ATC-850 module is automatically detected and is installed as a native COM port which is compatible with any existing serial communication application. They have 600W protect between the USB port and RS-232 /422/485 protects. The ATC-850 has a 384 byte receive buffer with an adjustable timeout and a 128 byte transmit buffer with auto-transmit control. The ATC-850 makes it easier to add RS485 devices to your system with easy plug-and-play.
Use chip FTDI industry in pieces Compatible with USB1.1, 2.0, the maximum rate can be up to 12 MBPS Virtual port application and driver installation pieces support system Mixer serial transmission speed can reach 921.6 KBPS Mixer three signal lamp TXD, RXD, PWRS Mixer supports Windows 98 / ME / 2000 / XP / / 7/8 / 10 / CE/Vista, MAC and Linux 2.4.20 Static mixer interface protection, signal lightning surge protection
USB
Interface standards
Compatible USB1.0/1.1, 2.0, plug and play
The interface type
The USB type A mouth
speed
Full speed USB 12 MBPS
A serial port
The interface type
5,6,7,8,DB9 male head, six terminals
Data bits
5,6,7,8
Stop bit
1,1.5,2
parity bit
None, Even, Odd, Space, Mark
Flow control
RTS/CTS, XON/XOFF
I/O address
The BIOS specified
IRQ
The BIOS specified
FIFO
64 bytes
The interface protection
All interface 15 kv esd protection
The isolation voltage
3500 VRMS 500 VDC isolation voltage continuously
The other parameters
Using the environment
- 20 ℃ to 70 ℃.Relative humidity of 10% to 90%
Product appearance
Support the standard DIN rail, and installation fixed easily, Metal shell, anti-static, anti-interference. 100 mmx86mmx26mm
RS - 232 signal
Way to work
Full duplex
RS-232
TXD, RXD, RTS, CTS, GND
The communication rate
RS-232 300-460.8kbps
To protect the
The RS - 232 interface 600 w lightning surge protection
RS-422/485
RS-422
T+,T-,R+,R- RS-485:485+,485-
manner of working
Full duplex RS - 422, RS - 485 adaptive traffic control half duplexRS - 485 communication: support
RS - 485 most nodes is 32, RS - 485 communication longest distance of 1200 meters
RS-485
RS-422/485 300-921.6kbps
traffic rate
The RS - 422 / RS - 485 interface 1000 w per line lightning surge protection
9%
Mô tả
Compatible with USB1.1, 2.0, the maximum rate can be up to 12 MBPS
Virtual port application and driver installation pieces support system
Mixer serial transmission speed can reach 921.6 KBPS
Mixer three signal lamp TXD, RXD, PWRS
Mixer supports Windows 98 / ME / 2000 / XP / / 7/8 / 10 / CE/Vista, MAC and Linux 2.4.20
Static mixer interface protection, signal lightning surge protection
Metal shell, anti-static, anti-interference.
100 mmx86mmx26mm
Full duplex RS - 422, RS - 485 adaptive traffic control half duplexRS - 485 communication: support
RS - 485 most nodes is 32, RS - 485 communication longest distance of 1200 meters
