The media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the transmission distance to several kilometer or hundred kilometer. Using media converter is a economical solution to achieve long distance transmission base on current status.
FEATURES
1.Built in a 2-port switch: --Pass all packets without address and CRC check (optional); --Supports modified cut-through frame forwarding for low latency; --Supports pure converter mode data forwarding for extreme low latency; --Supports flow control for full and halt duplex operation; --Bandwidth control; --Forward 1600 bytes packet for management; --Optional forward fragments.
2. Supports 100Base-FX standard; 3.Built in 128Kb RAM for data buffer; 4.Supports auto MDI-MDIX function; 5. Supports link fault pass through function (LFP); 6. Supports for end fault function (optional); 7. LED display for link/activity, full/half, 10/100M 8. Support EEPROM configuration (optional); 9. the longest transmission distance reach 120 kilometers;
STANDARD
IEEE802.3 ETHERNET STANDARD IEEE802.3u FAST ETHERNET STANDARD
10/100M Fast Ethernet Media Converter 1 FX port & 2 RJ45 ports
10/100M1310nm dual fiber 1*9 MM 2Km
WT-8110MA-12-2
10/100M 1310nm dual fiber 1*9 SM 20Km
WT-8110SA-12-20
10/100M 1310nm dual fiber 1*9 SM 40Km
WT-8110SA-12-40
10/100M 1310nm dual fiber 1*9 SM 60Km
WT-8110SA-12-60
10/100M 1*9 1550nm DFB dual fiber 1*9 80Km
WT-8110SA-12-80
10/100M 1*9 1550nm DFB dual fiber 1*9 100Km
WT-8110SA-12-100
10/100M 1*9 1550nm DFB dual fiber 1*9 120Km with APD
Mô tả
GENERAL DESCRIPTION
The media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the transmission distance to several kilometer or hundred kilometer.
Using media converter is a economical solution to achieve long distance transmission base on current status.
FEATURES
1.Built in a 2-port switch:
--Pass all packets without address and CRC check (optional);
--Supports modified cut-through frame forwarding for low latency;
--Supports pure converter mode data forwarding for extreme low latency;
--Supports flow control for full and halt duplex operation;
--Bandwidth control;
--Forward 1600 bytes packet for management;
--Optional forward fragments.
2. Supports 100Base-FX standard;
3.Built in 128Kb RAM for data buffer;
4.Supports auto MDI-MDIX function;
5. Supports link fault pass through function (LFP);
6. Supports for end fault function (optional);
7. LED display for link/activity, full/half, 10/100M
8. Support EEPROM configuration (optional);
9. the longest transmission distance reach 120 kilometers;
STANDARD
IEEE802.3 ETHERNET STANDARD
IEEE802.3u FAST ETHERNET STANDARD

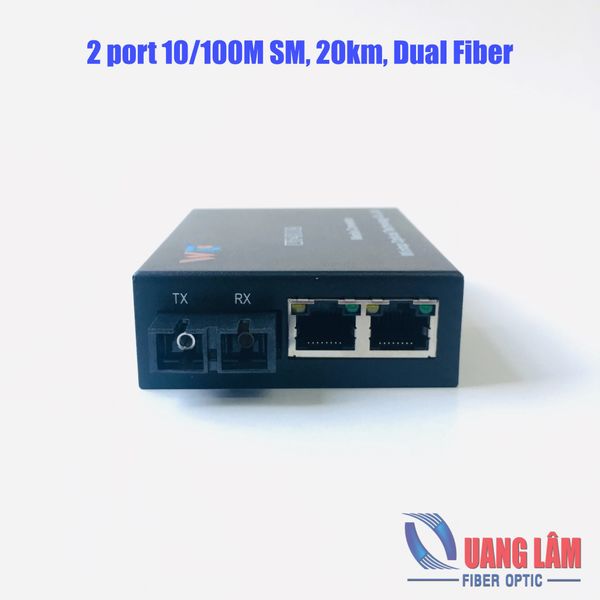

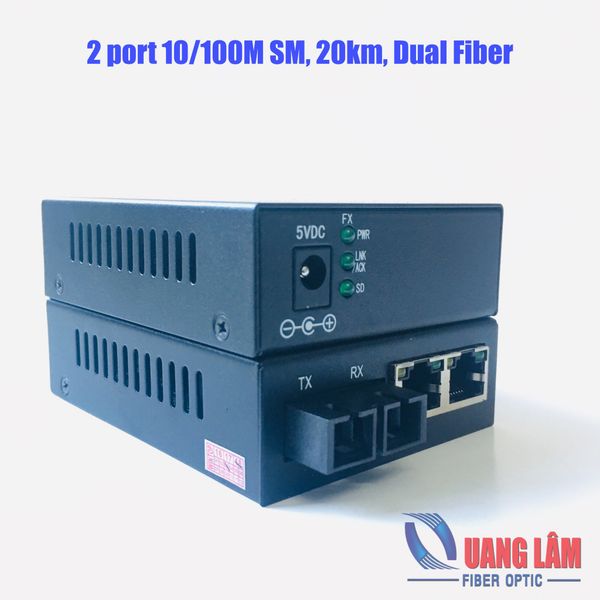

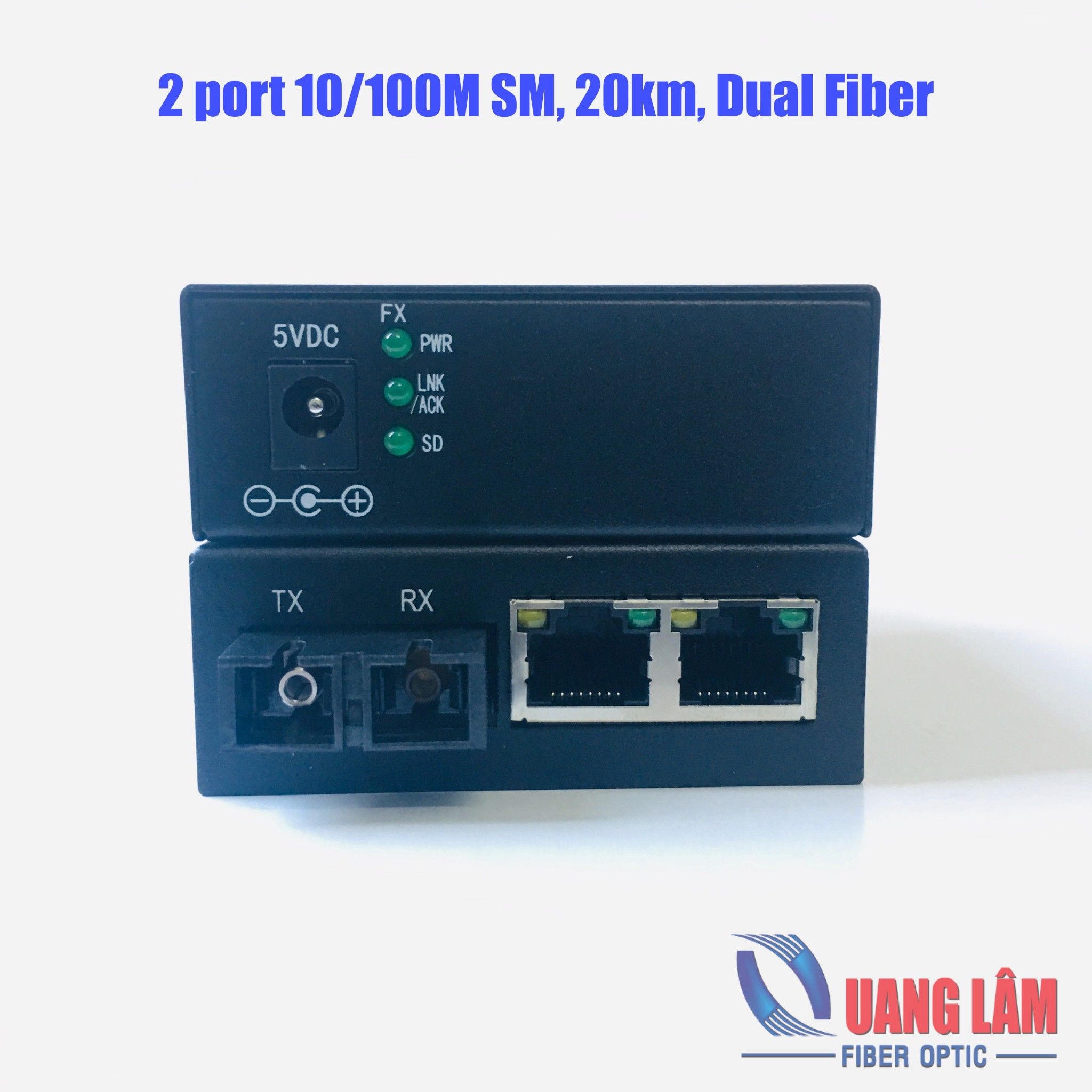

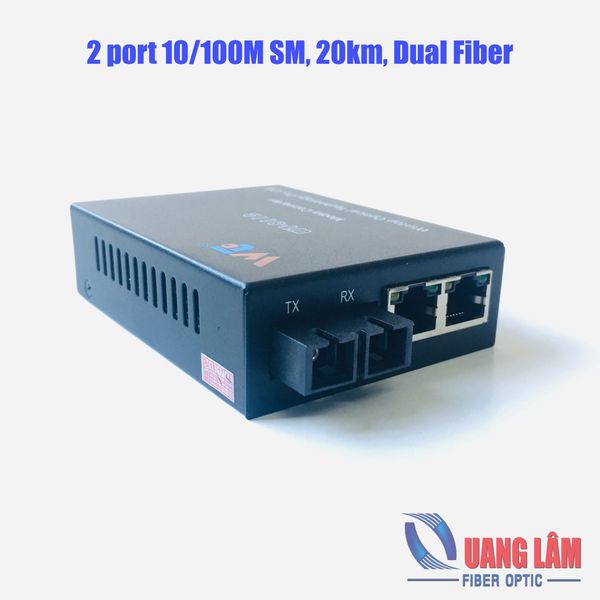

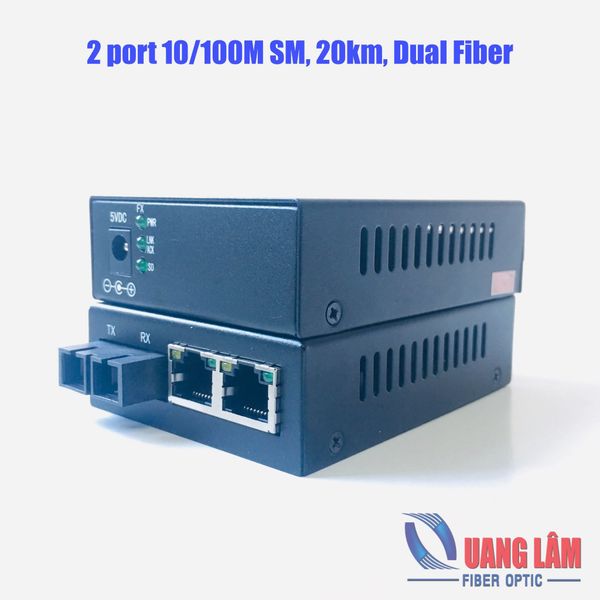

10/100M Fast Ethernet Media Converter 1 FX port & 2 RJ45 ports
10/100M1310nm dual fiber 1*9 MM 2Km
WT-8110MA-12-2
10/100M 1310nm dual fiber 1*9 SM 20Km
WT-8110SA-12-20
10/100M 1310nm dual fiber 1*9 SM 40Km
WT-8110SA-12-40
10/100M 1310nm dual fiber 1*9 SM 60Km
WT-8110SA-12-60
10/100M 1*9 1550nm DFB dual fiber 1*9 80Km
WT-8110SA-12-80
10/100M 1*9 1550nm DFB dual fiber 1*9 100Km
WT-8110SA-12-100
10/100M 1*9 1550nm DFB dual fiber 1*9 120Km with APD
WT-8110SA-12-120
10/100M 1*9 BiDi SM 20Km TX1310/RX1550nm
WT-8110SB-12-20A
10/100M 1*9 BiDi SM 20Km TX1550/RX1310nm
WT-8110SB-12-20B
10/100M 1*9 BiDi SM 40Km TX1310/RX1550nm
WT-8110SB-12-40A
10/100M 1*9 BiDi SM 40Km TX1550/RX1310nm
WT-8110SB-12-40B
10/100M 1*9 BiDi SM 60KM TX1310/RX1550nm
WT-8110SB-12-60A
10/100M 1*9 BiDi SM 60Km TX1550/RX1310nm
WT-8110SB-12-60B
10/100M 1*9 BiDi SM 80KM TX1310/RX1550nm
WT-8110SB-12-80A
10/100M 1*9 BiDi SM 80Km TX1550/RX1310nm
WT-8110SB-12-80B
