The LNK-IP1200A Ethernet over Coaxial Converter is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 1200M(Power: 300M). 2pc BNC design, support connect 2 channel branch line at same time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference. Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can make the device intelligent detect circuit individually, all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. Guarantee the security of surveillance zone. These series products are widely used in CCTV surveillance and remote network extension.
Features
► Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m
Mô tả
Bộ chuyển đổi Ethernet sang cáp đồng trục IP1200A
(Ethernet over Coax)
Overview

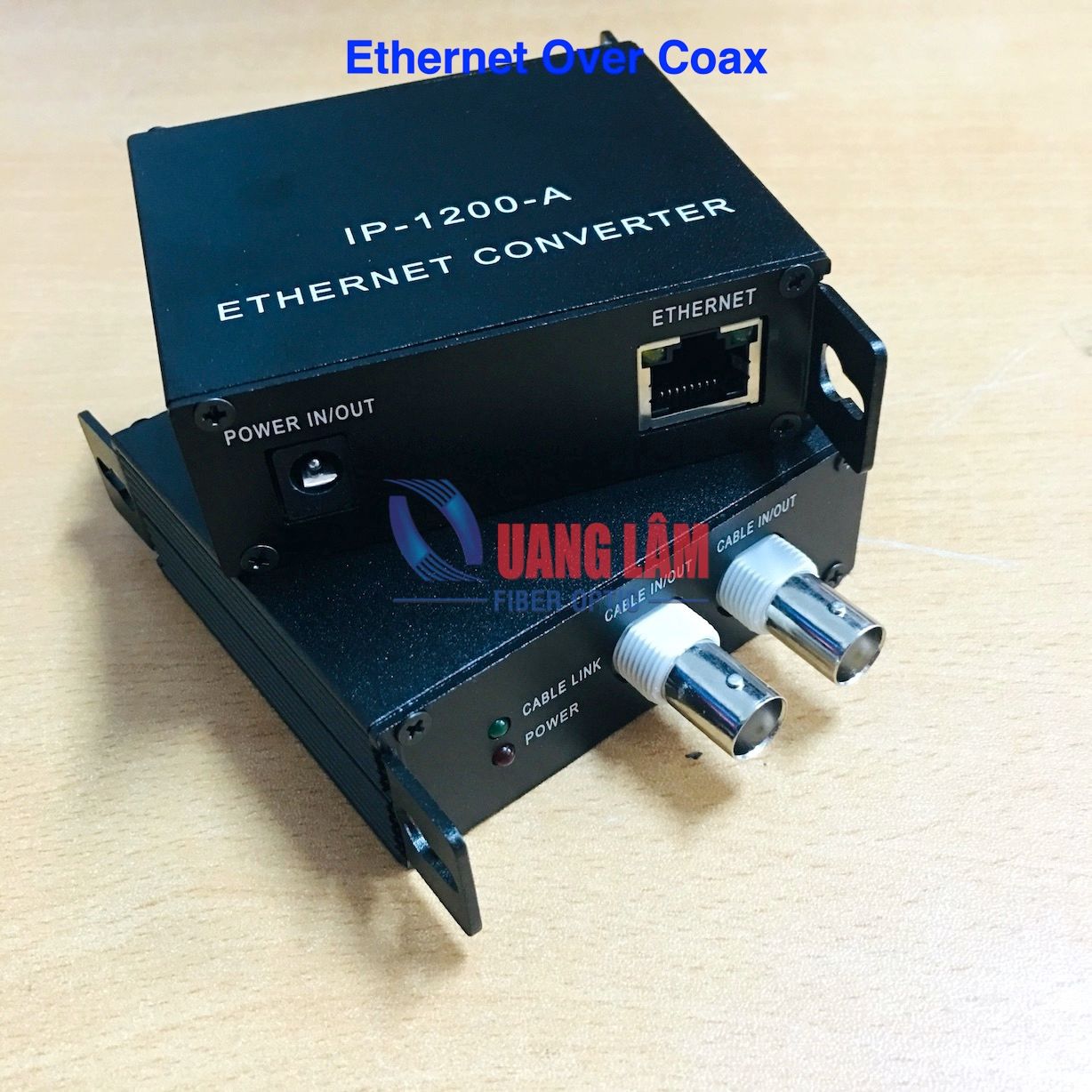

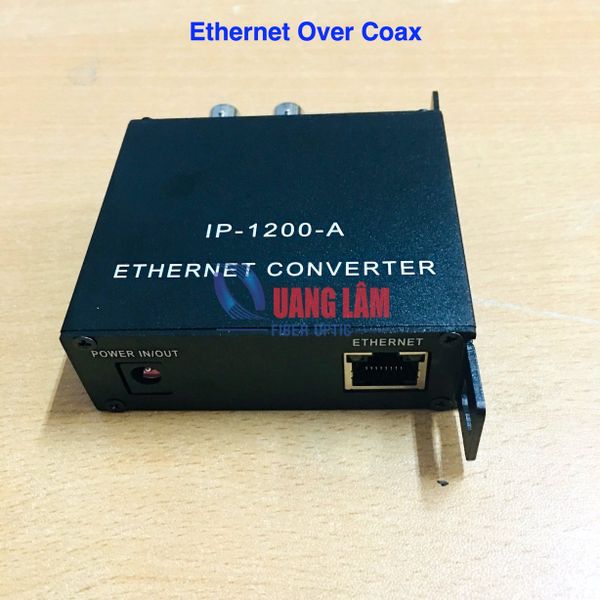

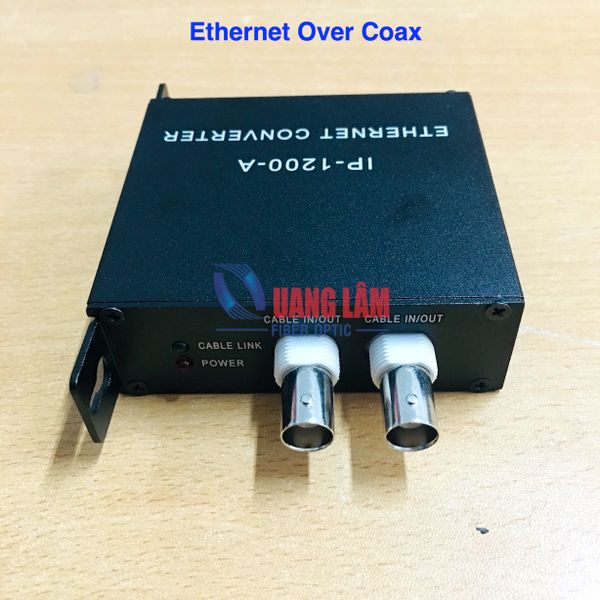

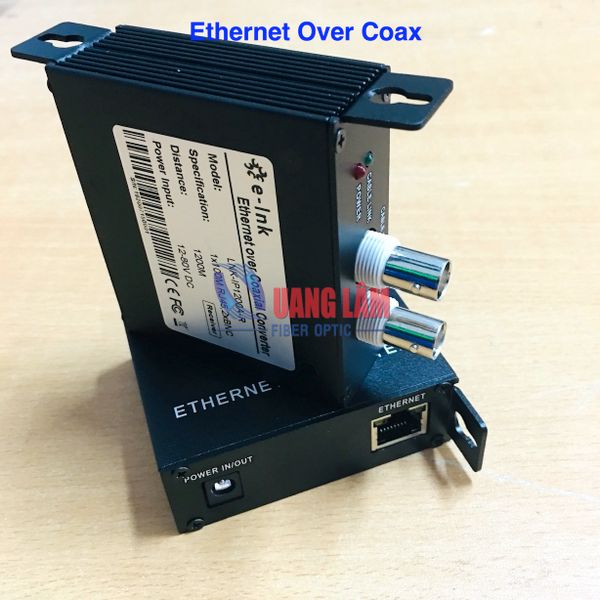

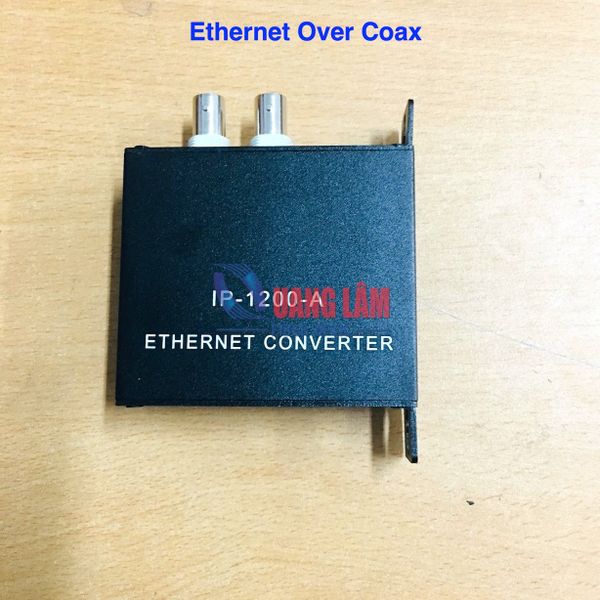

The LNK-IP1200A Ethernet over Coaxial Converter is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 1200M(Power: 300M). 2pc BNC design, support connect 2 channel branch line at same time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to 100Mbps. It has excellent lightning protection and Anti-interference. Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can make the device intelligent detect circuit individually, all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. Guarantee the security of surveillance zone. These series products are widely used in CCTV surveillance and remote network extension.
Features
► Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m
► Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
► Input Voltage: DC12V~80V (POE: DC44V~58V).
► Support Power Over Coax & Power over Ethernet at same time.
► 2pc BNC design, support to connect Max. 7 channels branch line
► Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
► Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
► Advanced 128-bit AES encrypted transmission and PoE+ power technology
► Excellent Protection: Built-in transient protection; industrial temperature range.
► Excellent lightning protection and strongly Anti-interference, surge protection.
Application
I. Provide PoE Power Supply for front-end PoE device (Transmission Distance: 300m)
II. Without PoE (Transmission Distance: 1200m)
III. Daisy-chain Connection with PoE
IV. Daisy-chain Connection without PoE
Technical Indexes
Technology
Standard
HomePlug AV
IEEE802.3 10/100 Ethernet (100Mbps)
IEEE802.3U Fast Ethernet
Encryption Algorithm
Algorithm
128-bit AES
Power
Supply mode
Power adapter
Voltage range
DC12V~80V (PoE: DC44V~58V)
Consumption
<2W
Ethernet Interface
Port
RJ45
Signal Type
10/100Base-Tx
Distance
100M (Max)
Coaxial Connector
Port
BNC
Transmission rate
80Mbps TCP, 90Mbps UDP
Distance
1200M (Max)
Power Indicator
LED Status Indicators
RED (Power On: keep lighting; Power Off: lighting off)
Coax Indicator
Cable Link indicator
GREEN (Flicker: signal transmission)
RJ45 Indicator
PoE indicator
YELLOW (PoE on: keep lighting; Power off: lighting off)
Network indicator
GREEN (Link: keep lighting; Signal transmission: Flicker)
Signal and Connector
Ethernet
1xRJ45
Coax
Female BNC
Transmitting Signal
Fast Ethernet
Transmission Distance
Without PoE
1200m
With PoE
300m
Distance and Data Rate
Distance
Coaxial Cable 75-5
Cat5e
Telephone Line
300m
91Mbps
91Mbps
65Mbps
600m
85Mbps
78Mbps
55Mbps
1000m
78Mbps
65Mbps
35Mbps
1200m
50Mbps
41Mbps
25Mbps
Protection
Surge Protection for Transmission Channel
2KV(differential mode) 4KV(common mode)
Standard: IEC61000-4-5
Electrostatic Protection for whole device
Contact discharge level 3
1b air discharge level 3
Standard: IEC61000-4-2
Working environment
Working temperature
0～55℃
Storage temperature
-20～70℃
Relative Humidity
0～95%(no condensation)
Mechanical
Dimension (W×H×D)
78mm×70mm×21mm
Weight
0.15KG
Metal
Color
Black
Ordering Information
LNK-IP1200A
Ethernet over Coaxial Converter, 1200m transmission distance, including Master and Slave, not including power supply adapter
LNK-IP1200AP
Ethernet over over Coaxial Converter with PoE+, 300m transmission distance, including Master and Slave, not including power supply adapter
