Standards

IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3bz 2.5G/5GBase-T IEEE802.2an 10GBase-T

IEEE802.3ae 10Gpbs Ethernet IEEE802.3x Flow control

Performance

Processing Type: Store and Forward Back Bandwidth: 20Gbps

Time Delay: <5us Jumbo Frame: 16Kbytes

Copper Port

Data Rate: 10G/5G/2.5G/1G/100/10Base-T Auto-negotiation Connector: RJ45, Auto MDI/MDI-X

Distance: 100m

Fiber Port

Data Rate: 10G Connector: SFP+ Slot MSA compliant

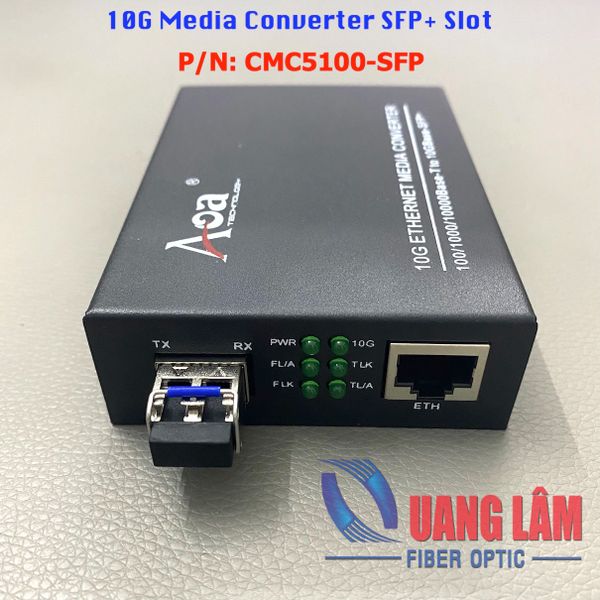

LED indicators

PWR,10G Speed,

Fiber link, Fiber link Act, Copper Link, Copper Link Act

Electrical

Power requirements: 5VDC, 2A Max. Power consumption: <4W, full-loaded Connector: DC socket

EMC Protection

Power   port: Copper port: ESD:

IEC 61000-4-5

IEC 61000-4-5

IEC 61000-4-2

Level 4,

Level 3,

Level 4

4KV

2KV

8KV/15KV

Environment

Operating temperature: -10~55ºC Storage Temperature: -40~85ºC

Relative Humidity: 5-95% (no condensation)

Physical Characteristics

Dimension: 94*71*26mm

Installation: Desk-top, wall mounting, Chassis Weight: 450g
