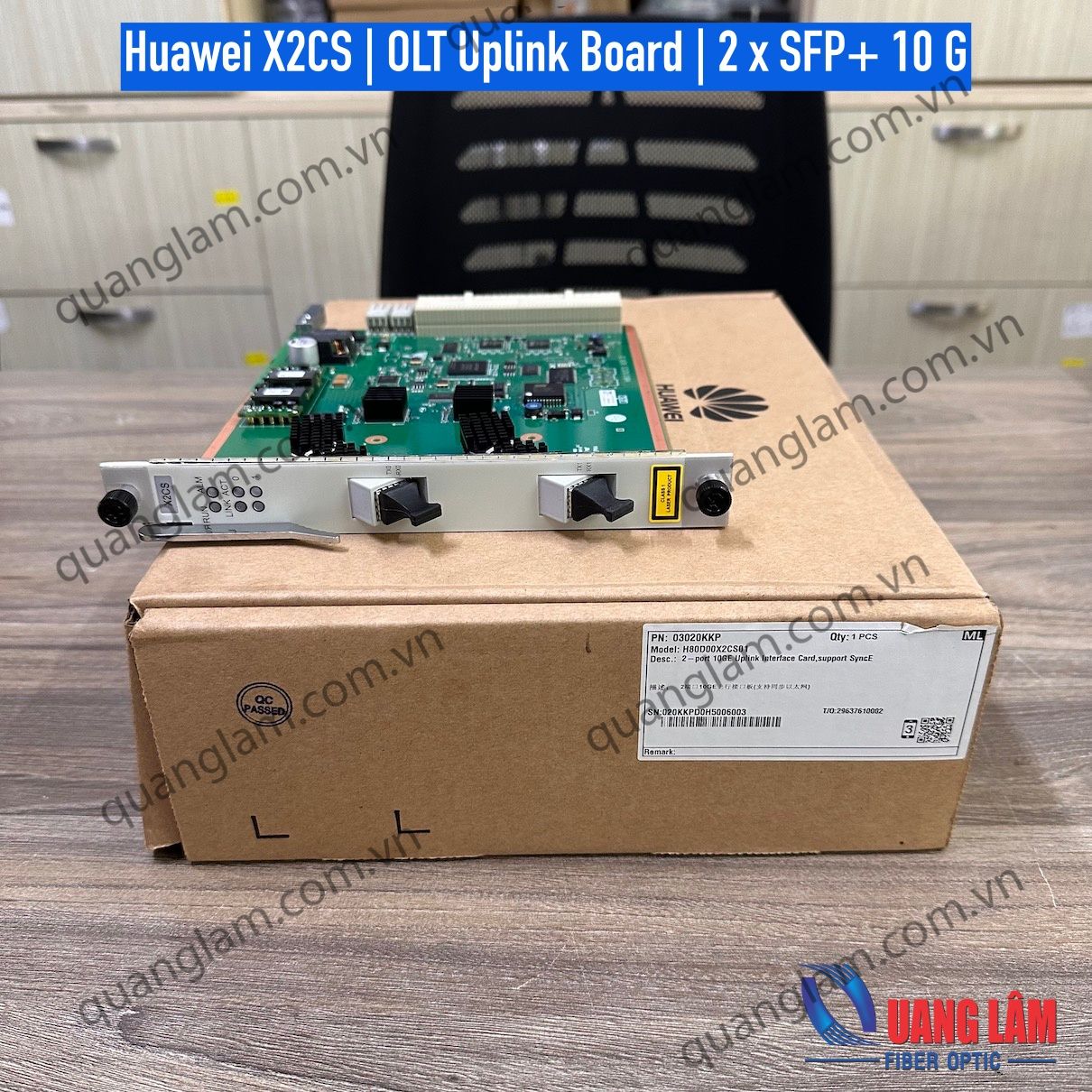

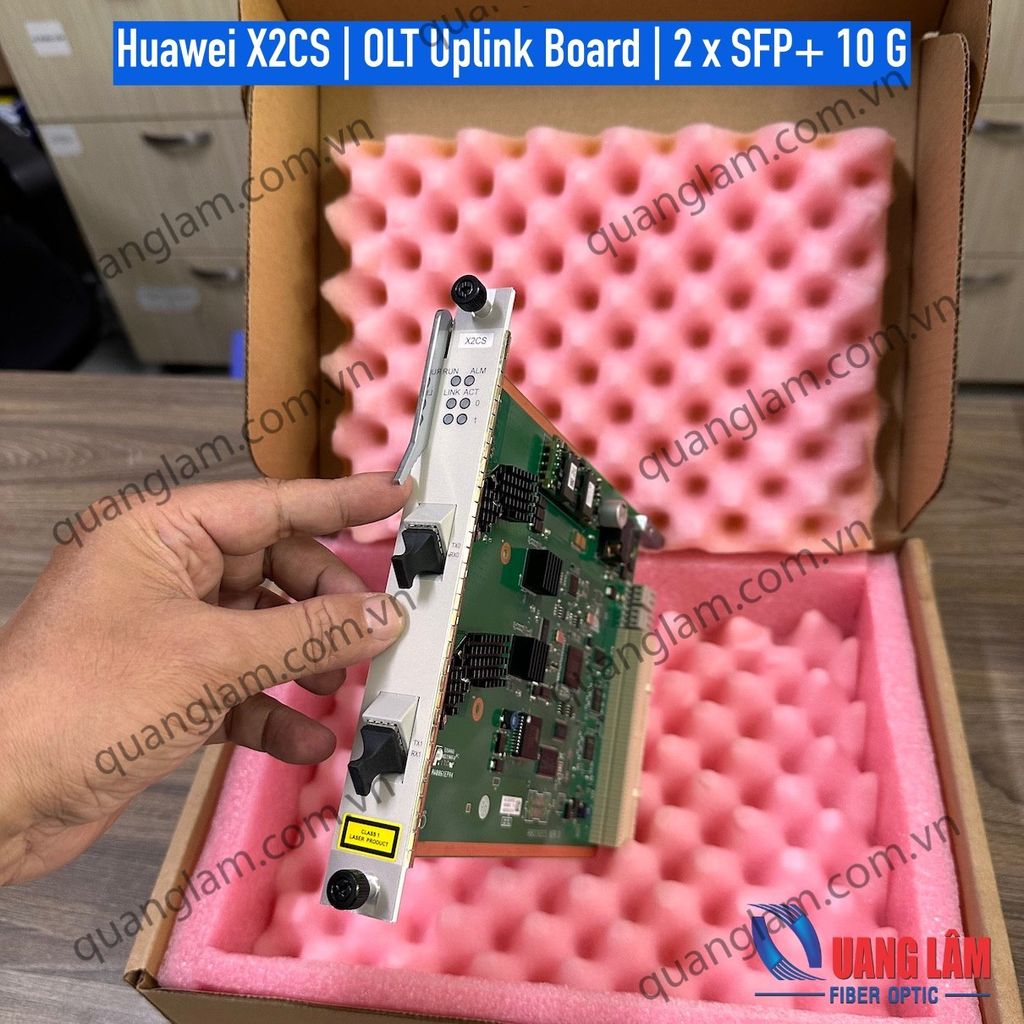

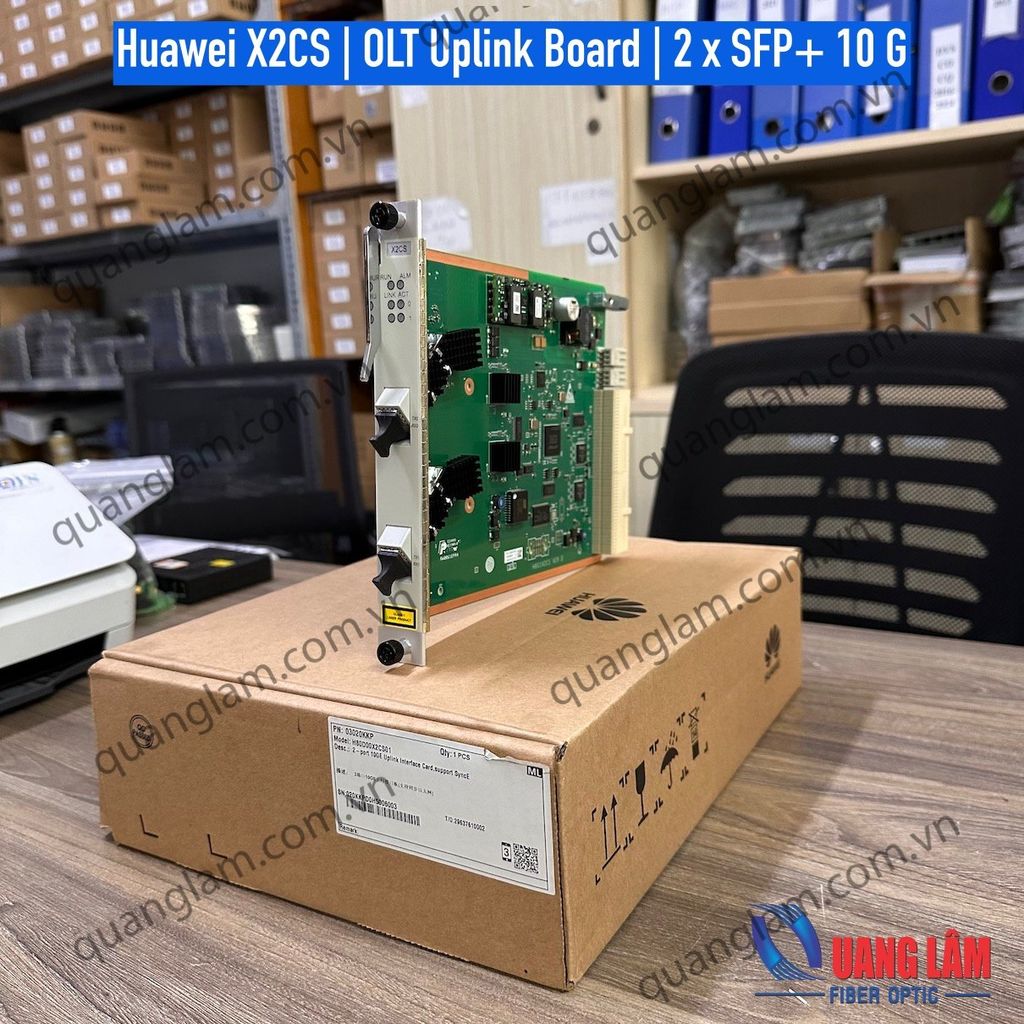

The X2CS board is a 2-port 10 GE Uplink interface card that offers two 10 GE upstream or cascade optical ports.
Basic principles of X2CS board operation
The control module reports status and production information about the board as well as interface information, manages the modules on the board and processes alarms.
The interface module provides two 10 GE ports.
The Ethernet Synchronous Clock Module takes the clock signals from 10 GE signals and synchronizes the 8 kHz control board clock with the clock signals.
The power supply module supplies power to the other functional modules of the board.
The clock module provides clock signals for other functional board modules.
13%
Mô tả
Huawei X2CS
The X2CS board is a 2-port 10 GE Uplink interface card that offers two 10 GE upstream or cascade optical ports.
Basic principles of X2CS board operation
Specification
Maximum: 18 W
