FGLT-B is the line termination unit of the Intelligent Service Access Manager (ISAM).
* Can be used in 7302 ISAM, 7330 ISAM FTTN (ETSI) and7360 ISAM FXsubracks.
Each board provides 16 GPON ports to support:
Total downlink rates are 40 Gbps (16x2.488 Gbps) and
Total upstream rate is 20 Gbps (16x1.244 Gbps)
Includes a traffic manager function that provides flexible scheduling and rate constraints on each ONT, with each UNI and each level of service based on downstream PON traffic.
Compliance with ANSI and ETSI/MII specifications.
Central office (CO) and remote deployment for ISAM FD or FX devices
If you only need hardware, please send me the part model and BOM number.
If you have network design requirements, please send us the following information:
1. Server board type, GPON or EPON, number of PON ports?
2. How many ONUs do you need to connect?
3. The types of GPON service board optical modules (Class B+, Class C+, Class C+)?
4. Uplink interface type (if upstream is GE port, electric port or optical port), speed, etc.
Mô tả
Manufacturer: Alcatel
Model: FGLT-B
Component No: 3FE68954AB

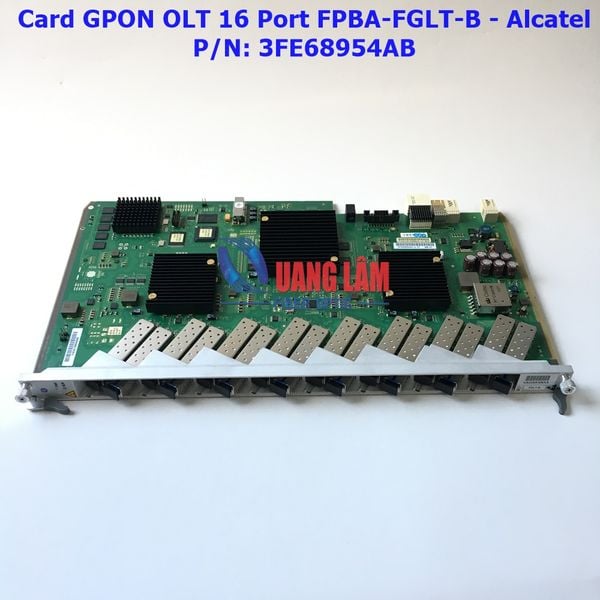

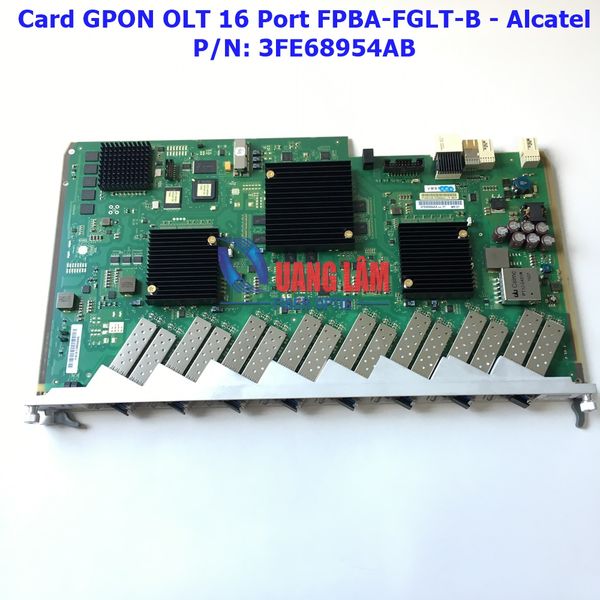

Description: 16 ports GPON Line Termination Board for Nokia 7360 ISAM FX-4 FX-8 FX-12, with Flow Manager-B Edition
FGLT-B is the line termination unit of the Intelligent Service Access Manager (ISAM).
* Can be used in 7302 ISAM, 7330 ISAM FTTN (ETSI) and 7360 ISAM FX subracks.
Each board provides 16 GPON ports to support:
Total downlink rates are 40 Gbps (16x2.488 Gbps) and
Total upstream rate is 20 Gbps (16x1.244 Gbps)
Includes a traffic manager function that provides flexible scheduling and rate constraints on each ONT, with each UNI and each level of service based on downstream PON traffic.
Compliance with ANSI and ETSI/MII specifications.
Central office (CO) and remote deployment for ISAM FD or FX devices
If you only need hardware, please send me the part model and BOM number.
If you have network design requirements, please send us the following information:
1. Server board type, GPON or EPON, number of PON ports?
2. How many ONUs do you need to connect?
3. The types of GPON service board optical modules (Class B+, Class C+, Class C+)?
4. Uplink interface type (if upstream is GE port, electric port or optical port), speed, etc.
