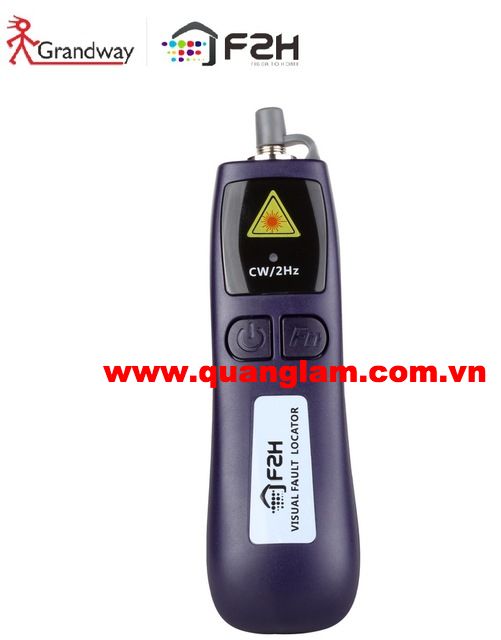

Description: VLS-8 Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator. A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point. VLS-8 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a little different on different fiber coat and color.
Features:
Totally comply with the human engineering design. Small, portable and durable
Standard multi-adaptor can be applied to connect with almost any adaptor type. Also provides interchangeable fiber adaptors of several common types
Higher output laser power, max 15km detecting range
Integrated with continuous wave and 2Hz modulated wave output function
Specification:
Model
VLS-7-1
VLS-7-10
VLS-7-15
VLS-7-30
Laser Launcher Level①
CLASS IIIA
CLASS IIIB
CLASS IIIB
CLASS IIIB
Output Power②
≥1mW
≥10mW
≥15mW
≥30mW
Detecting Range③
About 5km
About 12Km
About 14km
About 15km
CW Mode Battery Life④
About 13 hours
About 6 hours
About 5 hours
About 3 hours
2Hz Mode Battery Life④
About 23 hours
About 12 hours
About 10 hours
About 6 hours
Laser Launcher Type
LD
Optical Connector
universal 2.5mm adapter (FC/SC/ST)
Output Wavelength
650nm±10nm
Modulation Frequency
CW / 2Hz
Power
2*AAA dry batteries
Working Temperature
-10℃~+50℃; <90%RH
Storage Temperature
-20℃~+70℃; <90%RH
Dimension & Weight
L120mm×W33mm×H30mm / about 67.8g
Standard Accessories:
2*AAA batteries, carrying bag, user manual
Optional Accessories:
Male FC to female LC adapter for LC connector (model: HD078)
Note:①It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing. ②The output power is figured out by multi-mode optical fiber at 23℃±3℃. ③Detecting range will be different with different fibers. ④Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.
Mô tả
Dụng cụ dò lỗi sợi quang VLS-7-10 (Grandway)
Description:
VLS-8 Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator. A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point. VLS-8 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a little different on different fiber coat and color.
Features:
Specification:
Note:①It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
②The output power is figured out by multi-mode optical fiber at 23℃±3℃.
③Detecting range will be different with different fibers.
④Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.
