The Cisco ASA 5510 Adaptive Security Appliance ASA5510-K8delivers advanced security and networking services for small and medium-sized businesses and enterprise remote/branch offices in an easy-to-deploy, cost-effective appliance. These services can be easily managed and monitored by the integrated, Cisco ASDM application, thus reducing the overall deployment and operations costs associated with providing this high level of security. The Cisco ASA 5510 Adaptive Security Appliance provides high-performance firewall and VPN services and five integrated 10/100 Fast Ethernet interfaces. It optionally provides high-performance intrusion prevention and worm mitigation services through the AIP SSM, or comprehensive malware protection services through the CSC SSM. This unique combination of services on a single platform makes the Cisco ASA 5510 an excellent choice for businesses requiring a cost-effective, extensible, DMZ-enabled security solution.
Quick Spec

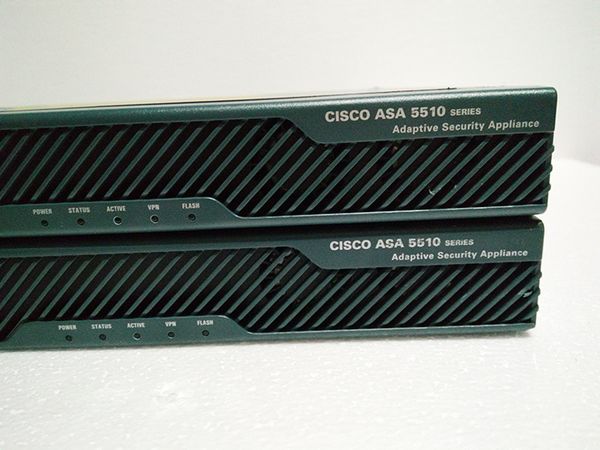

Figure 1 shows the appearance ofASA5510-K8.
Table 1 shows the quick spec.
Product Code
ASA5510-K8
Product Description
Cisco ASA 5510 Firewall Edition includes 5 Fast Ethernet interfaces, 250 IPsec VPN peers, 2 SSL VPN peers, DES license
Users/Nodes
Unlimited
Firewall Throughput
Up to 300 Mbps
Maximum Firewall and IPS Throughput
● Up to 150 Mbps with AIP-SSM-10
● Up to 300 Mbps with AIP-SSM-20
Memory
256 MB
Minimum System Flash
64 MB
Dimensions (H x W x D)
1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)
Weight (with Power Supply)
20.0 lb (9.07 kg)
Product Details

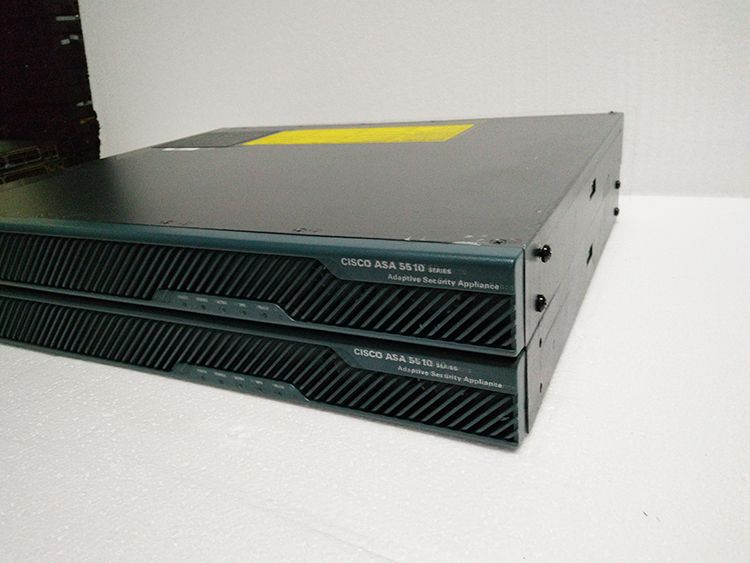

Figure 2 shows the30 degree view ofASA5510-K8.
Note:
①
Security Services Card Slot
②
2 USB 2.0 ports
③
4 Fast Ethernet ports or 2 Gigabit Ethernet + 2 Fast Ethernet ports
④
LED area
⑤
AUX port
⑥
On/Off switch
⑦
Input power connection
⑧
RJ-45 management spot
⑨
External CompactFlash slot
⑩
RJ-45 console port
Compare to Similar Items
Table2 shows the comparison betweenASA5510-K8 andASA5505-BUN-K9.
Product Code
ASA5510-K8
ASA5505-BUN-K9
Product Description
Cisco ASA 5510 Firewall Edition includes 5 Fast Ethernet interfaces, 250 IPsec VPN peers, 2 SSL VPN peers, DES license
ASA 5505 Security Appliance with SW, 10 Users, 8 ports, 3DES/AES, Cisco ASA 5500 Series Firewall Edition Bundles
26%
Mô tả
ASA5510-K8 Overview
The Cisco ASA 5510 Adaptive Security Appliance ASA5510-K8 delivers advanced security and networking services for small and medium-sized businesses and enterprise remote/branch offices in an easy-to-deploy, cost-effective appliance. These services can be easily managed and monitored by the integrated, Cisco ASDM application, thus reducing the overall deployment and operations costs associated with providing this high level of security. The Cisco ASA 5510 Adaptive Security Appliance provides high-performance firewall and VPN services and five integrated 10/100 Fast Ethernet interfaces. It optionally provides high-performance intrusion prevention and worm mitigation services through the AIP SSM, or comprehensive malware protection services through the CSC SSM. This unique combination of services on a single platform makes the Cisco ASA 5510 an excellent choice for businesses requiring a cost-effective, extensible, DMZ-enabled security solution.
Quick Spec
Figure 1 shows the appearance of ASA5510-K8.
Table 1 shows the quick spec.
Product Code
ASA5510-K8
Product Description
Cisco ASA 5510 Firewall Edition includes 5 Fast Ethernet interfaces, 250 IPsec VPN peers, 2 SSL VPN peers, DES license
Users/Nodes
Unlimited
Firewall Throughput
Up to 300 Mbps
Maximum Firewall and IPS Throughput
● Up to 150 Mbps with AIP-SSM-10
● Up to 300 Mbps with AIP-SSM-20
Memory
256 MB
Minimum System Flash
64 MB
Dimensions (H x W x D)
1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)
Weight (with Power Supply)
20.0 lb (9.07 kg)
Product Details
Figure 2 shows the 30 degree view of ASA5510-K8.
Note:
①
Security Services Card Slot
②
2 USB 2.0 ports
③
4 Fast Ethernet ports or 2 Gigabit Ethernet + 2 Fast Ethernet ports
④
LED area
⑤
AUX port
⑥
On/Off switch
⑦
Input power connection
⑧
RJ-45 management spot
⑨
External CompactFlash slot
⑩
RJ-45 console port
Compare to Similar Items
Table 2 shows the comparison between ASA5510-K8 and ASA5505-BUN-K9.
Product Code
ASA5510-K8
ASA5505-BUN-K9
Product Description
Cisco ASA 5510 Firewall Edition includes 5 Fast Ethernet interfaces, 250 IPsec VPN peers, 2 SSL VPN peers, DES license
ASA 5505 Security Appliance with SW, 10 Users, 8 ports, 3DES/AES, Cisco ASA 5500 Series Firewall Edition Bundles
Users/Nodes
Unlimited
10
Firewall Throughput
Up to 300 Mbps
Up to 150 Mbps
Maximum Firewall and IPS Throughput
● Up to 150 Mbps with AIP-SSM-10
● Up to 300 Mbps with AIP-SSM-20
● Up to 150 Mbps with AIP-SSC-5
Memory
256 MB
256 MB
Minimum System Flash
64 MB
64 MB
Dimensions (H x W x D)
1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)
1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)
Weight (with Power Supply)
20.0 lb (9.07 kg)
4.0 lb (1.8 kg)
