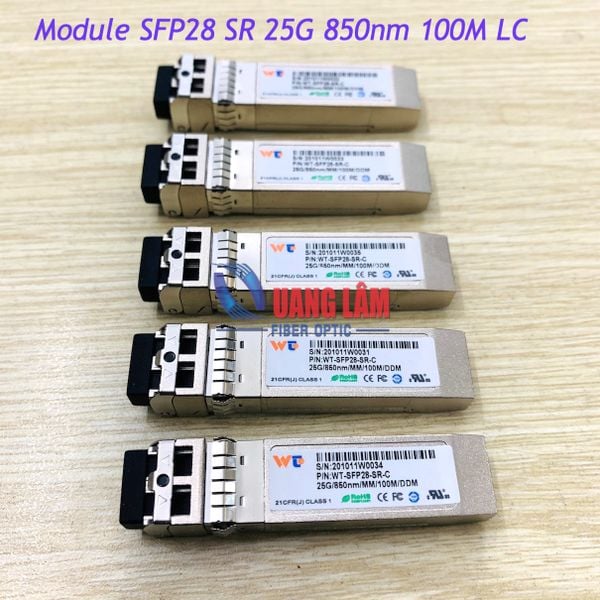

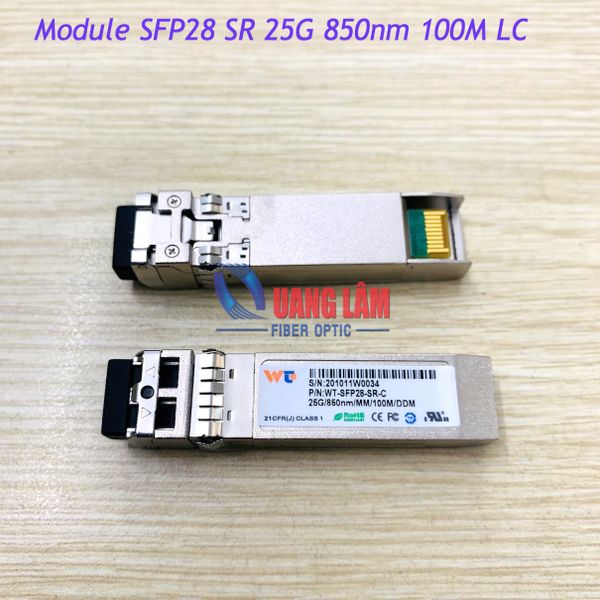

Module 25Gb SFP28 SR 100m Transceiver

Part number: WT-SFP28-SR

NOTE: A 25-Gigabit transceiver in SFP28 form-factor that supports the SR standard, providing 25-Gigabit connectivity up to 100m on multi-mode fiber. This transceiver does not function at 10-Gigabit.

• Connector: LC 25-GbE port (IEEE 802.3 Type 25Gbase-SR) duplex full only
• Wavelength 850 nm
• Physical characteristics Dimensions 0.54 x 2.19 x 0.47 in. (13.8 x 55.7 x 11.9 mm)
• Weight: 20g
• Transceiver form factor SFP28
• Environment Operating temperature 32°F to 158°F (0°C to 70°C)
• Operating relative humidity: 0% to 85%, noncondensing

• Non-operating/Storage temperature: -40°C to 85°C
• Electrical characteristics Voltage Supply 3.3 V
• Power consumption maximum :1.5 W
• Cabling Cable type OM3, OM4
• Cable length Up to 70m (OM3); up to 100m (OM4)
• Fiber type: Multi-mode
• NOTES For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish.
