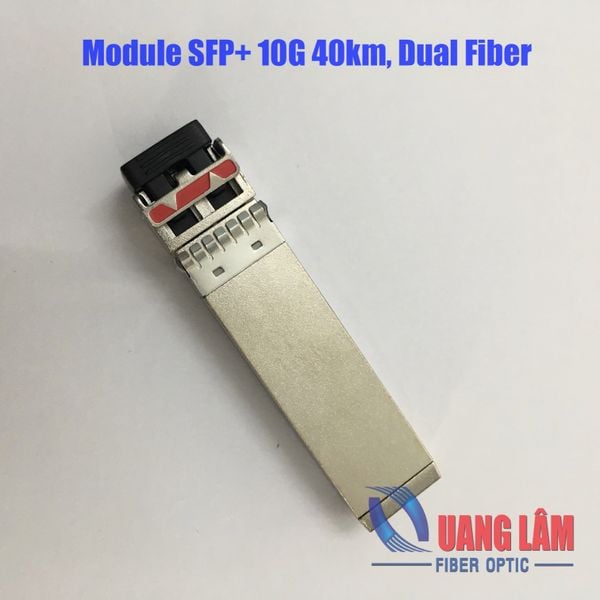

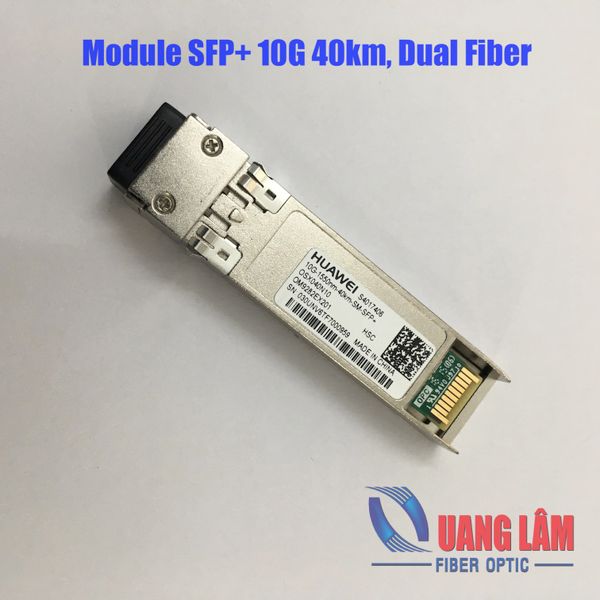

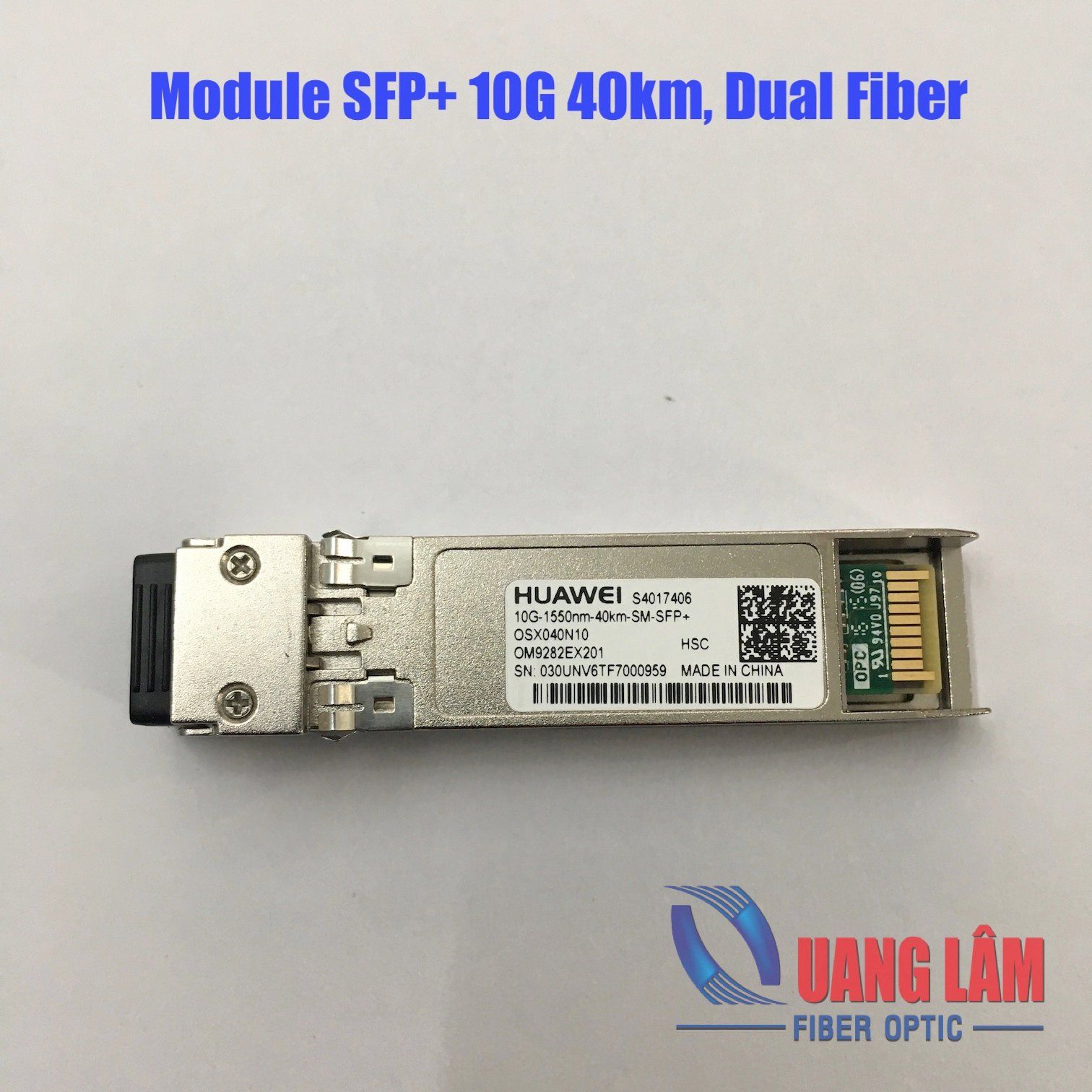

Module quang SFP+ 10G 40km Huawei OSX040N10 10G-1550NM-40KM-SM-SFP+
Item
Specification
BOM
S4017406
Model
OSX040N10
Encapsulation mode
SFP+
Interface standard
IEEE 802.3ae, 10GBASE-ER/EW
Bit Error Ratio (BER)
<1x10E–12
Working case temperature (°C)
0 °C to 70 °C (32°F to 158°F)
Digital diagnosis
SFF-8472
Environment standard
RoHS
Security standard
FCC class B, IEC 60825-1 Class 1
ESD(HBM1) (V)
500
Transmission rate (bit/s)
9.953G/10.3125G
Connector type
LC
Transmission distance (km)
40
Optical fiber type
SMF
Center wavelength (nm)
1550
Working wavelength range of the optical transmitter (nm)
1530-1565
Maximum sending optical power (AVG) (dBm)
4
Maximum sending optical power (OMA) (dBm)
-
Minimum sending optical power (AVG) (dBm)
-4.7
Minimum sending optical power (OMA) (dBm)
Working wavelength range of the optical receiver (nm)
Receiving sensitivity (AVG) (dBm)
-15.8
Receiving sensitivity (OMA) (dBm)
-14.1
Saturated optical power (dBm)
-1
Minimum extinction ratio (dB)
3
Note
Self-loop is not supported. An optical attenuator must be added if self-loop is required.
Liên hệ
Chat với chúng tôi
Mô tả
Module quang SFP+ 10G 40km Huawei OSX040N10 10G-1550NM-40KM-SM-SFP+
10Gbps-SFP+-SMF-1550nm-40km
Item
Specification
BOM
S4017406
Model
OSX040N10
Encapsulation mode
SFP+
Interface standard
IEEE 802.3ae, 10GBASE-ER/EW
Bit Error Ratio (BER)
<1x10E–12
Working case temperature (°C)
0 °C to 70 °C (32°F to 158°F)
Digital diagnosis
SFF-8472
Environment standard
RoHS
Security standard
FCC class B, IEC 60825-1 Class 1
ESD(HBM1) (V)
500
Transmission rate (bit/s)
9.953G/10.3125G
Connector type
LC
Transmission distance (km)
40
Optical fiber type
SMF
Center wavelength (nm)
1550
Working wavelength range of the optical transmitter (nm)
1530-1565
Maximum sending optical power (AVG) (dBm)
4
Maximum sending optical power (OMA) (dBm)
-
Minimum sending optical power (AVG) (dBm)
-4.7
Minimum sending optical power (OMA) (dBm)
-
Working wavelength range of the optical receiver (nm)
1530-1565
Receiving sensitivity (AVG) (dBm)
-15.8
Receiving sensitivity (OMA) (dBm)
-14.1
Saturated optical power (dBm)
-1
Minimum extinction ratio (dB)
3
Note
Self-loop is not supported. An optical attenuator must be added if self-loop is required.
