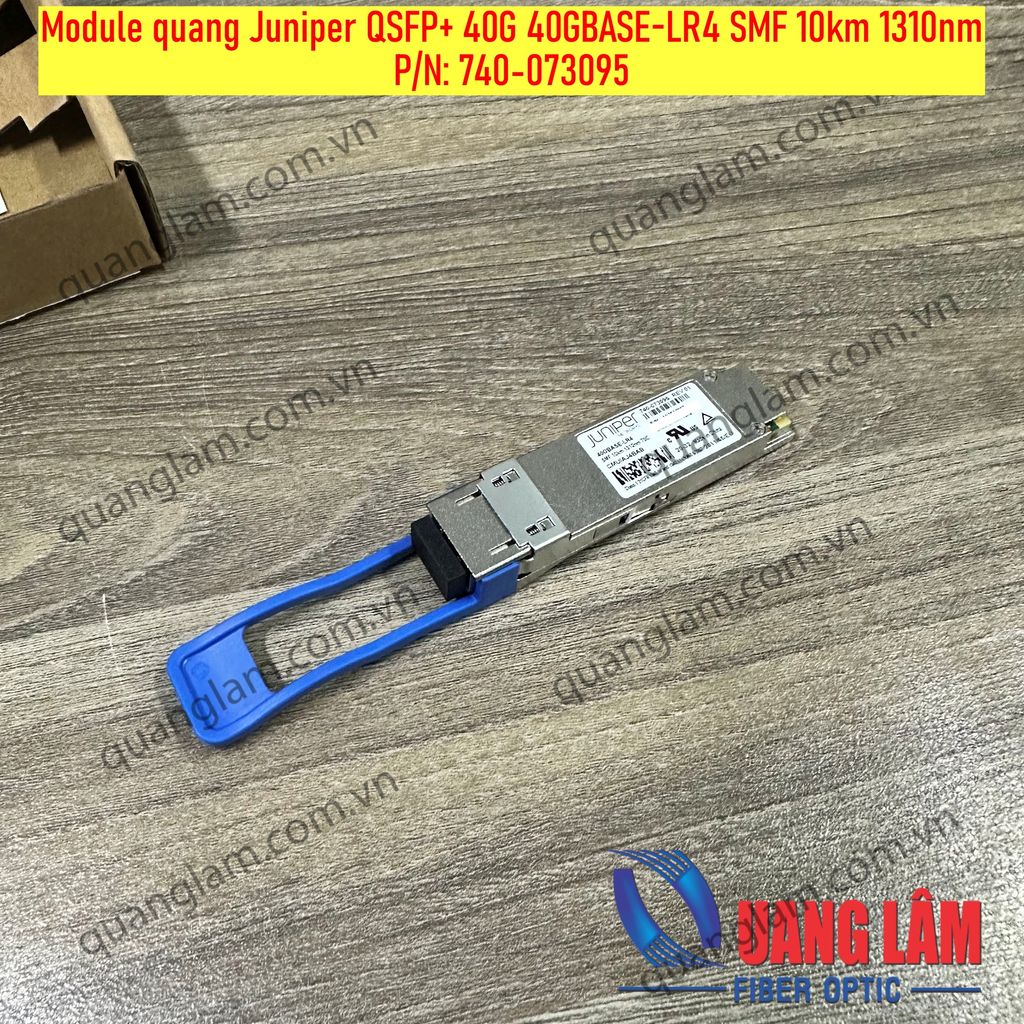

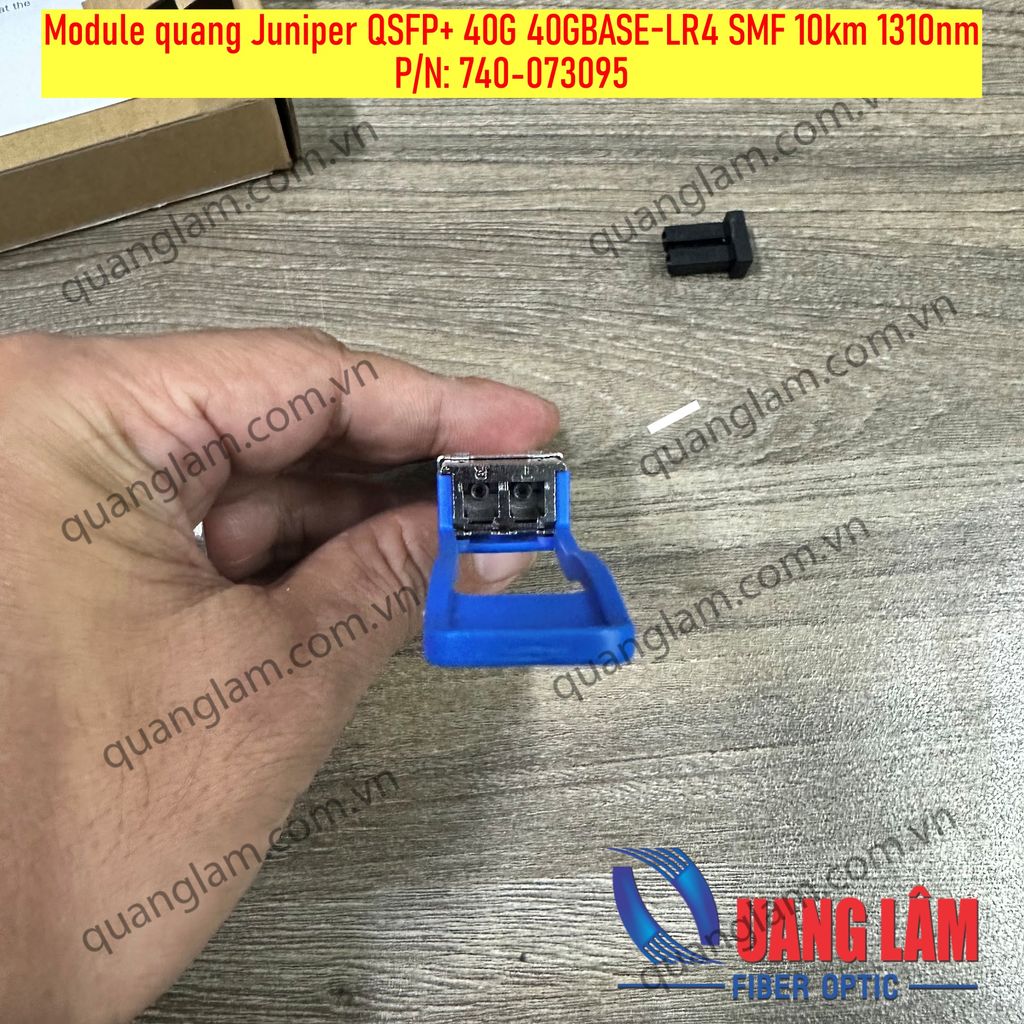

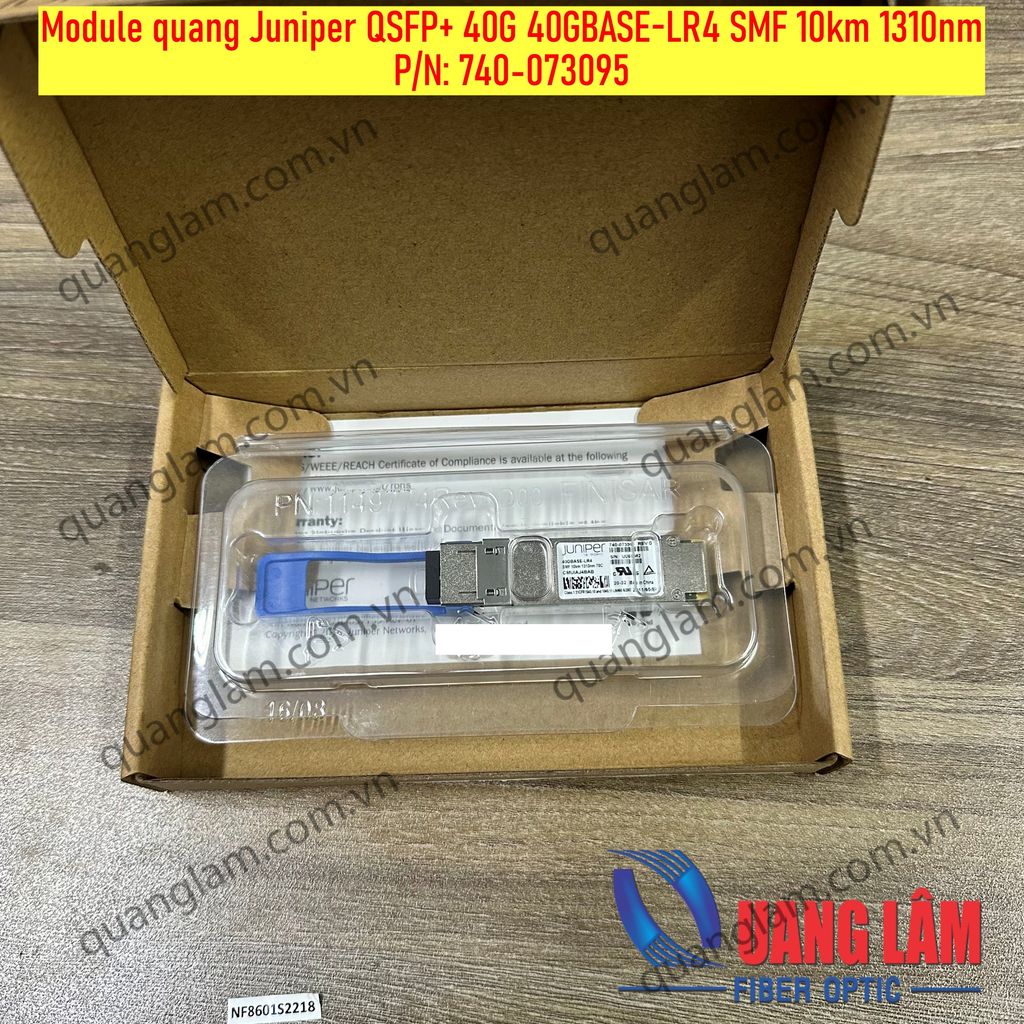

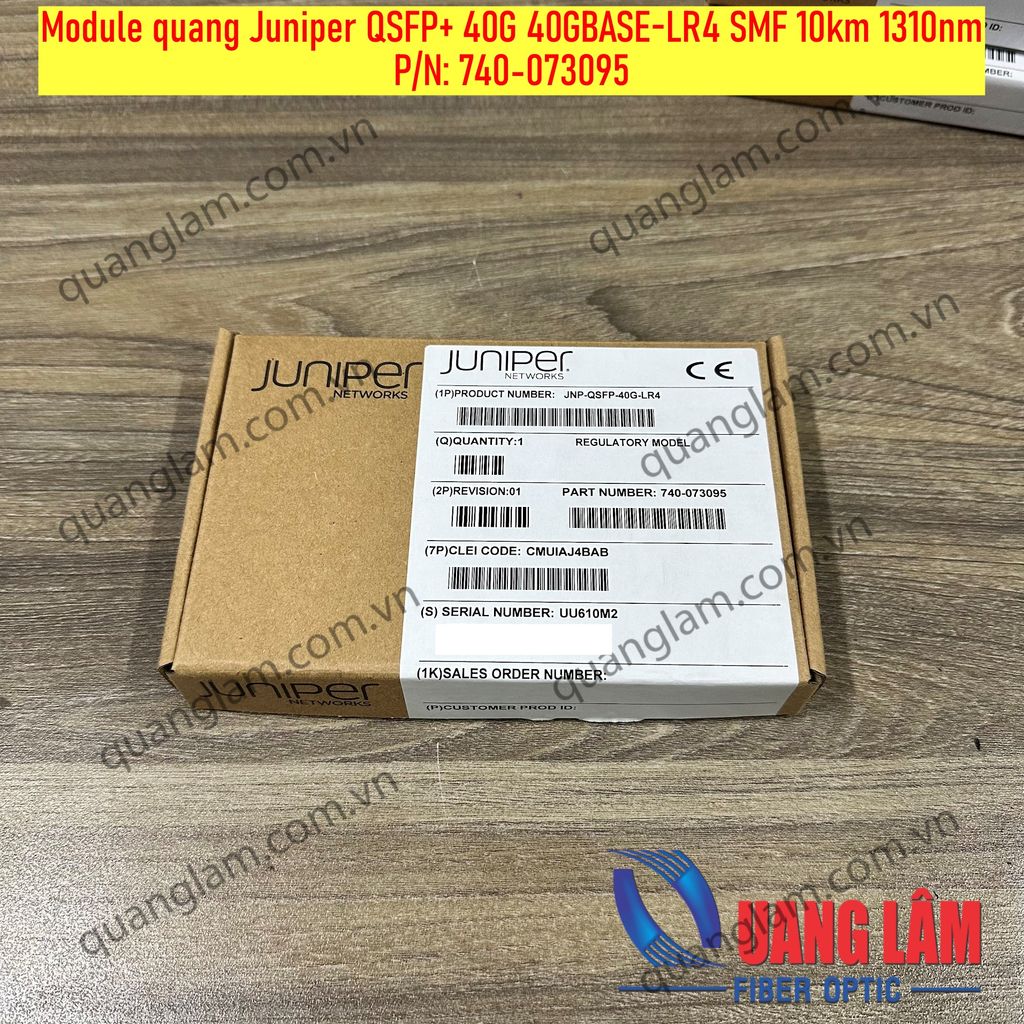

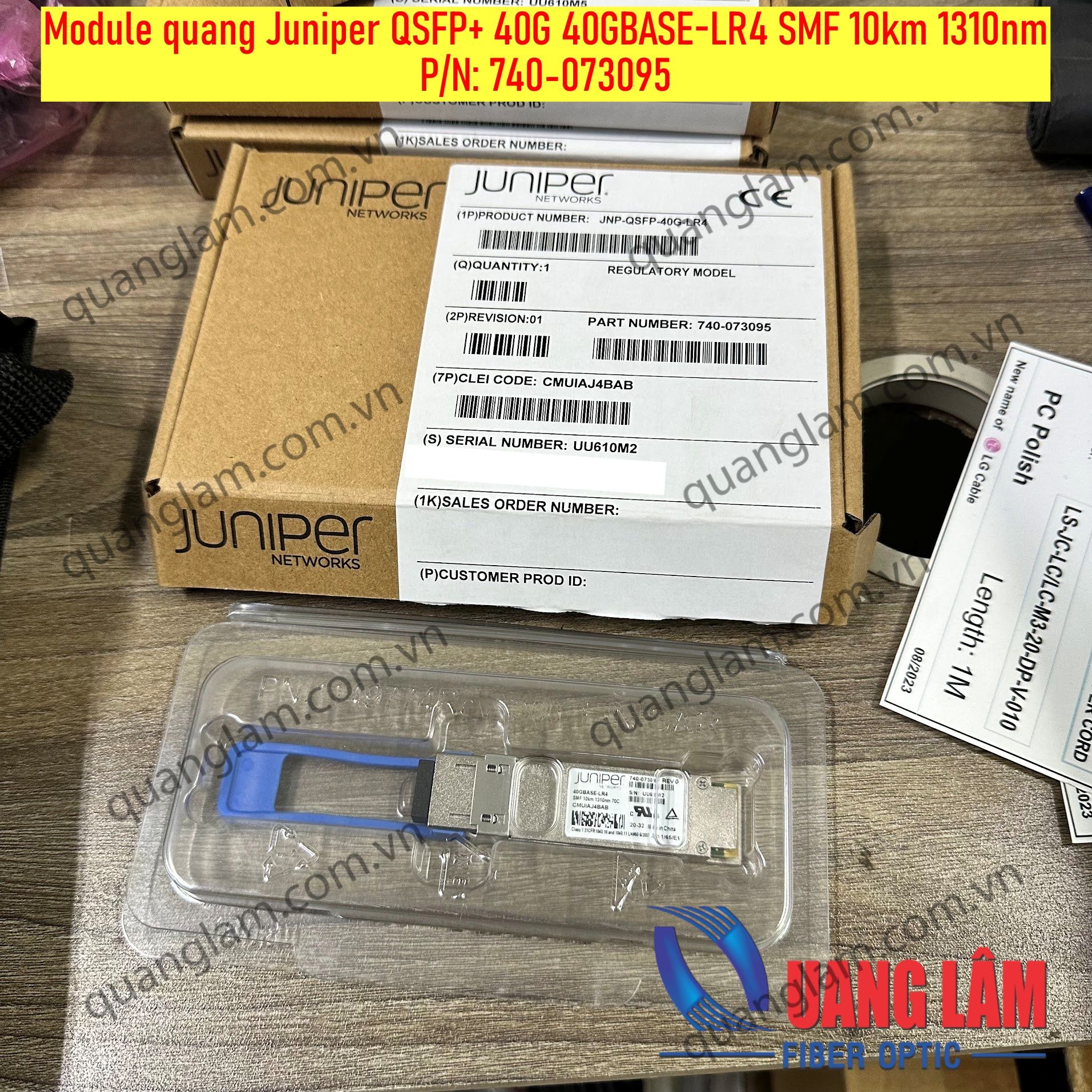

Module quang Juniper QSFP+ 40G 40GBASE-LR4 SMF 10km 1310nm P/N: 740-073095

• Part Number 740-073095
• Speed: 40 Gigabit Ethernet
• Transceiver Type: QSFP+
• Connector: Duplex LC
• Monitoring Available: Yes
• Digital Optical Monitoring: Yes
• Standard: 40GBASE-LR4
• Signaling rate, each lane: 40 Gbps (10 Gbps per lane)
• Transmitter fibers: Dual
• Transmitter wavelengths (range)
  • Lane 0–1264.5 nm through 1277.5 nm
  • Lane 1–1284.5 nm through 1297.5 nm
  • Lane 2–1304.5 nm through 1317.5 nm
  • Lane 3–1324.5 nm through 1337.5  nm
• Receive lane wavelengths (range)
  • Lane 0–1264.5 nm through 1277.5 nm
  • Lane 1–1284.5 nm through 1297.5 nm
  • Lane 2–1304.5 nm through 1317.5 nm
  • Lane 3–1324.5 nm through 1337.5  nm
• Transmitter output power, each lane (minimum): -7.6 dBm (per lane)
• Transmitter output power, each lane (maximum): 2.3 dBm
• Receiver input power, each lane (minimum): -13.7 dBm
• Receiver input power, each lane (maximum): 2.3 dBm
• Cable type: SMF
• Core size/cladding: 9/125 µm
• Distance: 10 km
• Maximum Power consumption (W): 3.5 W
• Operating Temperature (range): 0° C to 70° C
• Storage temperature: –40° C to 85° C
