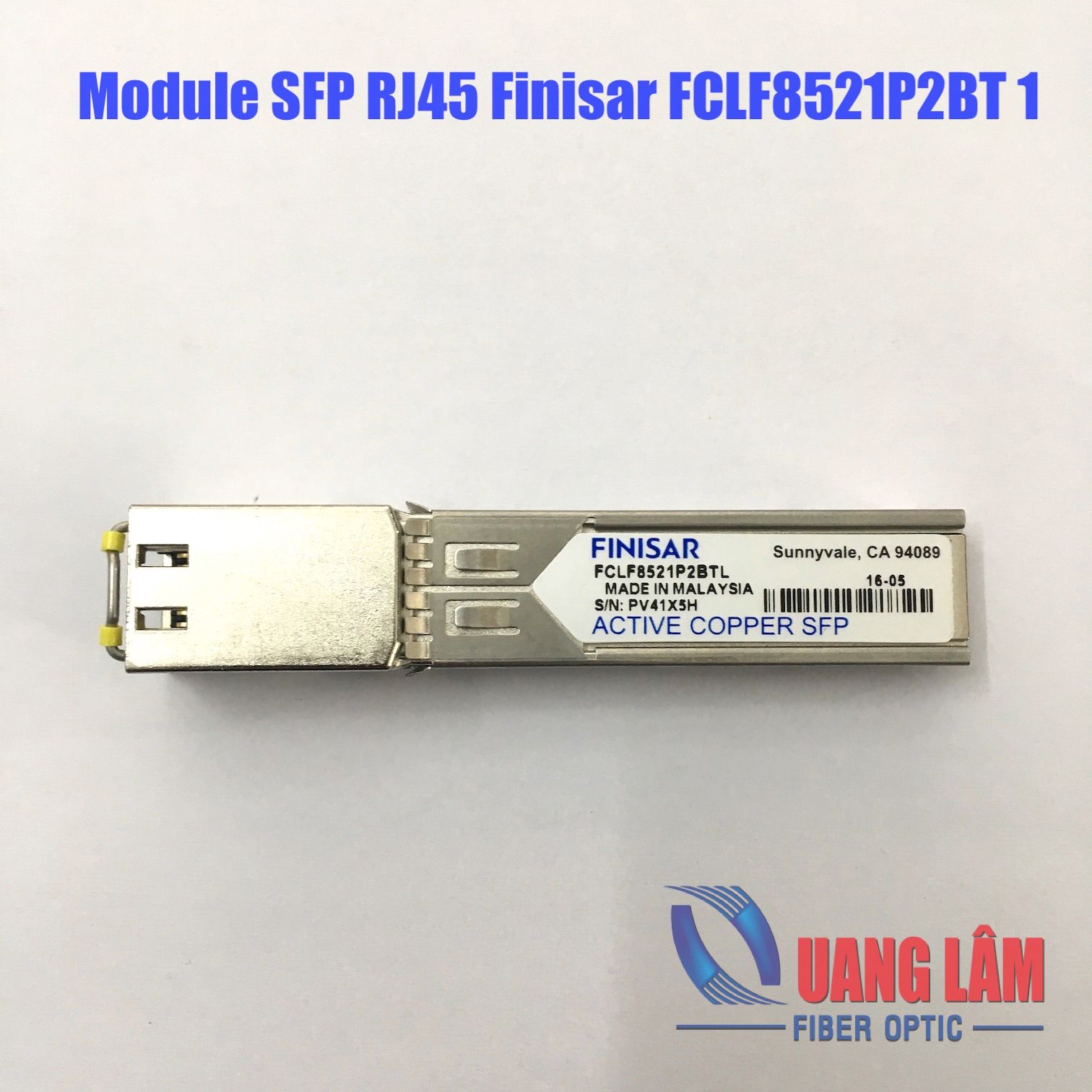

Finisar's FCLF8521P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Fully metallic enclosure for low EMI
RoHS compliant and Lead Free
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface
Mô tả
Finisar's FCLF8521P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and lead-free per Directive 2011/65/EU and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
