Mã sản phẩm: WINTOP WT-9110G/T

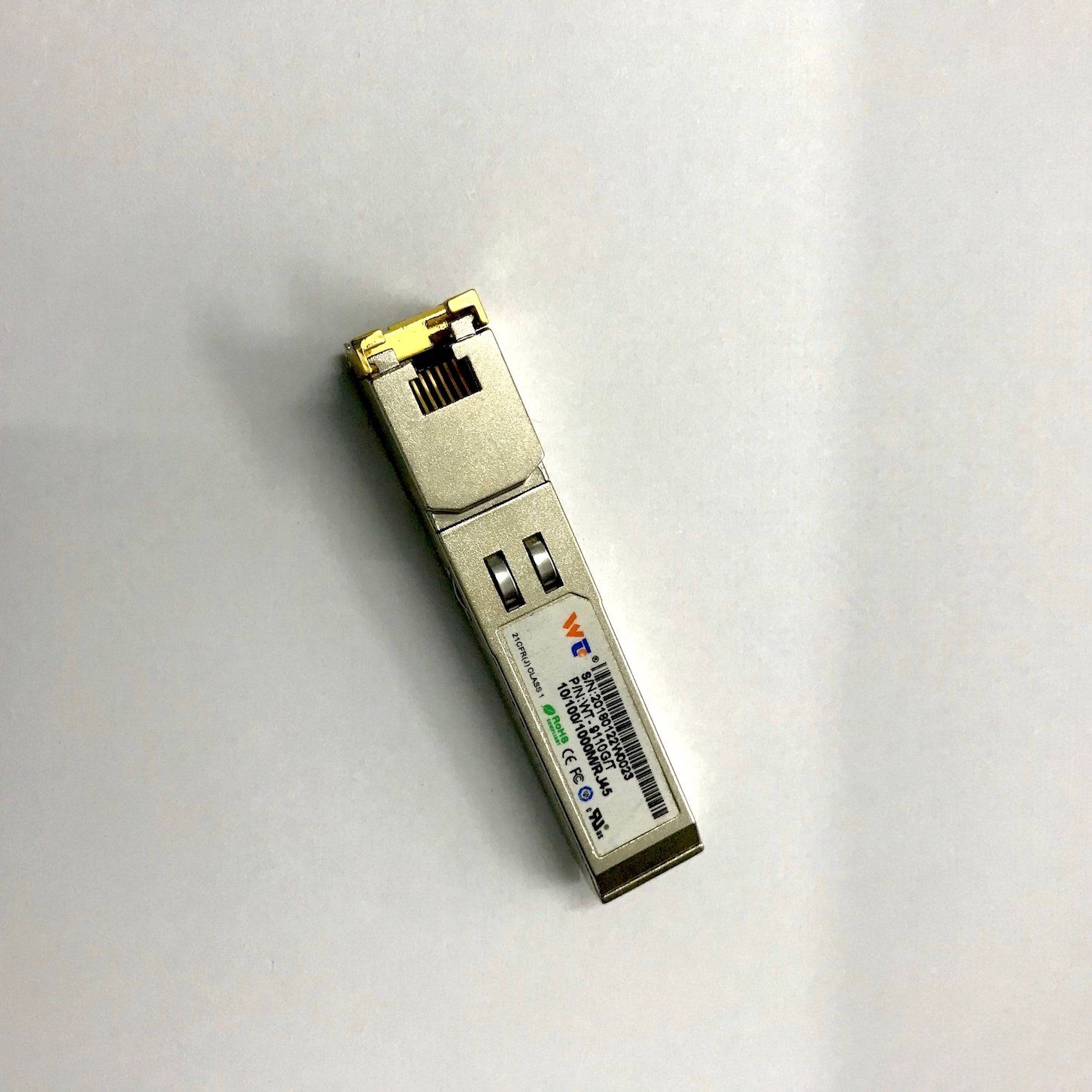

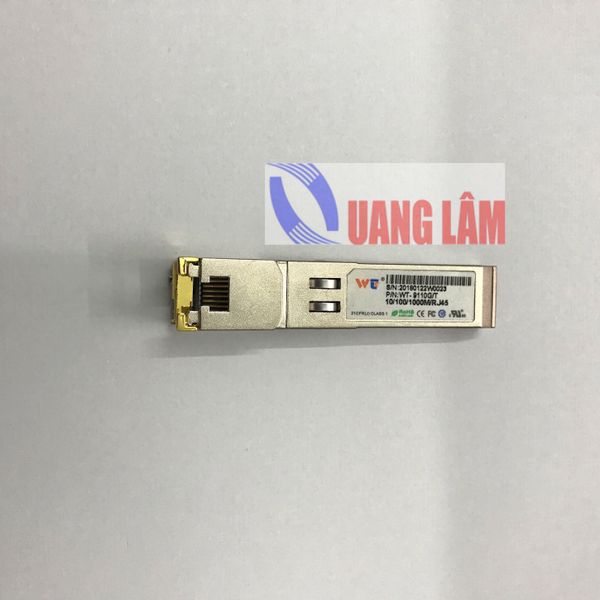

10/100/1000BASE-T Copper SFP Transceiver WT-9110G/T
Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
Fully metal enclosure, for lower EMI
RoHS compliant and lead-free
Single +3.3V power supply
10/100/1000 BASE-T operation in host systems with SGMII interface
1.25 Gigabit Ethernet over Cat 5 cable
Ambient Operating temperature: 0°C to +70°C
10/100/1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE Std 802.3 . The 10/100/1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
The 10/100/1000Base-T Copper for link indication, and 10/100/1000BASE-X auto-negotiation should be disabled on the host system.It is compatible with 10/100/1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).
