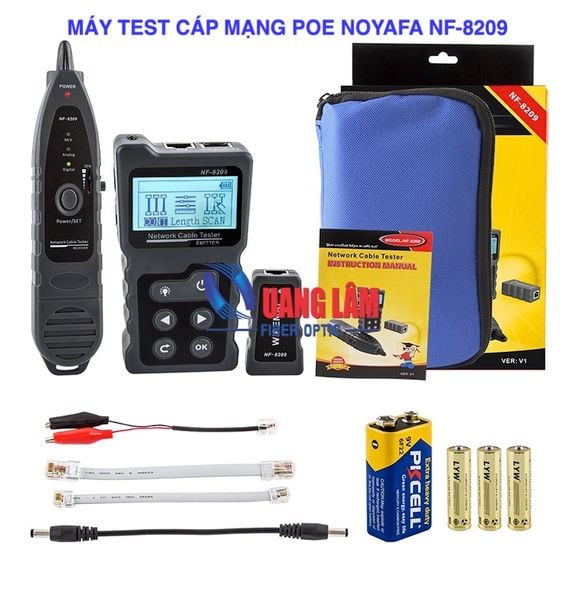

Máy test và dò cáp mạng POE NOYAFA NF-8209
Thông tin chung:

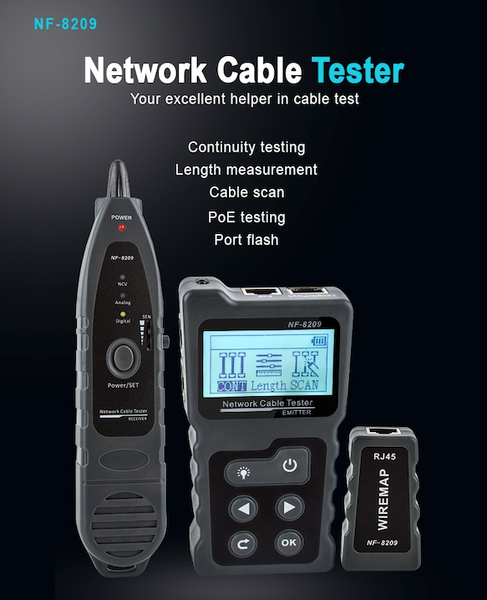

NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
Tính năng chính:
- PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
- Three scan modes selectable: AC filter mode/ Analog mode/ PoE mode

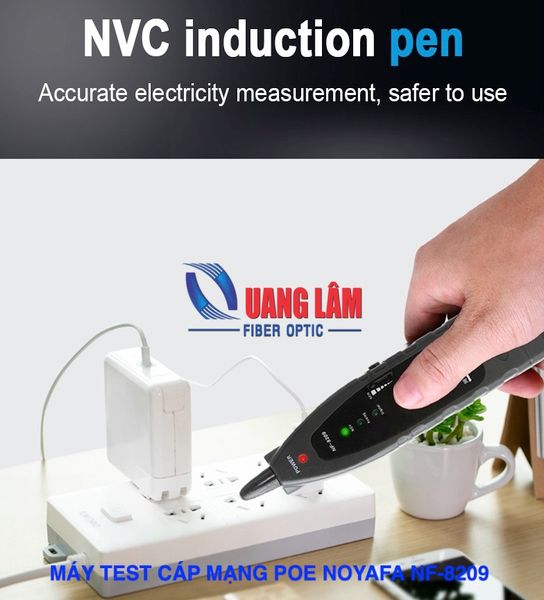

- Detect AC voltage presence (50V-1000V).
- Test physical status for STP, UTP lan cable.

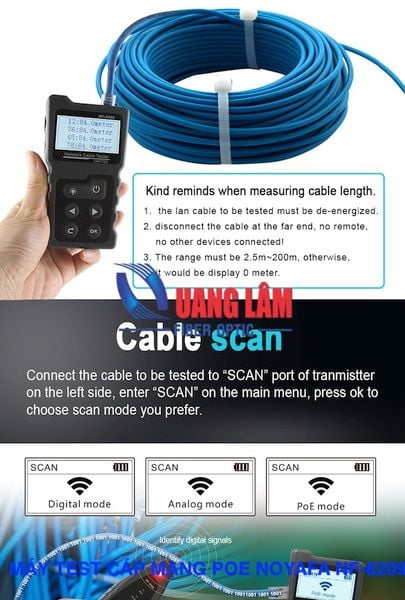

- Measure cable length accurately , the range is 200m.
- Hub/Switch blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
