Provides 1~4 output wavelengths which can be optional according to customer’s needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
Specifications
Type
JW3109
Wavelengths(nm)
650
1310/1550
850/1300
850/1300/1310/1550
Emitter Type
FP-LD,LED or others please specify
Typical Output Power (dBm)
0
-7dBm for LD, -20dBm for LED
Spectral Width(nm)
≤10
Output Stability
±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies
CW,2Hz
CW,270Hz,1KHz,2KHz
Optical Connector
FC/ universal adaptor
FC/PC
Power Supply
Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)
45
Operating Temperature(℃)
-10~+60
Storage Temperature(℃)
-25~+70
Dimension
23.5*16*8cm
Weight
0.6kg
Joinwit Recommendation

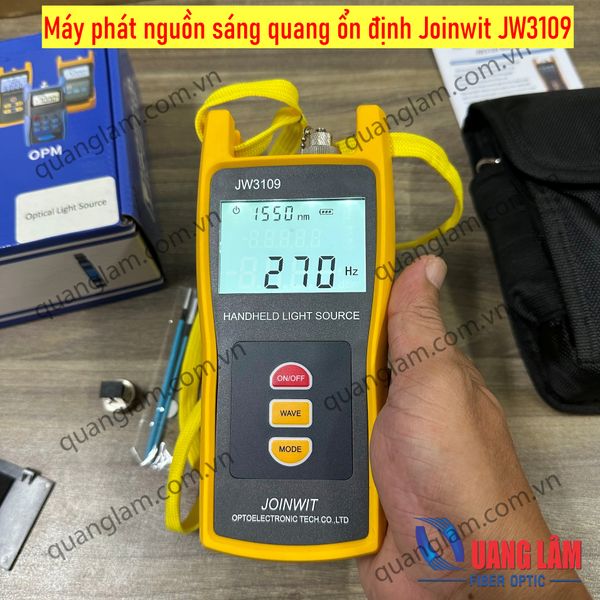

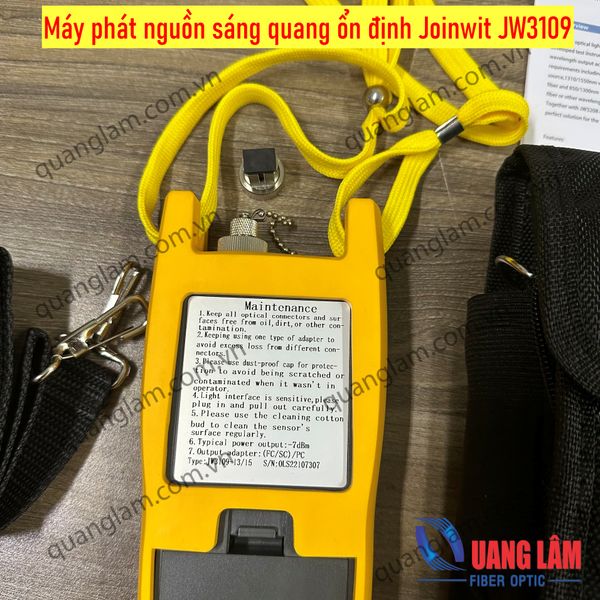

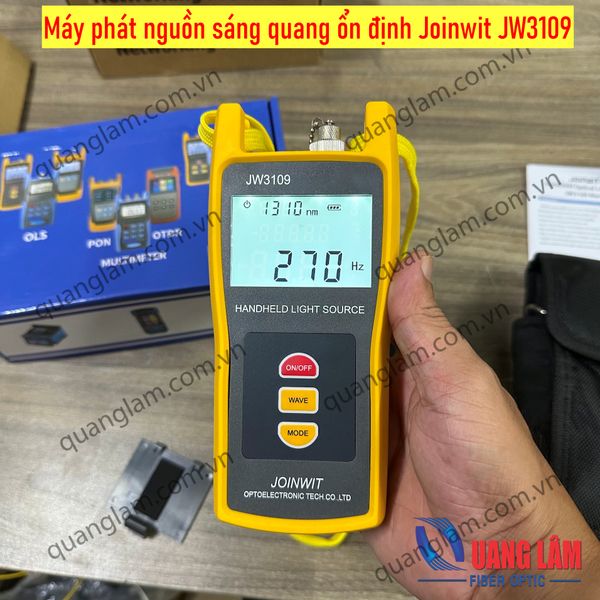

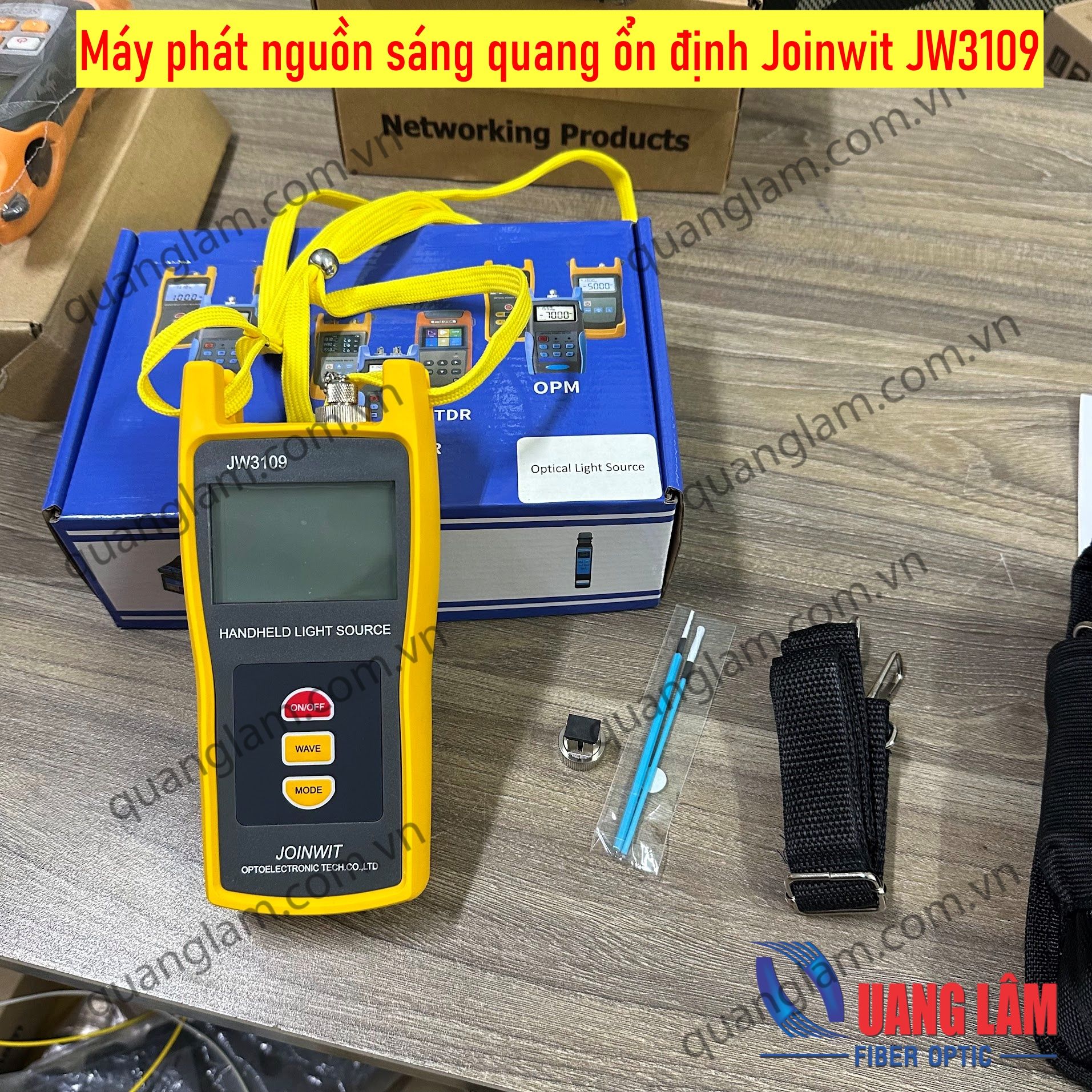

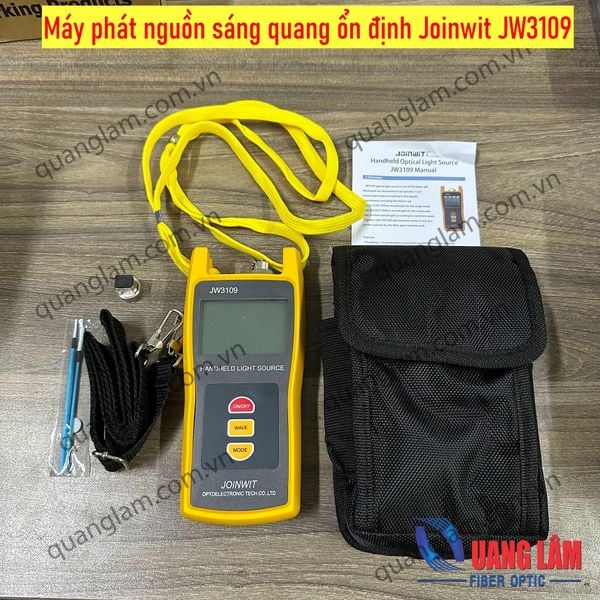

JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable.
