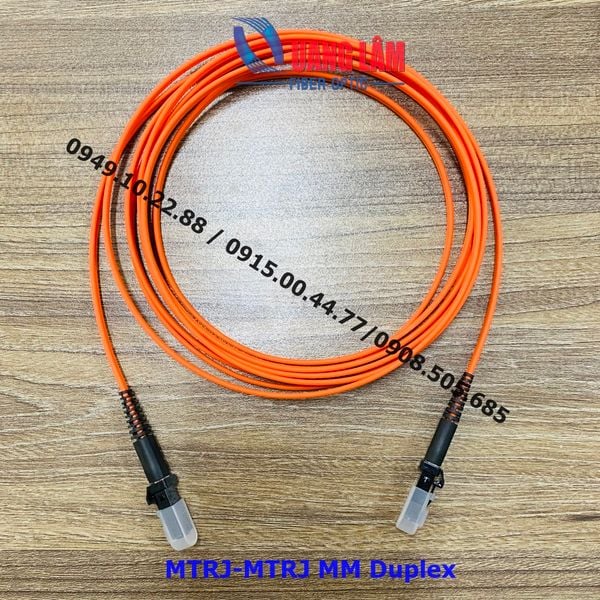

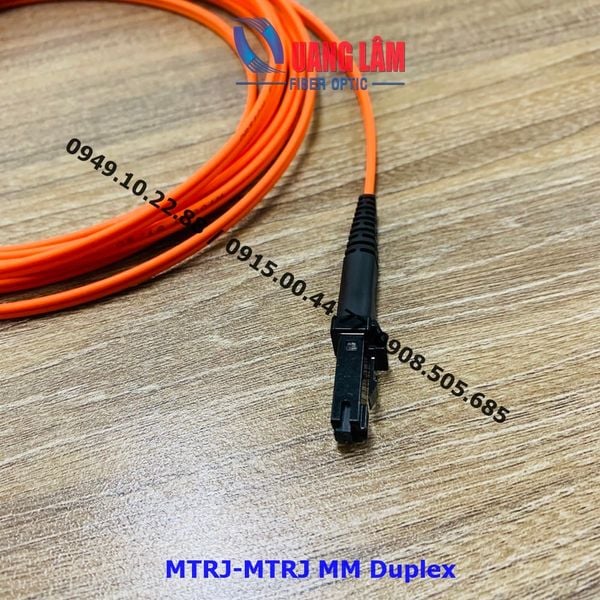

Dây nhảy quang Multimode MM MTRJ-MTRJ Duplex, phi 2.0mm
Chiều dài làm theo yêu cầu - Giao hàng trong ngày
Tính năng:
1. Loss optical performance to meet data center power budgets 2. IEC, EIA/TIA or Telecordia compliant 3. 100% optical inspection and testing 4. Standard and Reduced Bend Sensitivity OM3, OM4 and OS2 Fiber types 5. Available in different lengths and colors
Mô tả
Dây nhảy quang Multimode MM MTRJ-MTRJ Duplex, phi 2.0mm
Chiều dài làm theo yêu cầu - Giao hàng trong ngày
Tính năng:
1. Loss optical performance to meet data center power budgets
2. IEC, EIA/TIA or Telecordia compliant
3. 100% optical inspection and testing
4. Standard and Reduced Bend Sensitivity OM3, OM4 and OS2 Fiber types
5. Available in different lengths and colors
Construction
Items
Description
Connector Type
FC, SC, ST, MU, LC, MTRJ, E2000, /UPC,APC
Fiber Count
1, 2, 4, 6, 8, 12 & 24 Fiber
Fiber Mode
Single mode: OS2 9/125µm Multimode: OM1 62.5/125µm, OM2, OM3, OM4: 50/125µm
Branch Diameter
Φ2.0mm ，φ3.0mm
Optical performance（LC/SC/FC/ST/MU/SMA/MTRJ/E2000）
Type
Unit
Description
Model
--
SM
MM
Polish
（dB）
UPC
APC
UPC
PC
Insertion Loss
（dB）
≤0.3
≤0.3
≤0.3
≤0.3
Return Loss
（dB）
≥50
≥60
≥30
--
Cable Diameter
--
Φ3.0，Φ2.0，Φ0.9
Geometry parameters
Type
Unit
Description
PC
APC
SC
MU/LC
SC
MU/LC
Radius of curvature
(mm)
10 - 25
7-25
5-12
Fiber Height
(nm)
-100 - +50
-100 - +50
Apex offset
(nm)
Max 50
Max 50
Angle(Degree)
(°)
--
8±0.5
