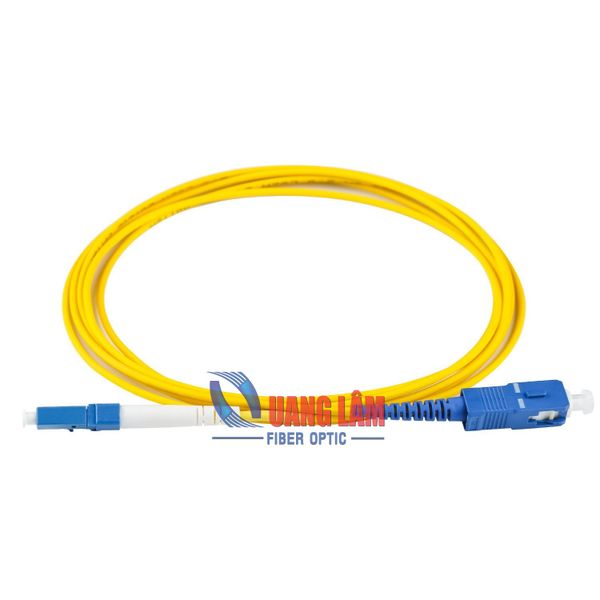

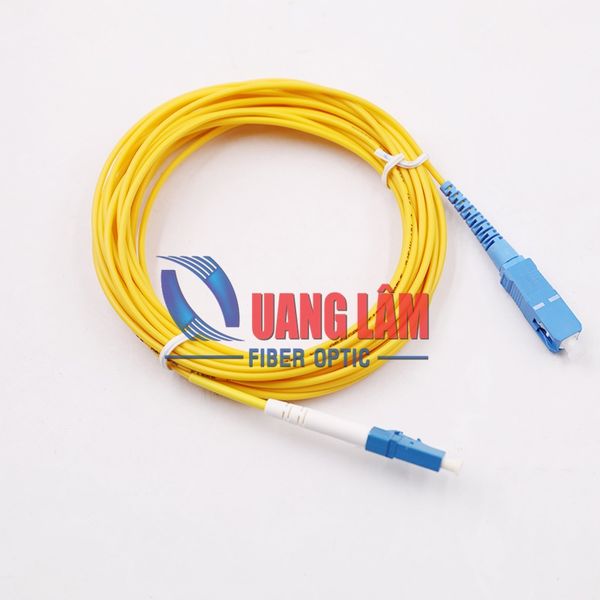

Dây nhảy quang đơn mốt SC/UPC-LC/UPC, Simplex, Phi 2.0/3.0mm
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
|Connector Type||SC to LC||Polish Type||UPC to UPC|
|Fiber Mode||OS2 9/125μm||Wavelength||1310/1550nm|
|Insertion Loss||≤0.3dB||Return Loss||≥60dB|
|Fiber Grade||G.652D||Minimum Bend Radius||10mm|
|Attenuation at 1310 nm||0.36 dB/km||Attenuation at 1550 nm||0.22 dB/km|
|Fiber Count||Simplex||Cable Diameter||2.0mm/3.0mm|
|Cable Jacket||PVC||Polarity||A(Tx) to B(Rx)|
|Operating Temperature||-20~70°C||Storage Temperature||-40~80°C|
