110V ~ 220V AC Input
Rate Output Voltage
2*20A Load, 1*20A BATT
WebUI Remote Manage (only SUM01A)

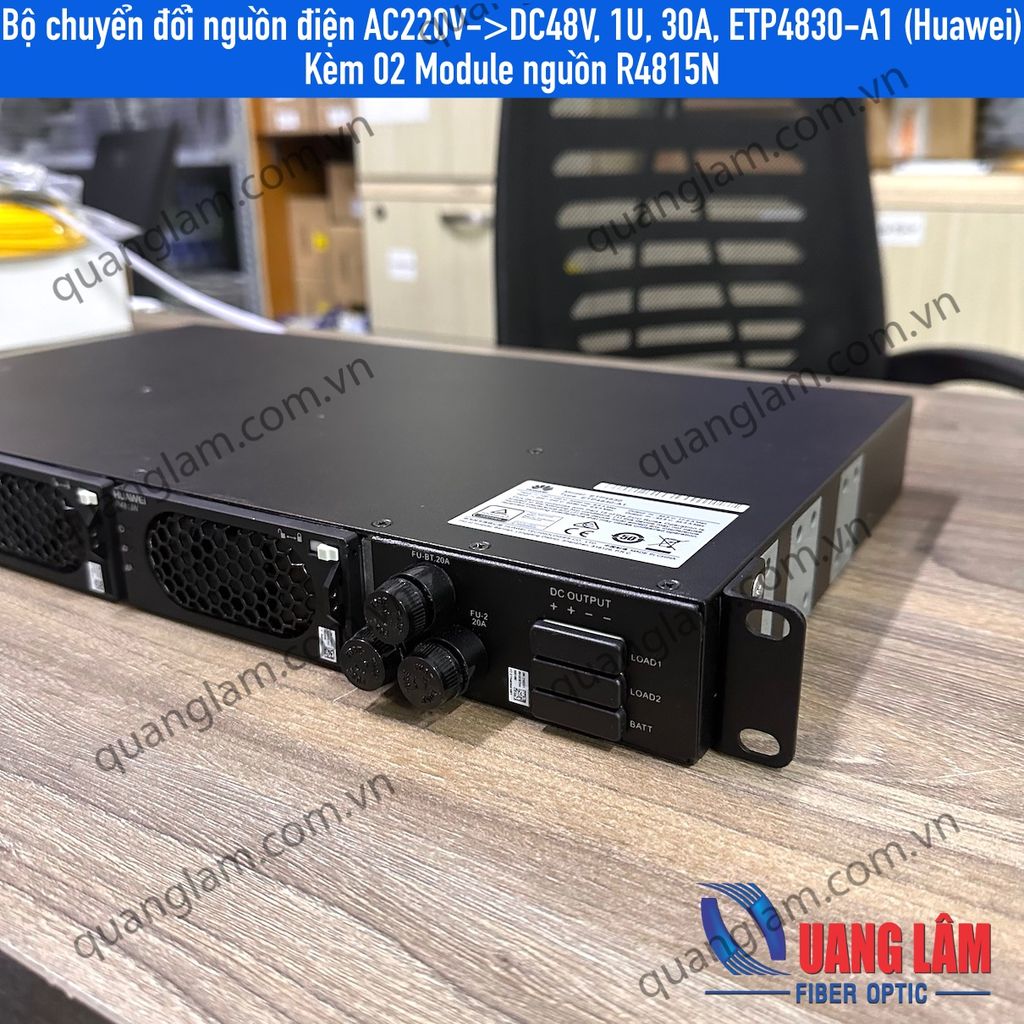

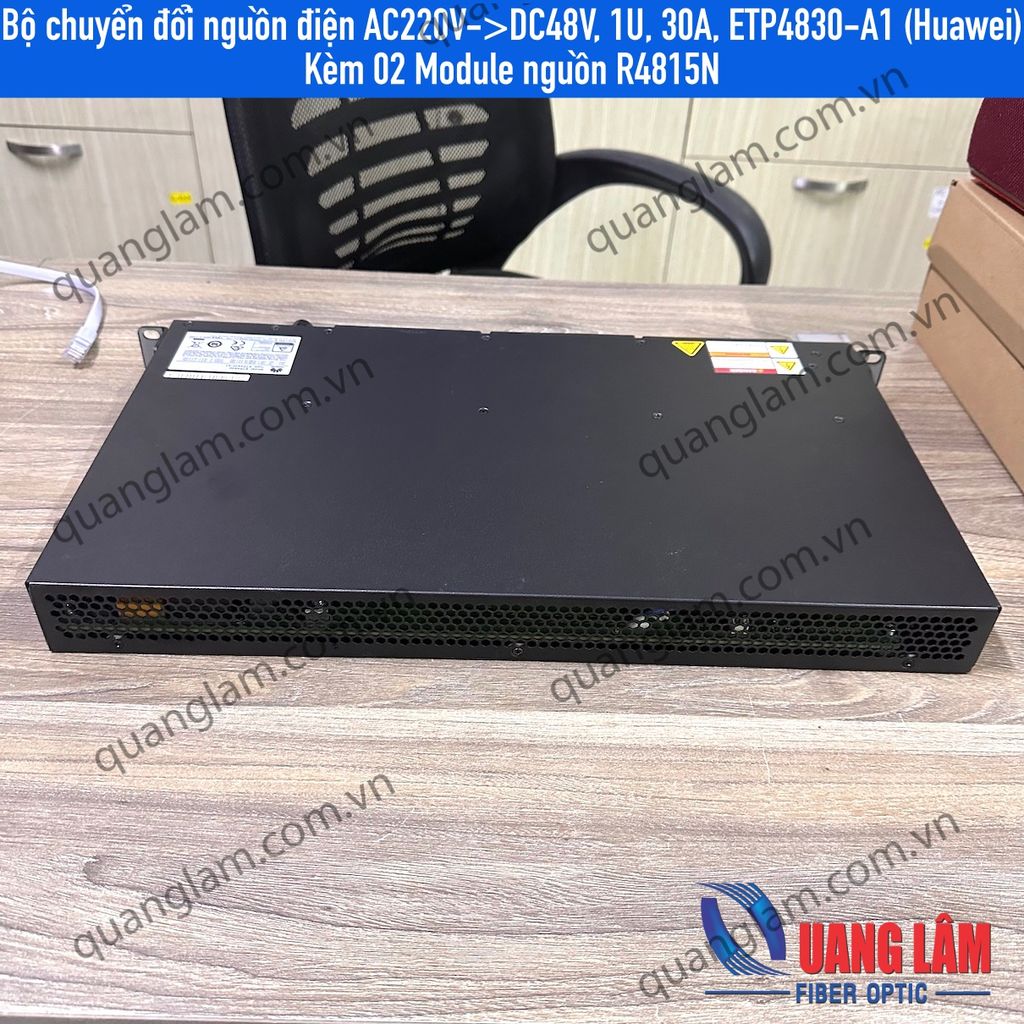

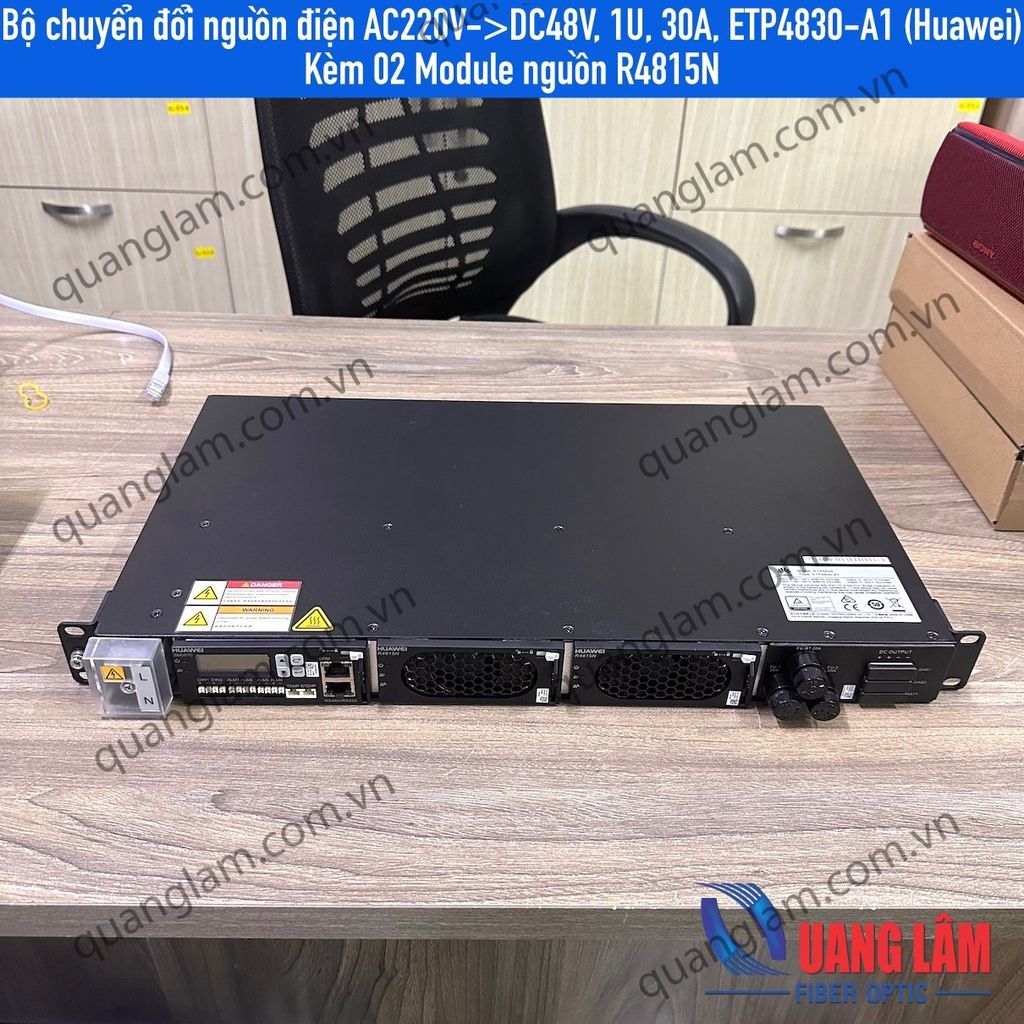

- ETP4830-A1 Subrack
- 2*R4815N 15 A Rectifiers

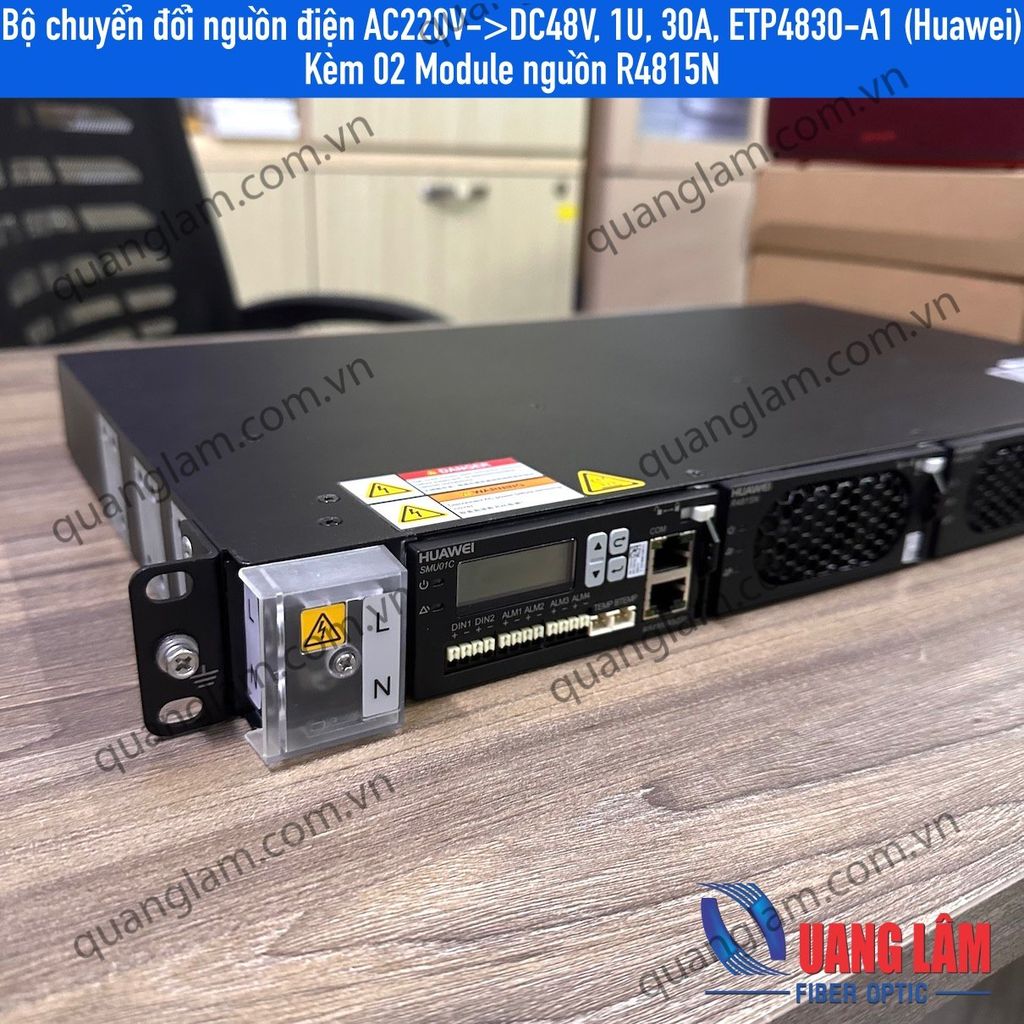

- 1*SMU01C (SMU01A/SMU01B) Monitor Module
- 1* Pre-connected Europe Power Cable
Supports a wide voltage range of 85 V AC to 300 V AC.
Provides comprehensive battery management.
Supports SMU01A, SMU01B, SMU01C Monitor module.
Supports WebUI remote management, only in SMU01A.
The SMU01B can connect to the U2000 over Huawei master/slave protocols.
Displays information on a LCD and provides buttons for operations.
Supports electronic labels.
Rectifiers and the site monitoring unit (SMU) are hot-swappable.
Apply for Huawei OLT, Huawei OSN, Huawei Router and Huawei Switch.
ETP4830-A1 can convert from 220V or dual-wire of 110V input to stabilized - 48V DC output. It can also be configured with 48V/15A rectifiers and provide 30A output. All the function units have standard sized design with 1U. ETP4830-A1 can be embedded in 19-inch rack or cabinet or other scenarios. The system can provide excellent performance such as intelligent battery management, remote monitoring, etc.
|AC Input mode||230 V AC single-phase three-wire (L, N), compatible with 230 V AC dual-live-wire (L,L)|
|AC Input frequency||45–66 Hz (rated frequency: 50/60 Hz)|
|Power factor||≥ 0.99 (100% load)|
|Input voltage frequency||45 Hz to 65 Hz|
|DC Output voltage range||-42 V DC- -58 V DC|
Maximum output power (W)
|Surge protection capability||2 kV in differential mode|
4 kV in common mode
|Weight (kg)||≤8 (fully loaded)|
|Operating temperature||-40ºC to +70ºC|
|Operating humidity||5%–95% RH (non-condensing)|
|Storage humidity||5%–95% RH (non-condensing)|
