• Provides 2 ×Gigabit fiber ports and 8× Gigabit copper ports

• Fanless design, IP40 protection level,iron shell

• Supports dual power supply redundant to improve reliability

• Industrial EMC level 4 standard

• Standard command-line interface (CLI) +WEB interface, rapid configuration of network functions

• Supports WT-Ring (recovery time <20ms) and STP/RSTP ring network protection

• SNMP V1/V2c/V3

• Supports factory reset with one click

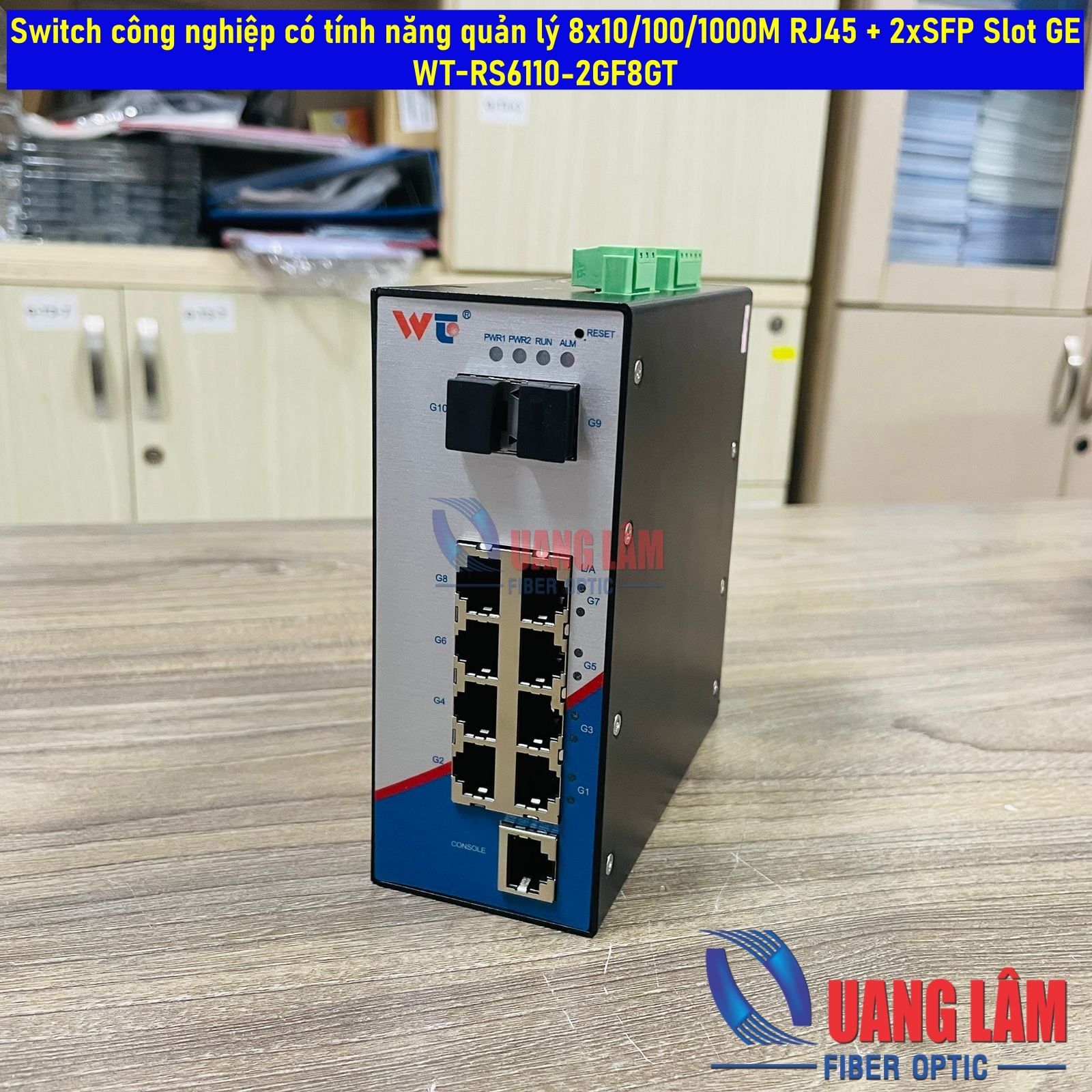

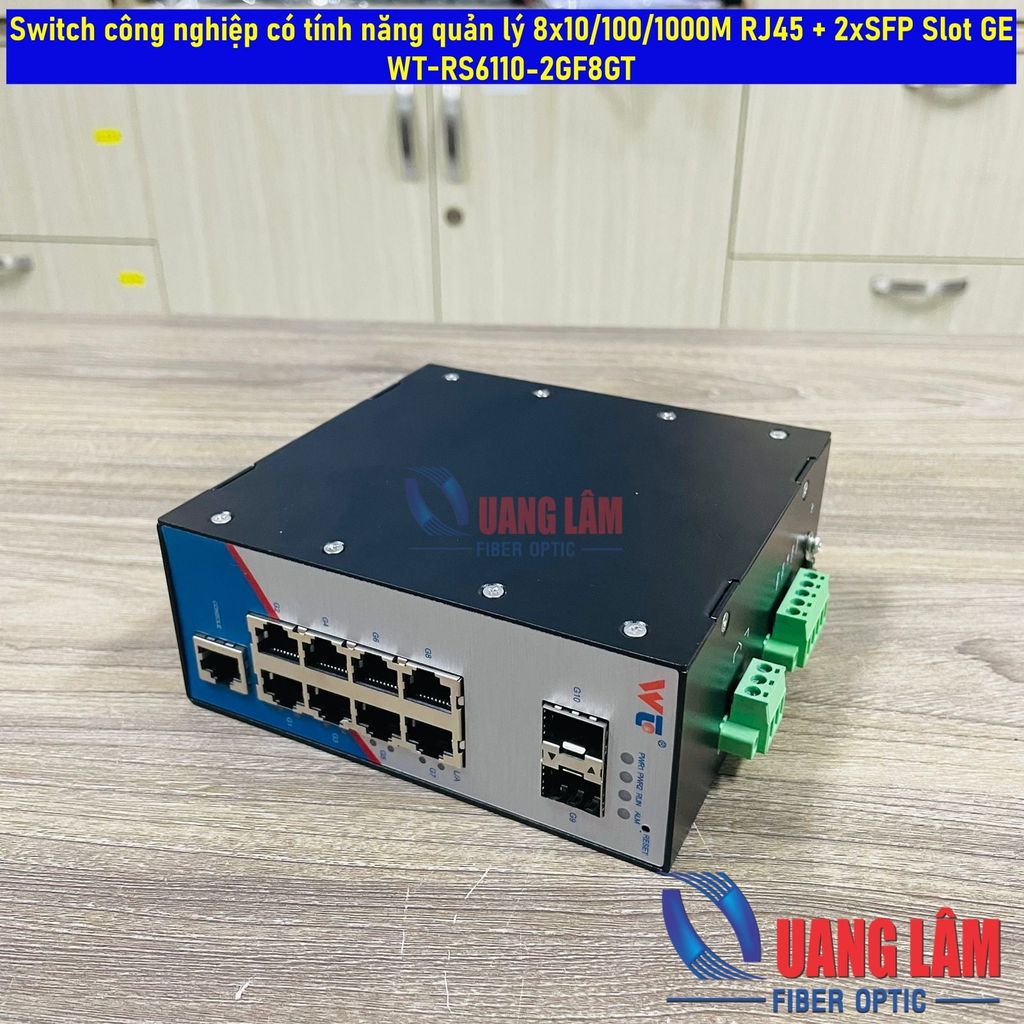

WT-RS6110-2GF8GT is a DIN-rail managed industrial Ethernet switch that provides 2× Gigabit fiber ports and 8 ×Gigabit copper ports. It adopts fanless, low-power, industrial-grade design with an IP40 protection level. Operating within a temperature range of -40 to 75°C, it boasts exceptional ruggedness, specifically designed for communication networks in harsh environments, with high EMI/EMS protection capabilities.

Each product has undergone 100% aging tests to ensure quality. It supports advanced management and security features such as IGMP snooping, IEEE 802.1Q VLAN, QoS, port mirroring, SNMP, RMON, etc. Additionally, features like Link Aggregation, WT-Ring, STP/RSTP are available for redundancy backup, enhancing network reliability and availability.

• Supports the 802.1Q VLAN of 4K range;
• IGMP Snooping for filtering multicast traffic;
• Supports SSH remote secure management configuration;
• Supports 1 relay output, support power supply, port, temperature alarm;
• QoS (IEEE 802.1p and DSCP) improves data transfer certainty;
• RMON provides more effective network monitoring and predictive capabilities
• Port mirroring feature assists in troubleshooting online.
• Supports IP+MAC binding;
• Port aggregation increases bandwidth and enhances the reliability of network connection
• Spanning Tree Protocol STP/RSTP ring redundancy
• Port loop detection reduces the impact of access loop on the entire network

Product properties:

Applicable standards

IEEE 802.3 10BaseT   IEEE 802.3u 100BaseT

IEEE 802.3z/ab       IEEE 802.3x flow control

IEEE 802.1d-2004 STP protocol

IEEE 802.1w RSTP protocol

IEEE 802.1p Qos     IEEE 802.1q VLAN

IEEE 802.3ad

Protocols

IGMP Snooping,SNMPv1/v2c/v3,TFTP,NTP,SNTP, RMON, HTTP,HTTPS,SSH,Telnet,Syslog,LLDP,LACP,WT-Ring,STP,

RSTP,EEE

Switching feature

Qos queue: 8                                             VLAN-ID: 1-4094

Back plane bandwidth: 20 Gbps                   List of MAC addresses: 8K

Message buffer size: 4Mbit              Jumbo Frame: >9K

Port

Console port: RS-232 (port type: RJ45 slot)

Fiber port: 1000Mbps (port type: SFP slot)

Copper port: 10/100/1000Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.

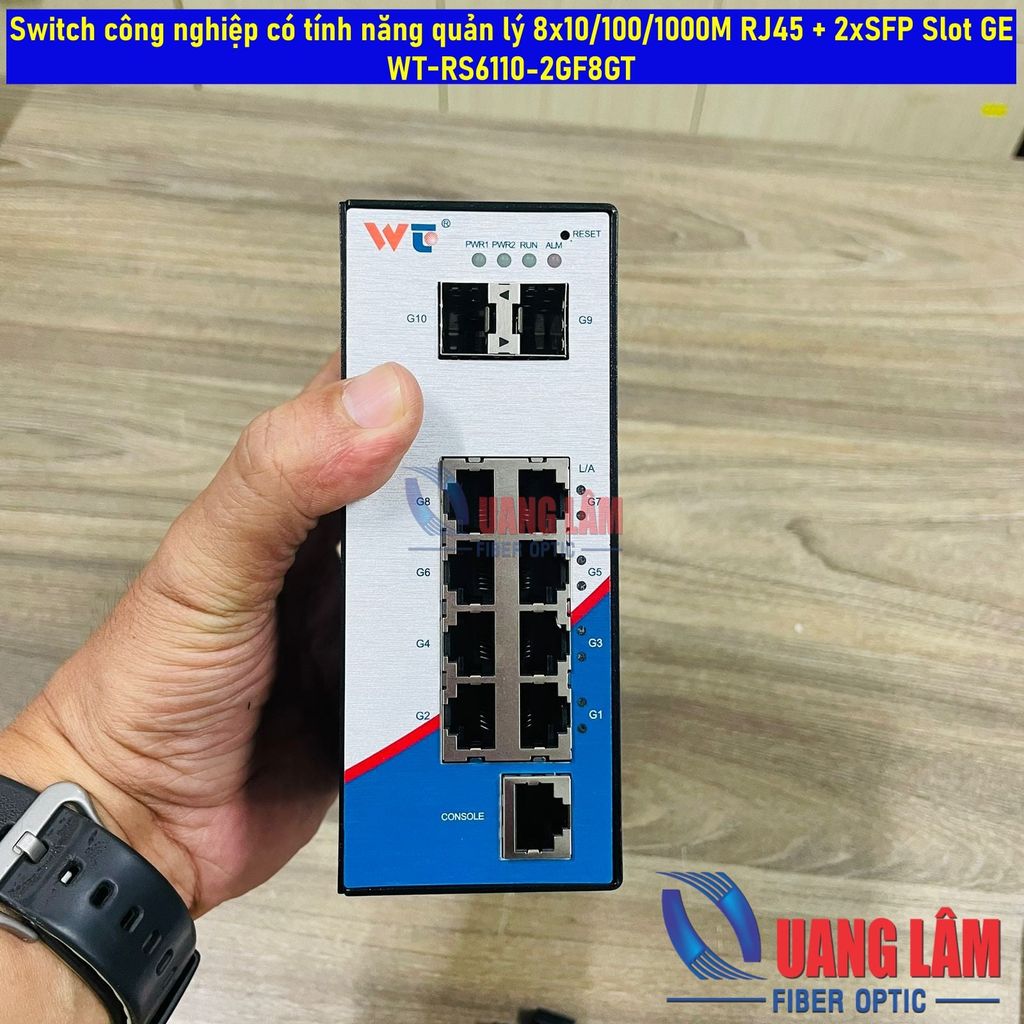

LED indicator: PWR, ALM, RUN, Link/Act, SPD

Power source requirement

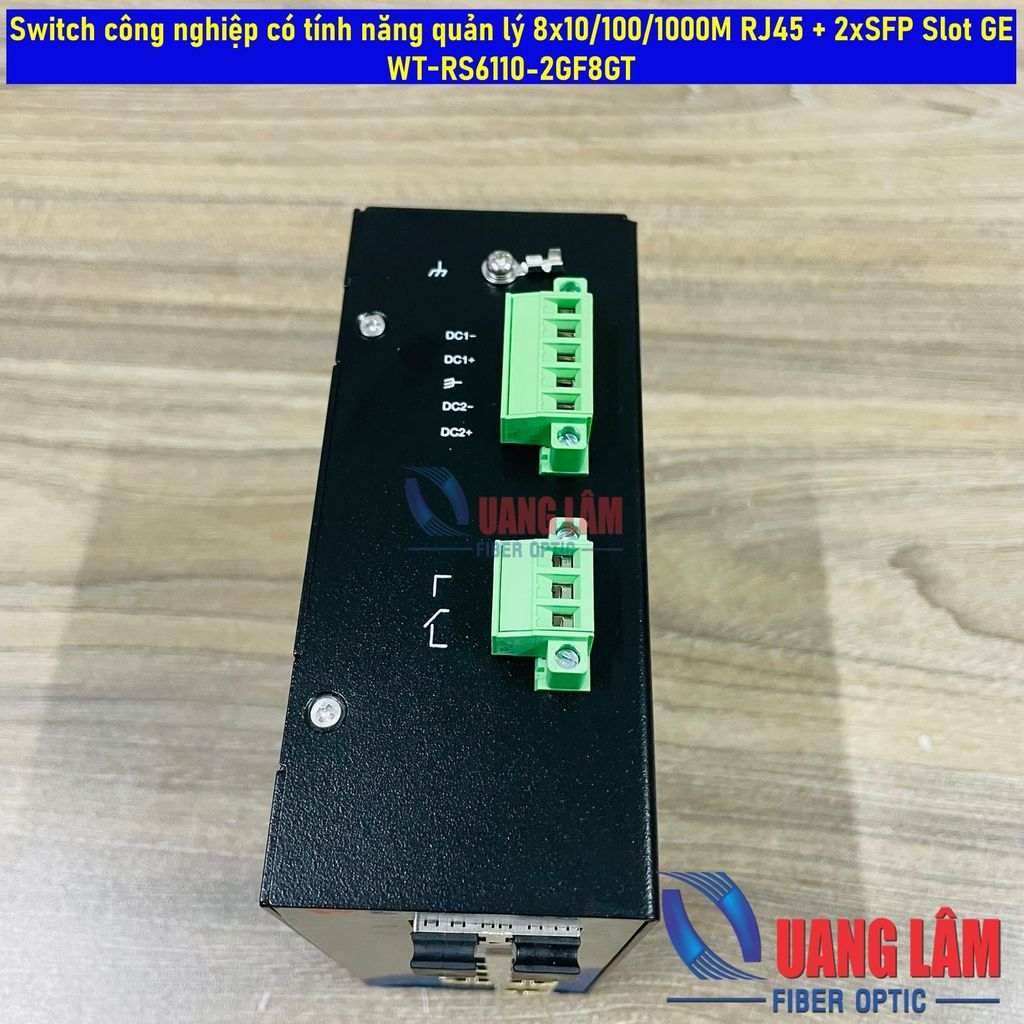

Input voltage: Supports dual power redundant, DC9~48V

Power consumption

Full-load power consumption≤10W

Physical properties

Enclosure: Iron shell, IP40-rated protection

Size: 135mm*128mm*55mm

Weight: 850 g

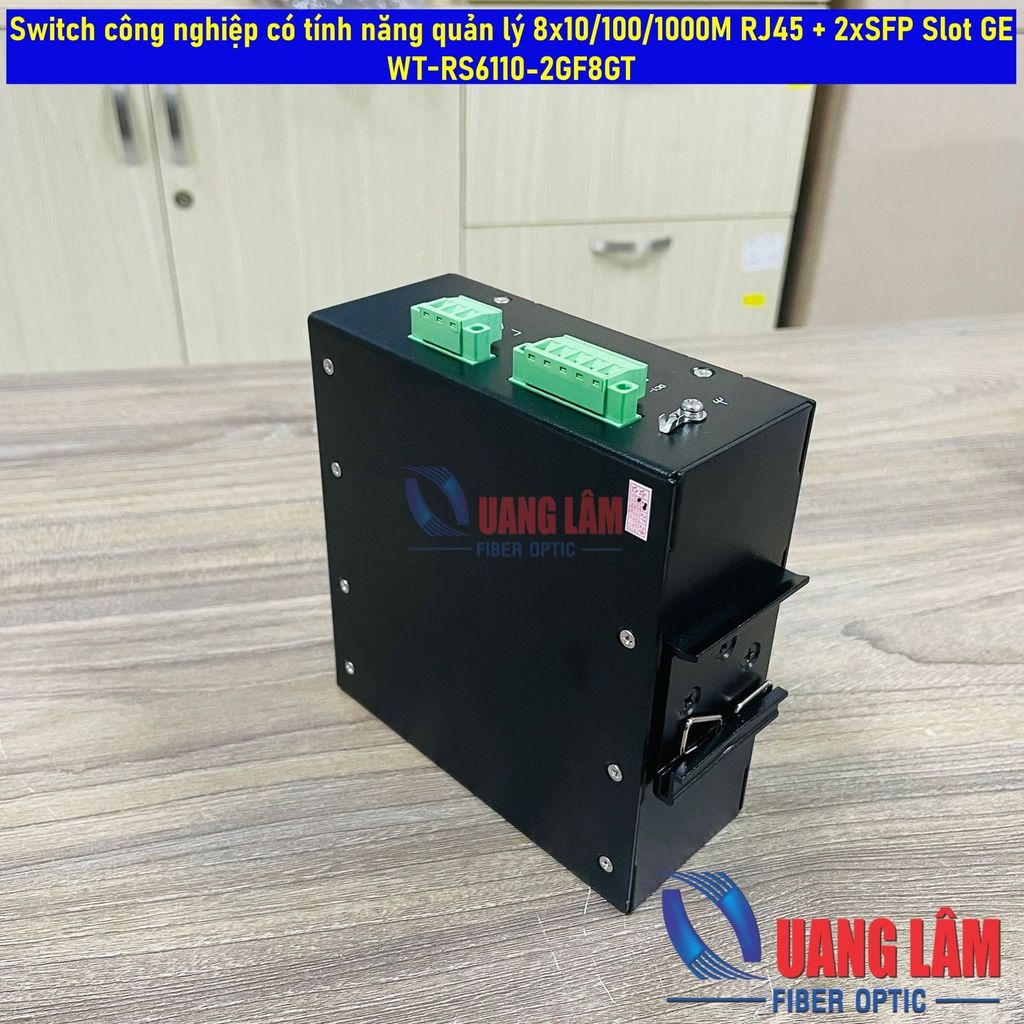

Mounting method: DIN rail

Environmental restrictions

Working temperature: -40 ~ 75°C (-40 ~ 167°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMI: FCC Part 15/CISPR22（EN55022）：Class A

EMS: IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4,       IEC 61000-4-6 (CS) Level 3

Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32

Certification: CE, FCC, RoHS

MTBF (mean time between failures)

Time: 500000 h

Warranty

Quality assurance: 1 years
