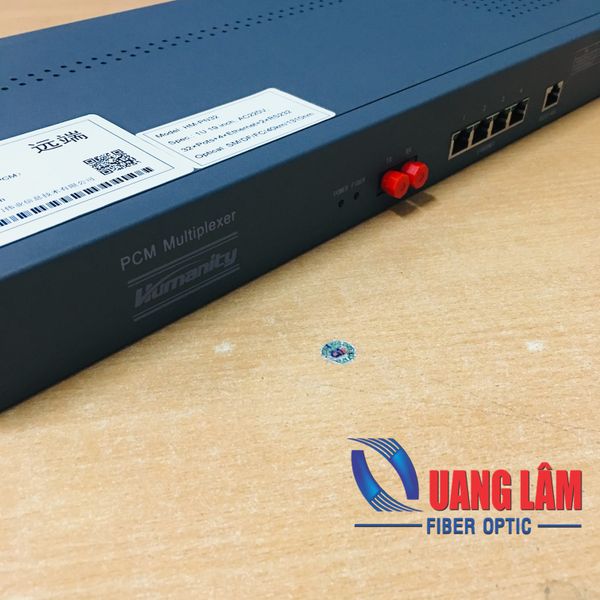

Thiết bị ghép kênh PCM 32FXO/FXS + 4xEthernet 10/100M + 2xRS232 sang quang, P/N: HM-PN32
HM-PN32 32FXO/FXS PCM Multiplexer realizes 32xFXO/FXS(pots)+4x100M Ethernet+2xRS232 over fiber. Main Feature:
Optical
Default: FC, dual fiber, single mode, 40km, 1310nm.
Optical module is option when in order.
Rate: 150Mbps
Phone
(hotline or FXO/FXS)

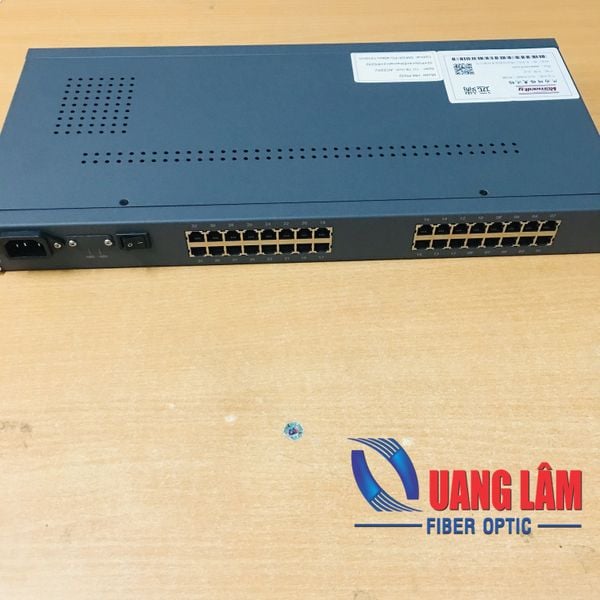

Connector: 32x RJ11
Impedance: 200Ω+680Ω‖0.1uF
Frequency character: 300-3400Hz（-0.6-+3dB）
Weighted noise: ≤-65dBmop
Interface loop resistance: ≤1800Ω
Ethernet
4 Ethernet
Connector: 4xRJ45
Share 100M
RS232
Maximum 2 channel RS232
Connector: 1xRJ45
Transmitting output voltage: ±15V
Receiving input voltage: ±15V
The maximum rate of transmitting and receiving: 115.2Kbps
Power
AC or DC power option
Environment
Working temperature: 0 ~ 70℃
Relative humidity: ≤90%(25℃)
1,320,000₫
1,450,000₫
2,400,000₫
2,700,000₫
2,420,000₫
140,000₫
550,000₫
3,600,000₫
Liên hệ
7,000,000₫
5,500,000₫
2,450,000₫
Chat với chúng tôi
9%
11%
Mô tả
Thiết bị ghép kênh PCM 32FXO/FXS + 4xEthernet 10/100M + 2xRS232 sang quang, P/N: HM-PN32
HM-PN32 32FXO/FXS PCM Multiplexer realizes 32xFXO/FXS(pots)+4x100M Ethernet+2xRS232 over fiber.
Main Feature:
Optical
Default: FC, dual fiber, single mode, 40km, 1310nm.
Optical module is option when in order.
Rate: 150Mbps
Phone
(hotline or FXO/FXS)
Connector: 32x RJ11
Impedance: 200Ω+680Ω‖0.1uF
Frequency character: 300-3400Hz（-0.6-+3dB）
Weighted noise: ≤-65dBmop
Interface loop resistance: ≤1800Ω
Ethernet
4 Ethernet
Connector: 4xRJ45
Share 100M
RS232
Maximum 2 channel RS232
Connector: 1xRJ45
Transmitting output voltage: ±15V
Receiving input voltage: ±15V
The maximum rate of transmitting and receiving: 115.2Kbps
Power
AC or DC power option
Environment
Working temperature: 0 ~ 70℃
Relative humidity: ≤90%(25℃)
