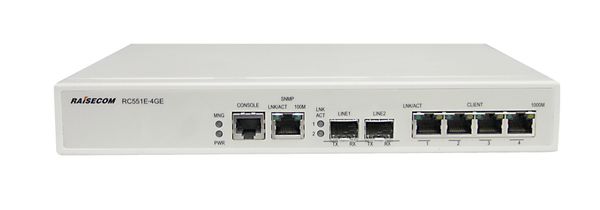

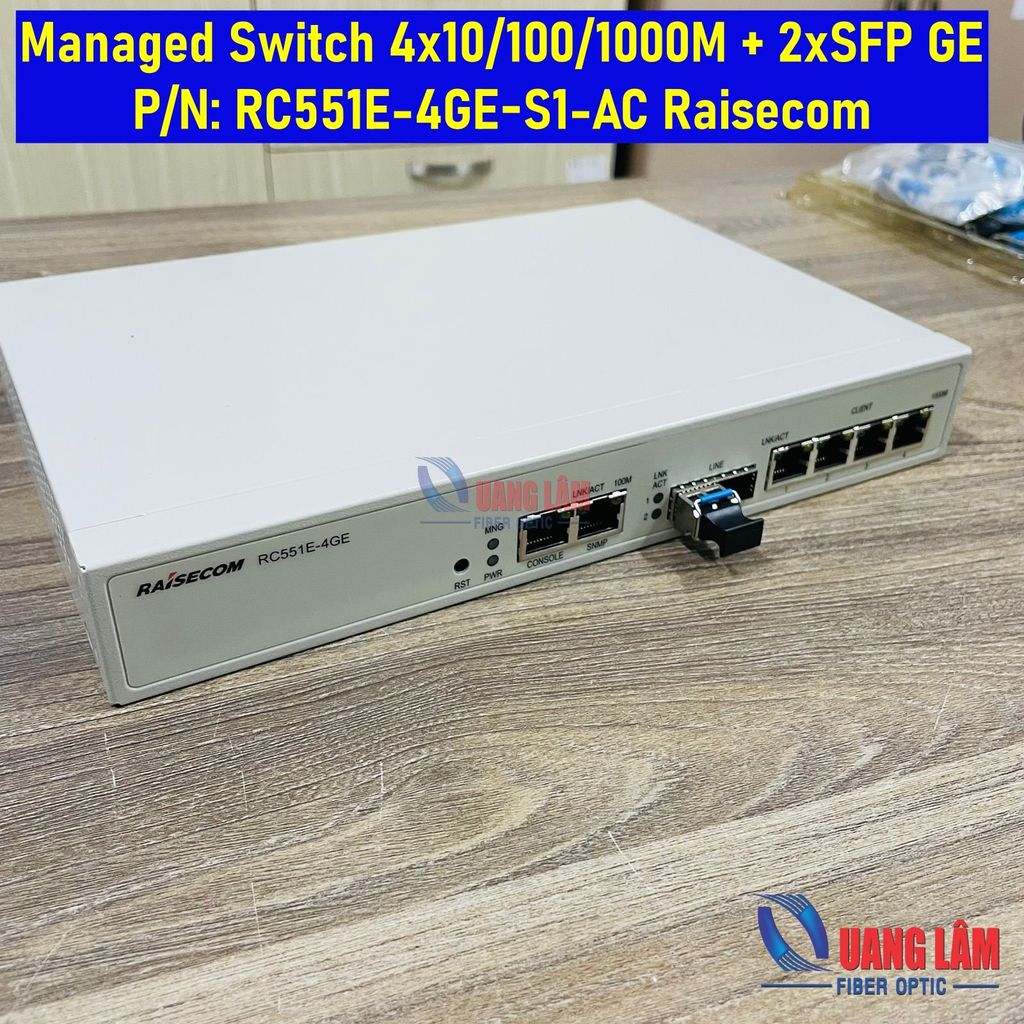

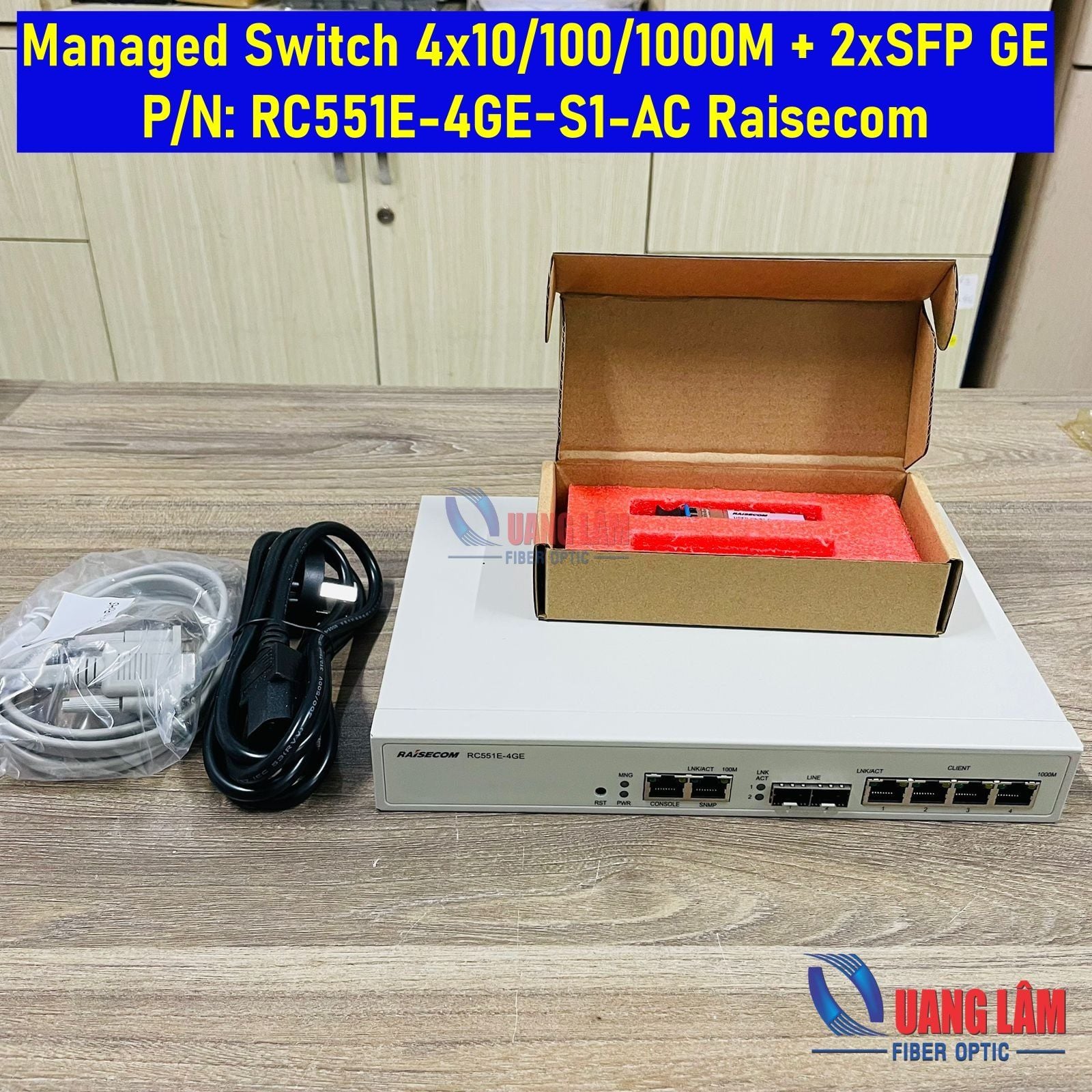

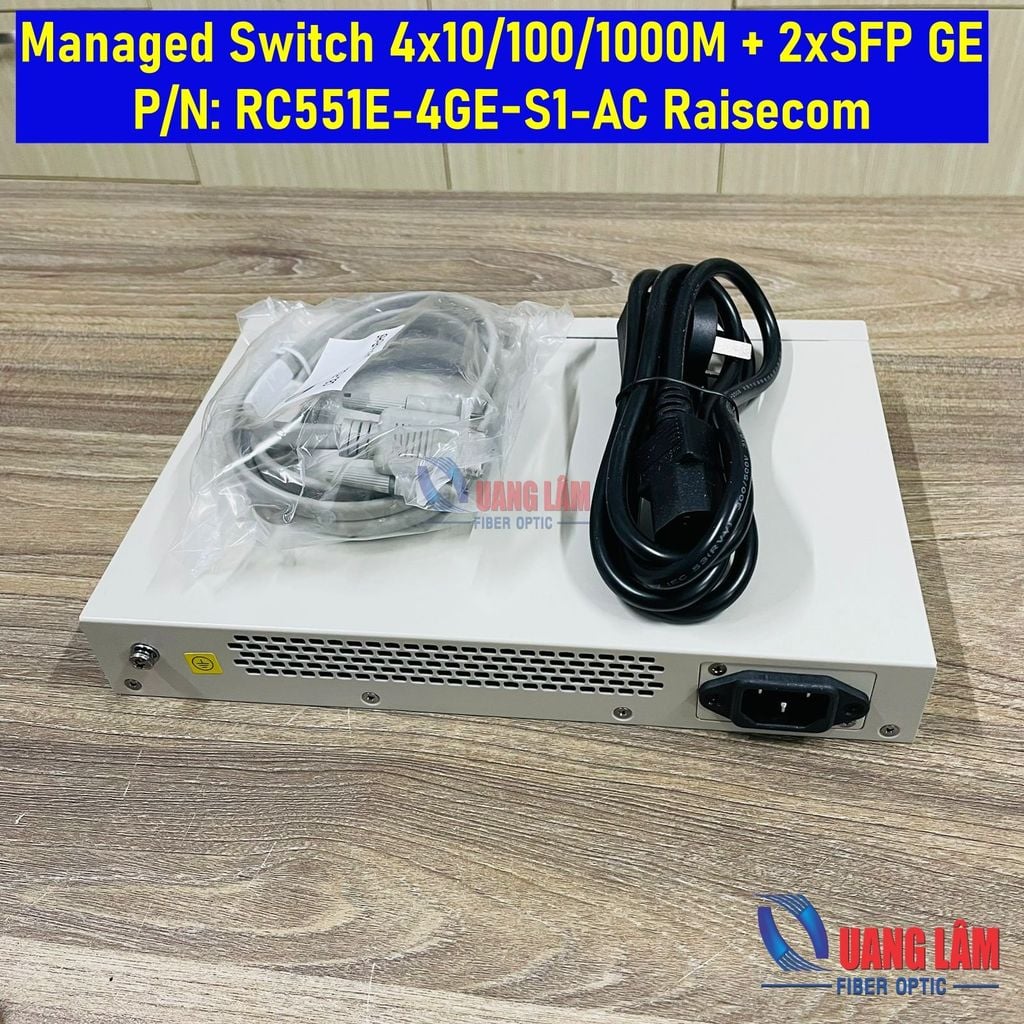

RC551E-4GE Intelligent Ethernet Demarcation Device (Raisecom)
Network Interface Redundancy
- Link aggregation (1+1) based on 802.3ad
- Dual homing (1:1), allowing RC551-4GE to be connected to two different upstream devices.
VLAN 4K active IEEE802.1Q VLAN
VLAN forwarding, swapping, and stacking (Q-in-Q), flexible Q-in-Q
Port rate limiting - Based on ingress and egress of each port, different increments at different
rates: 64Kbps (0~1M)/1Mbps (1~100M)/10Mbps (100~1000M)
- Port-based rate limiting
- User Based Rate Limiting: rate limit each unique flow to an individual rate.
for example, based on VLAN
