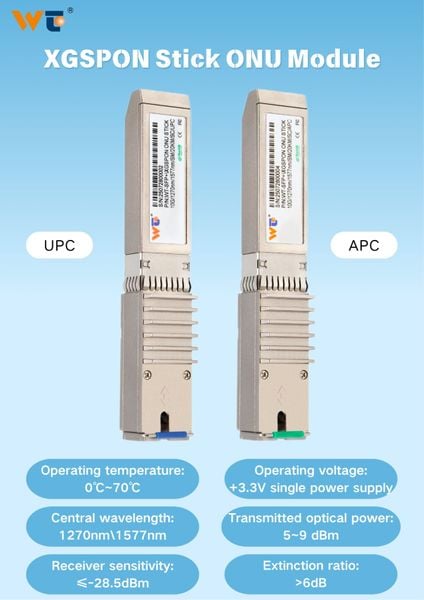

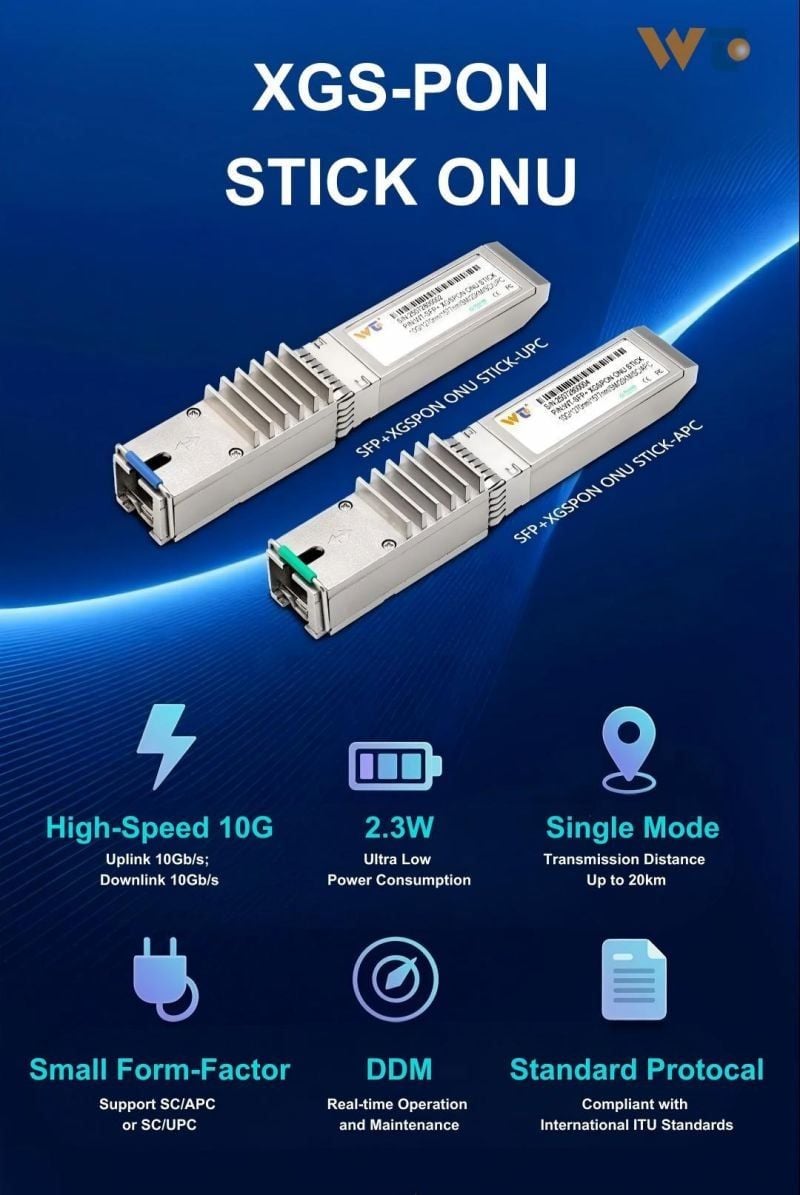

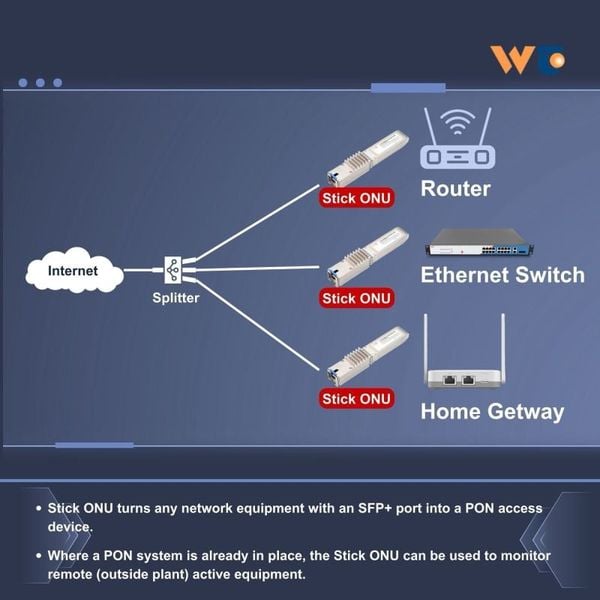

The XGS-PON ONU stick transceiver is an Optical Network Terminal (ONT) with Small Form-factor Pluggable (SFP+) packaging. The XGS-PON ONU stick integrates a bi-directional (max 10Gbit/s) optical transceiver function and 2nd layer function. By being plugged into the customer premise equipment (CPE) with standard SFP port directly, the XGS-PON ONU stick provides multi-protocol link to the CPE without requiring separate power Supply.
The transmitter designed for single mode fiber and operates at wavelength of 1270nm. The transmitter uses a DFB laser diode and fully compliant with IEC-60825 and CDRH class 1 eye safety. It contains APC functions, a temperature compensation circuit to ensure compliance with ITU-T G.9807 requirements at operating temperature.
The receiver section uses a hermetic packaged APD-TIA (APD with trans-impedance amplifier) and a limiting amplifier. The APD converts optical power into electrical current and the current is transformed to voltage by the trans-impedance amplifier. The differential signals are produced by the limiting amplifier. The APD-TIA is AC coupled to the limiting amplifier through a low pass filter.
The XGS-PON ONU stick supports a sophisticated ONT management system, including alarms, provisioning, DHCP and IGMP functions for a stand-alone IPTV solution at the ONT. It can be managed from the OLT using G.988 OMCI.
Product Features
Single Fiber XGS-PON ONU Transceiver
1270nm burst-mode 9.953 Gb/s transmitter with DFB laser
1577nm continuous-mode 9.953Gb/s APD-TIA receiver
SFP+ package with SC APC/UPC receptacle connector
Digital diagnostic monitoring (DDM)with internal calibration
0 to 70°C operating case temperature
+3.3V separated power supply, low power dissipation
Compliant with SFF-8431/SFF-8472/ GR-468
MIL-STD-883 compliant
FCC Part 15 Class B/EN55022 Class B (CISPR 22B)/ VCCI Class B compliant
Class I laser safety standard IEC-60825 compliant
RoHS-6 compliance
Software Features
Compliant with ITU-T G.988 OMCI Management
Support 4K MAC entries
Support IGMPv3/MLDv2 and 512 IP multicast address entries
Support advanced data features such as VLAN tag manipulation, classification and filtering
Support ToD / 1PPS
Support“Plug-and-play”via auto-discovery and Configuration
Support Dying Gasp notification
Support Rogue ONU Detecting
Data transferring at wire-speed for all packet size
