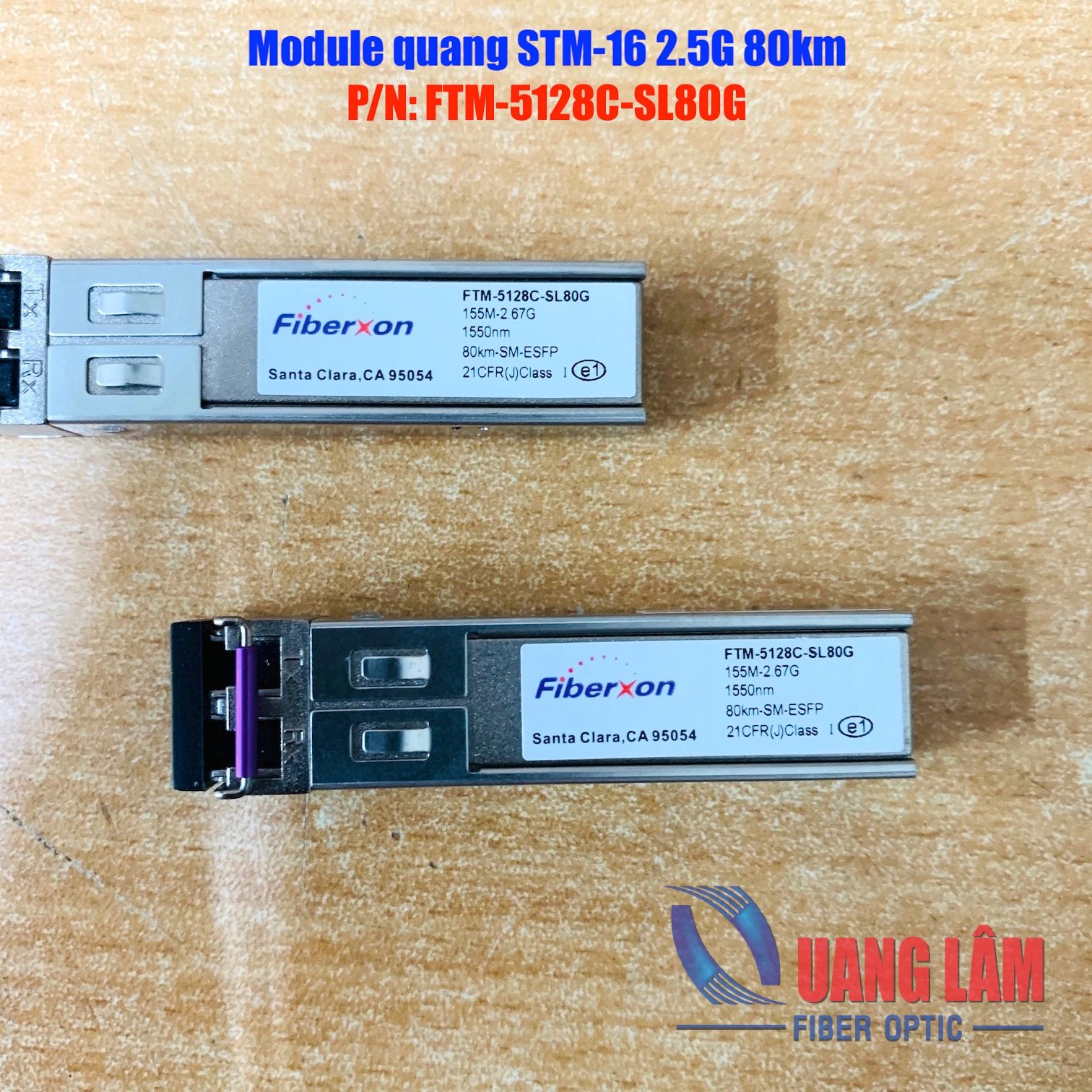

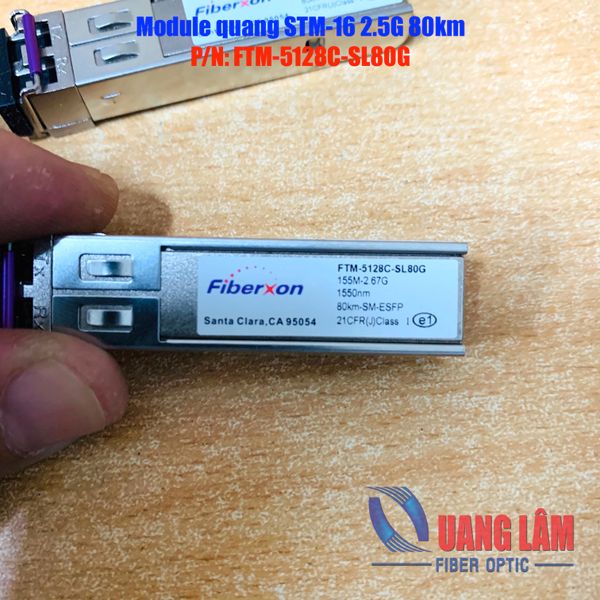

Module quang STM-16 2.5G 80km Fiberxon FTM-5128C-SL80G

• Support 155M～2.67Gbps multi-rate data links
• 1310nm uncooled DFB laser and APD photodiode for 40km transmission ‹
• 1550nm uncooled DFB laser and APD photodiode for 80km transmission ‹
• Digital diagnostic monitor interface compatible with SFF-8472 ‹
• SFP MSA package with duplex LC connector ‹
• With Spring latch for high density application ‹
• Class I laser product ‹
• Hot-pluggable capability ‹
• Operating case temperature: 0 to +70℃

Applications ‹

• 1×/2× Fiber Channel ‹
• Gigabit Ethernet ‹
• SDH/SONET/ATM ‹
• Other optical links

Standard

• Compatible with SFP MSA ‹
• Compatible with SFF-8472 Rev 9.5 ‹
• Compatible with ITU-T G.957 and G.958 ‹
• Compatible with Telcordia GR-253-CORE ‹
• Compatible with FCC 47 CFR Part 15, Class B ‹
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I ‹
• RoHS compliant
