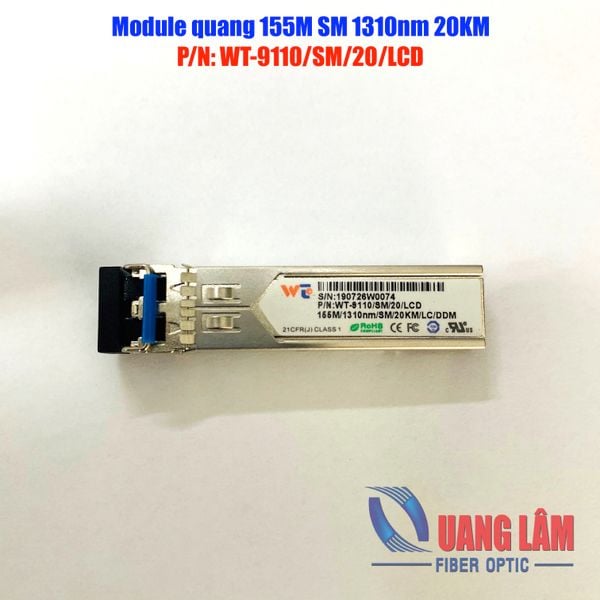

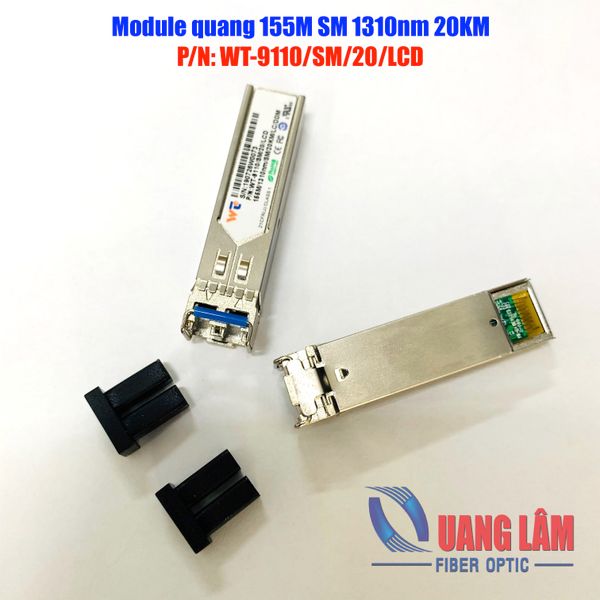

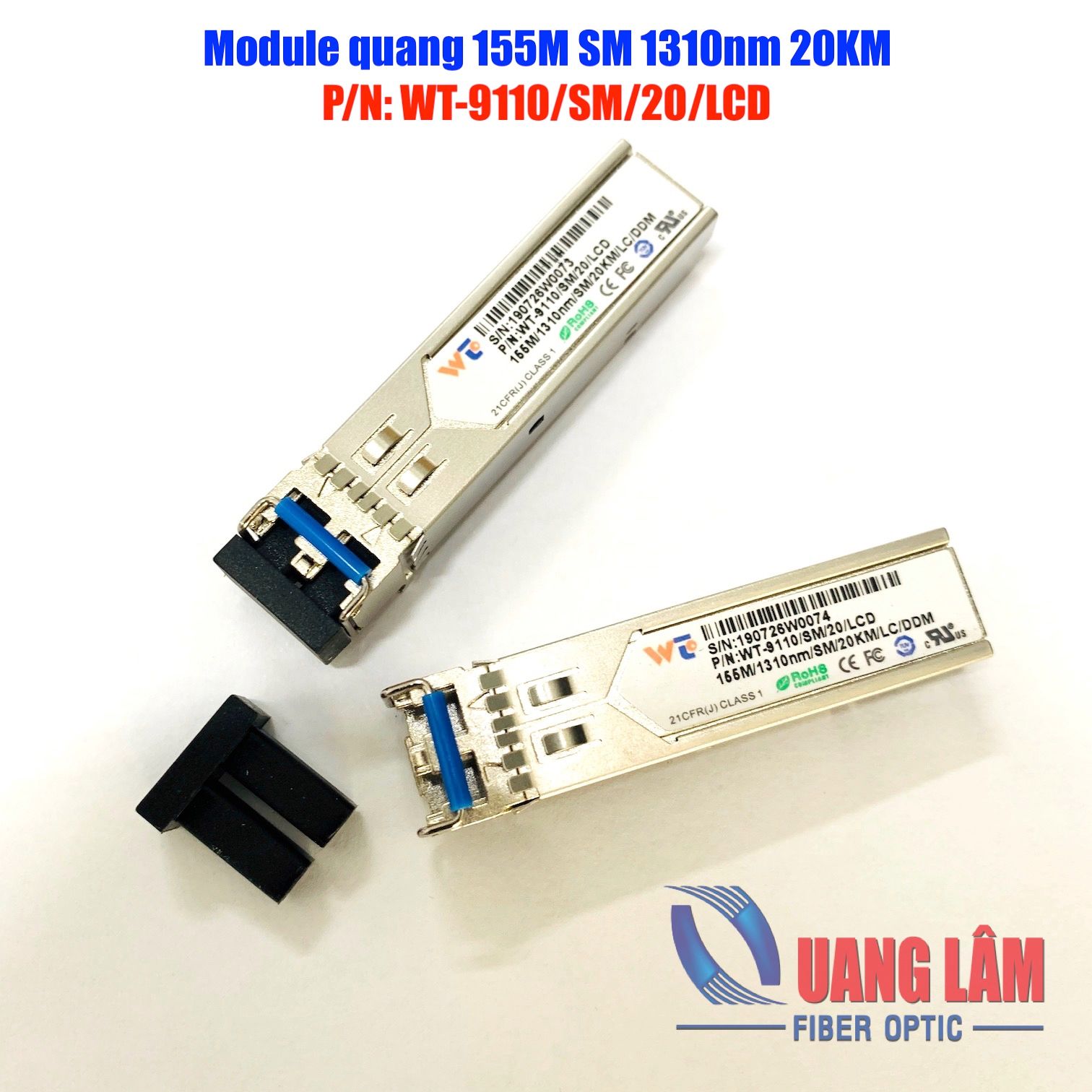

Module Quang SFP 155M MM 1310nm 20KM - WT-9110/SM/20/LCD

Features

• SFP standard package with LC connector, hot-pluggable capability
• Operating data rate 155Mbps
• 1310nm FP Laser and PIN photodetector
• Up to 20Km transmission on SMF
• Single +3.3V power supply
• LVPECL compatible data input/output interface
• Low EMI and excellent ESD protection
• Laser safety Class 1 standard IEC-60825 compliant
• Compatible with RoHS
• Compatible with MSA
• Compatible with SFF-8472 Digital Diagnostic Monitor
• Full compatible with Cisco, 3COM/HP, Extreme, Nortel, Huawei, Juniper, Alcatel-Lucent, etc brands worldwide.

Applications

• Fast Ethernet 1000Base-Lx NIC, Switching/hub and Router
• Telecom IEEE 802.3z
• Other Fiber Channels
