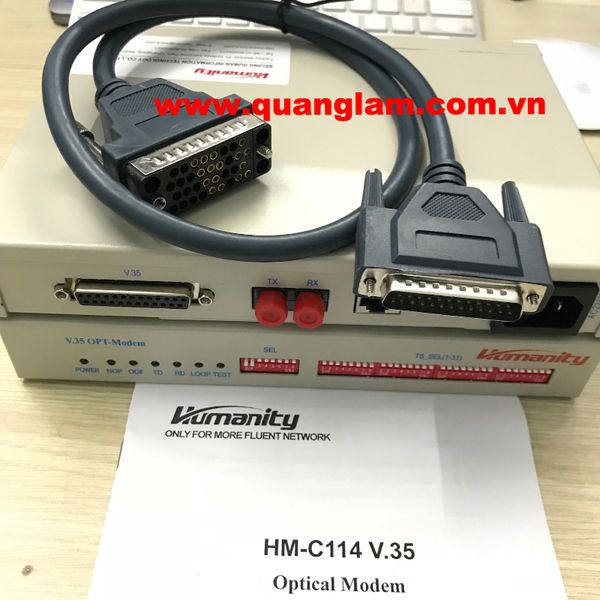

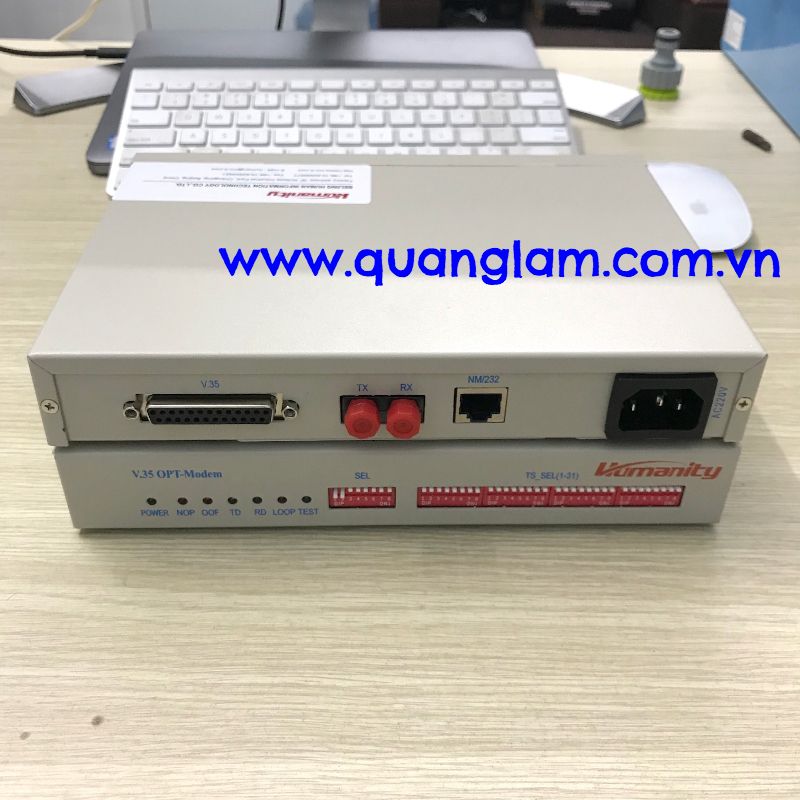

HM-C114 Humanity V.35 optical modem realizes V.35 transmission over fiber. It's default with dual fiber, single mode, 40km, FC. Features
Technical Parameters
V.35
Interface type: DB25
Interface mode: DCE
Rate: 64kbps to 2048kbps
Fiber interface
Default transmission mode: single mode
Default module type: dual fiber
Default interface type: FC.
Default optical wavelength: 1310nm
Default transmission distance: 15~45km
The connector and specifications can make according to customer’s requirement
RS232
RS232 data or *hyper terminal* option.

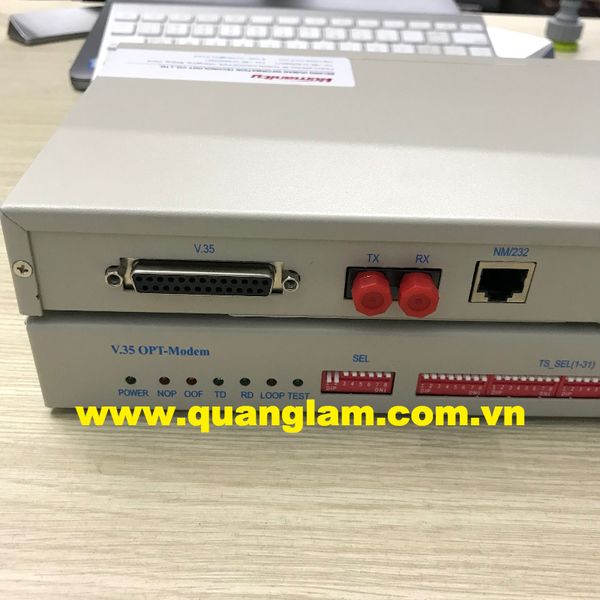

Indicator lights
POWER: for power
NOP: no optical alarm
OOF: lose of optical alarm
TD: the V.35 fiber modem data receiving status alarm
RD: the V.35 fiber modem data transmitting status alarm
LOOP: alarms for loop status
TEST: alarms for test status
DIP switch
SEL1: transparent or time slot mode
SEL2: timing mode
SEL3: time slot following control switch
SEL4: DTE device receiving data phase control
SEL5: local loop control
SEL6: diagnosis loop control
SEL7: remote loop control
SEL8: optical circuit testing switch
TS_SEL(1~31): choose the prefer slot for use
Power supply
Voltage: AC220V or DC-48V power
Power consumption: less than 3W
Environment
Operating temperature: 0°C~50°C
Storage temperature: 0°C~60°C
Humidity: 0~90% non-condensing
Power: AC220V or DC48V option
Application Diagram
