The Bare Fiber Adaptor enables quick and easy temporary FC connections of multi-mode fibers. This adaptor is very useful for connecting fibers to power meters. Optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.

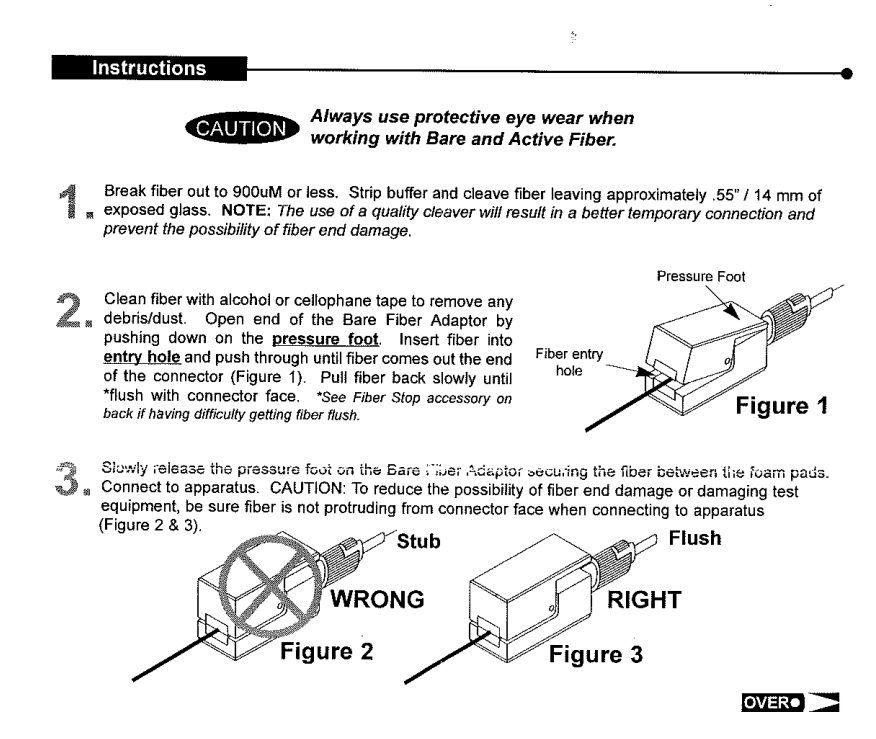

The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 μm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.
Connect Fibers Quickly to Important Equipment
These adapters are very useful for connecting fibers to power meters, optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.
Great Precision Up to 900 µm Fiber
Bare fiber is secured in place with a special precision cut foam pad to ensure kink- and diffusion-free operation and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated
13%
Mô tả

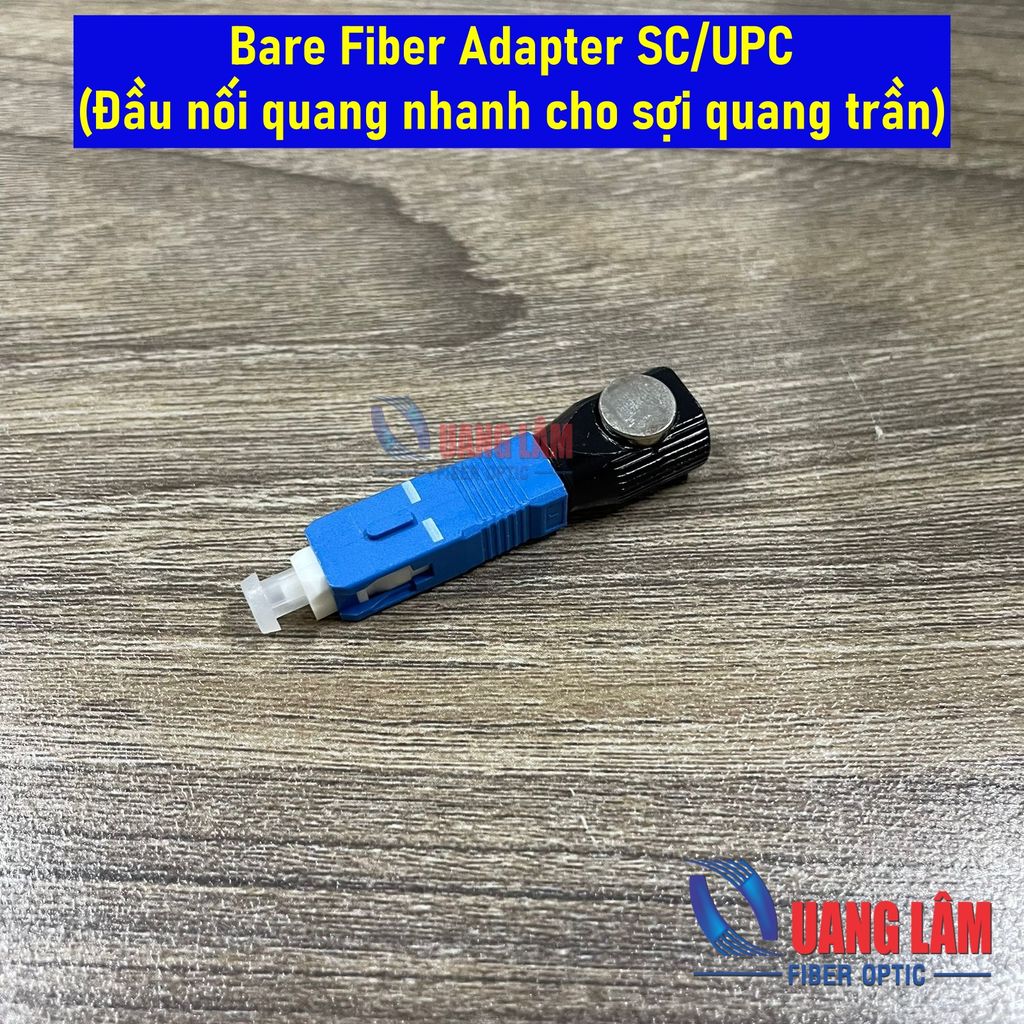

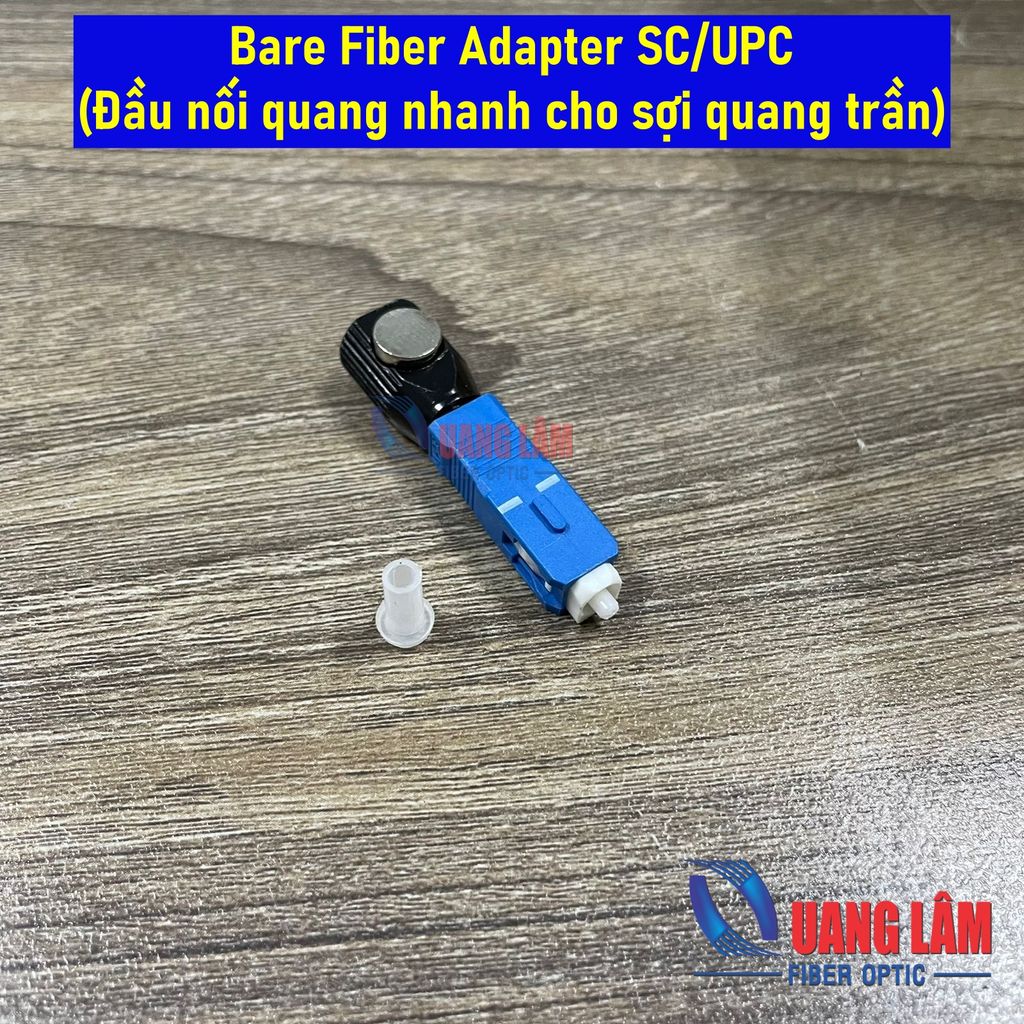

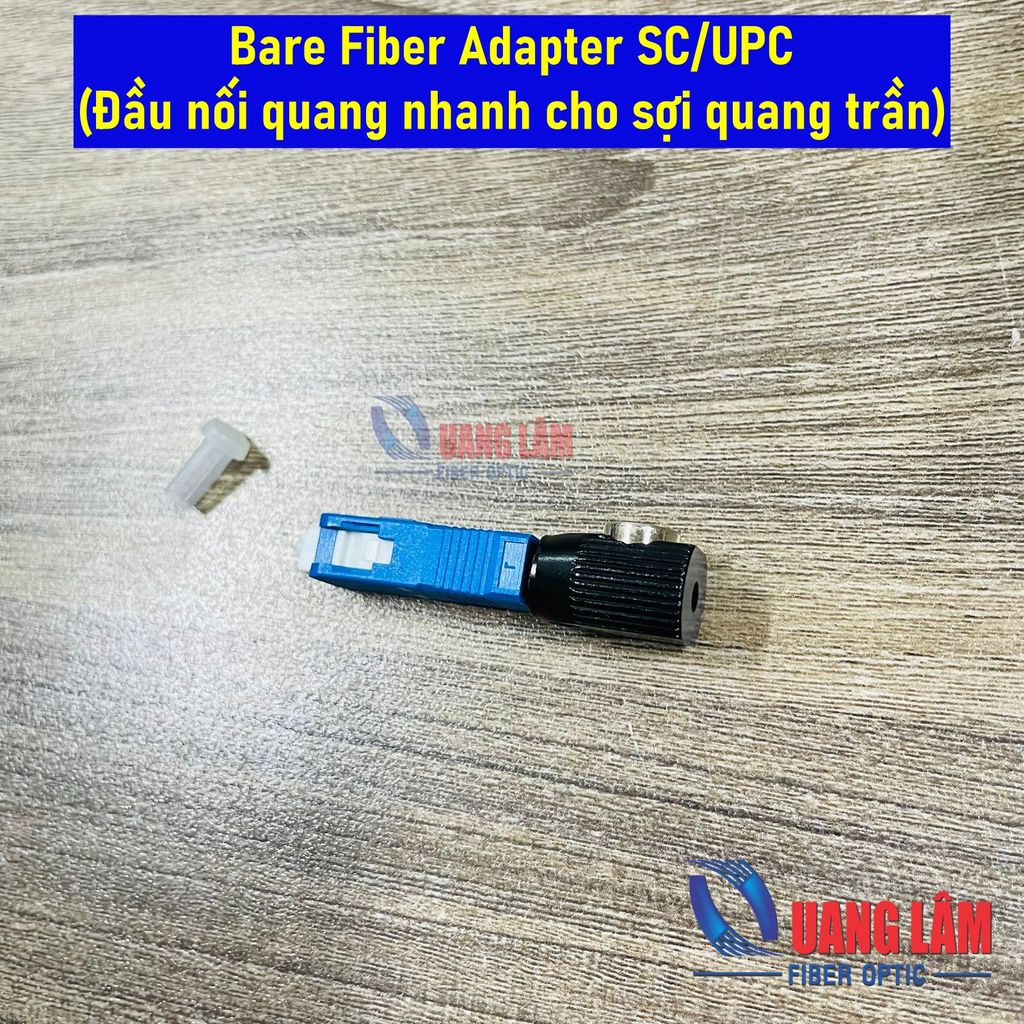

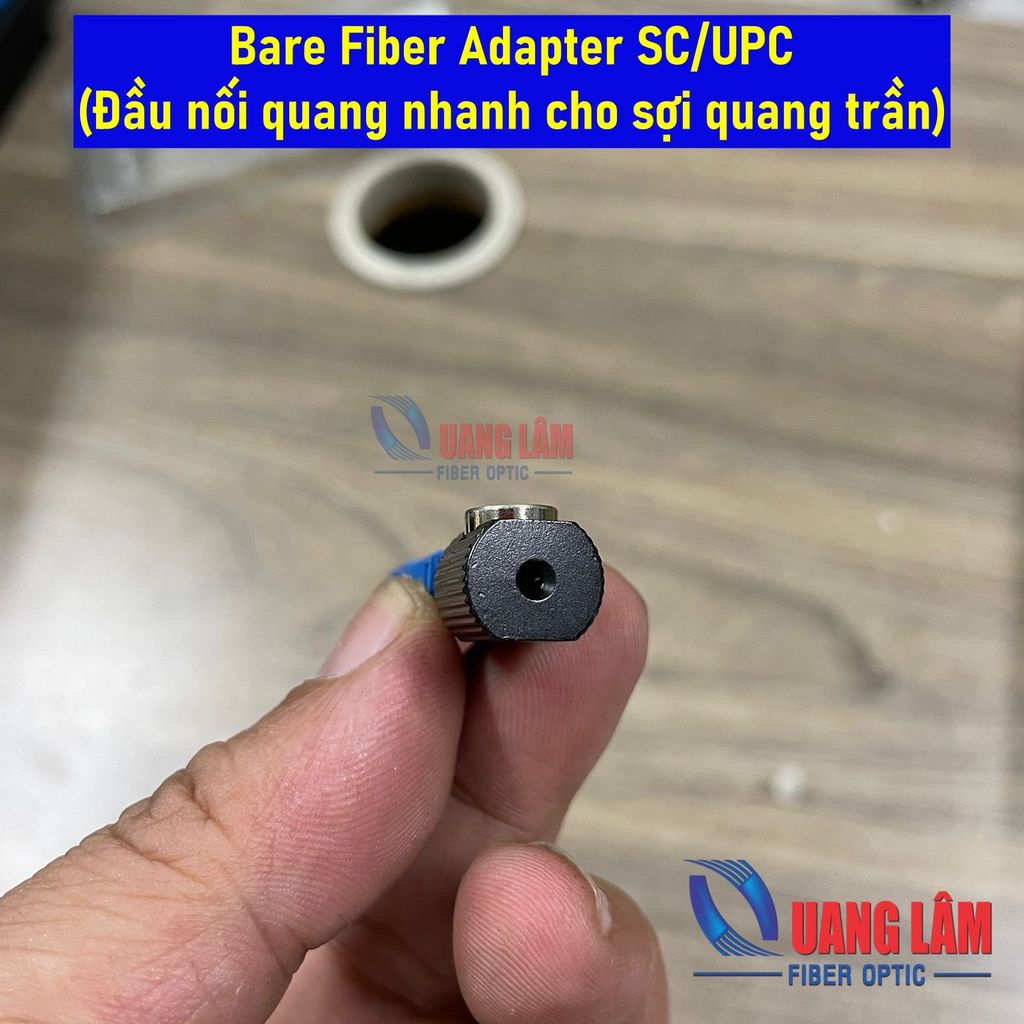

Đầu cắm đo thử sợi quang trần SC/UPC (Bare Fiber Adapter SC)
The Bare Fiber Adaptor enables quick and easy temporary FC connections of multi-mode fibers. This adaptor is very useful for connecting fibers to power meters. Optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.
The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 μm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.
Connect Fibers Quickly to Important Equipment
These adapters are very useful for connecting fibers to power meters, optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.
Great Precision Up to 900 µm Fiber
Bare fiber is secured in place with a special precision cut foam pad to ensure kink- and diffusion-free operation and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated
=========================================================================
