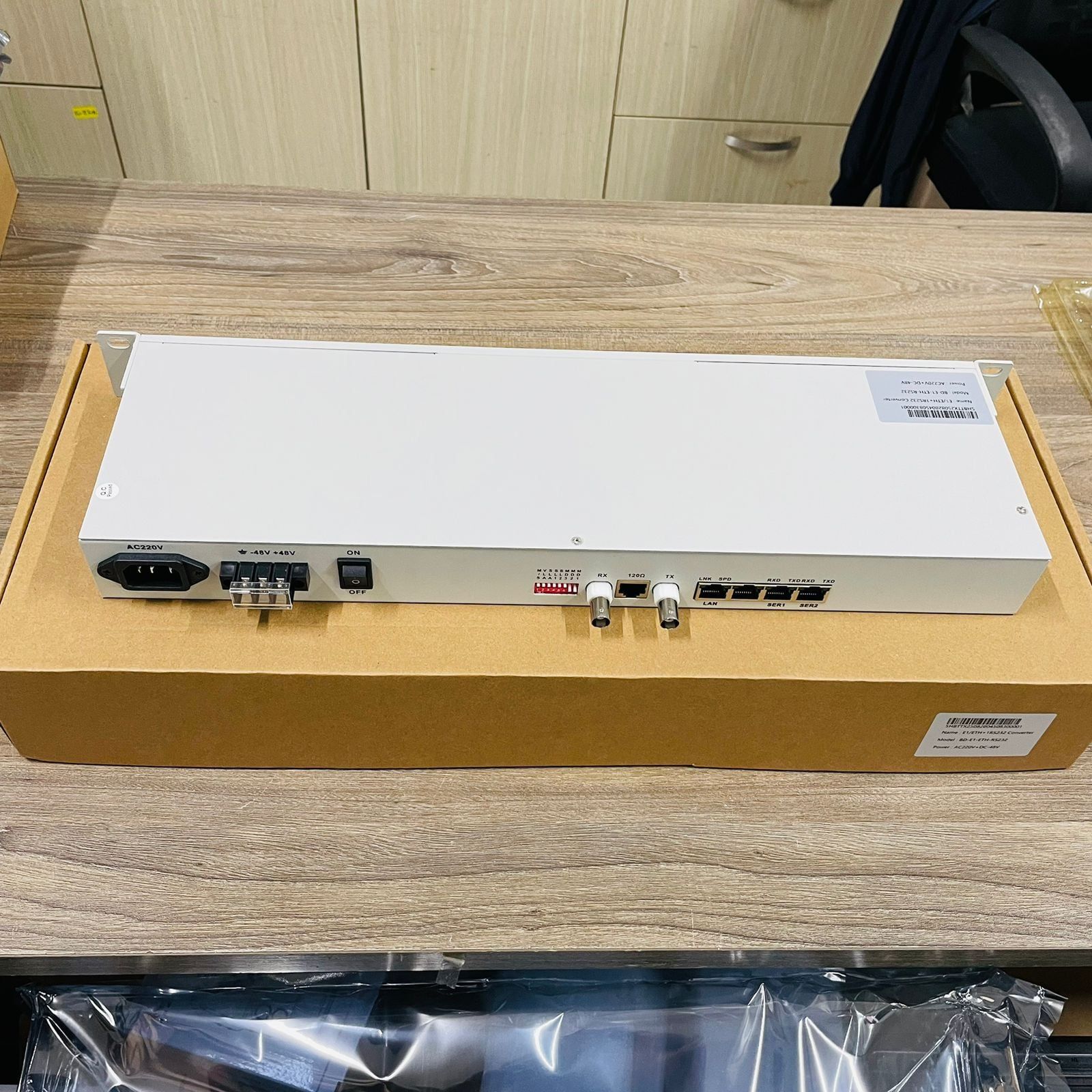

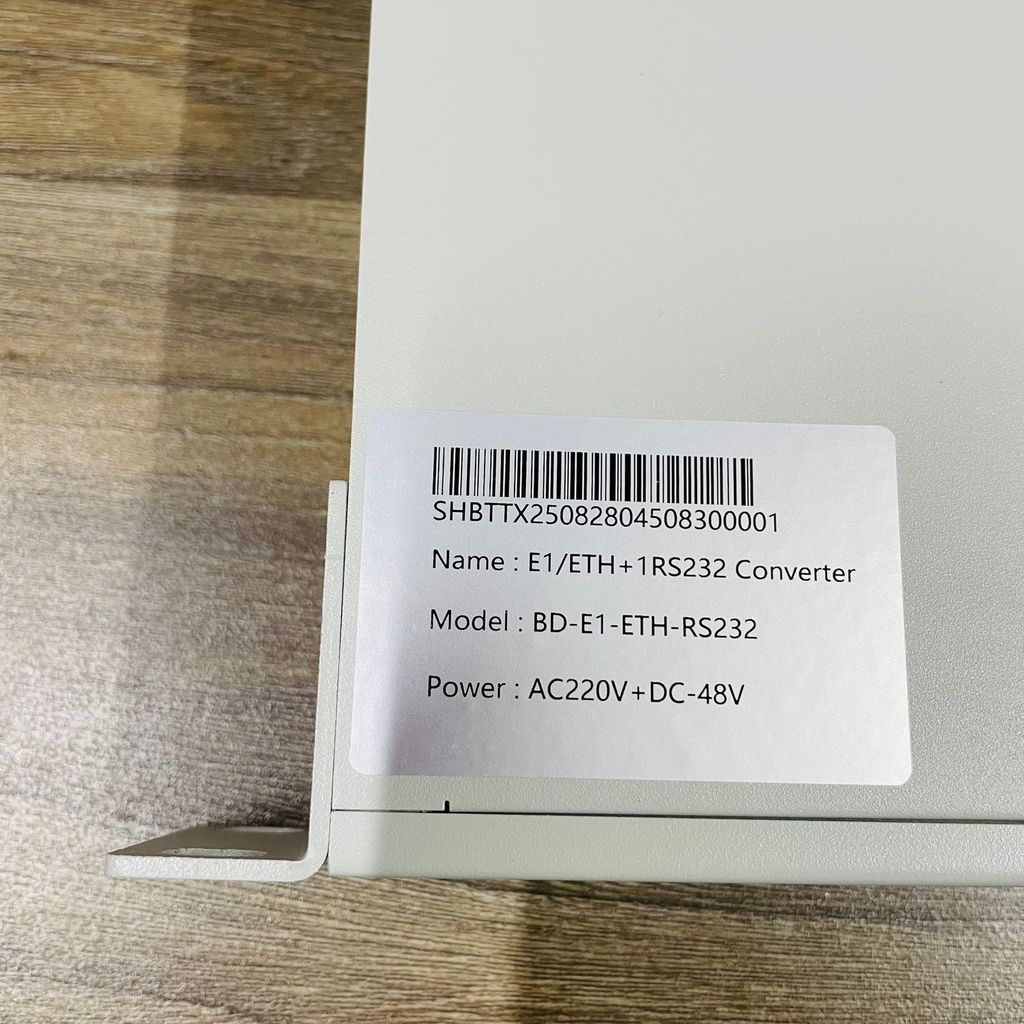

E1 to Ethernet and RS232 converter could Plugging directly into the 10/100Base-T port of a hub or LAN switch, the E1 to Ethernet converter provides FE1 access at connection data rates of 2.048 Mbps, or nx64 (n=1 to 32 channels). The E1 to Ethernet and RS232 converter is an excellent choice for internet access as well as LAN-to-LAN services
PRODUCT CHARACTERISTIC

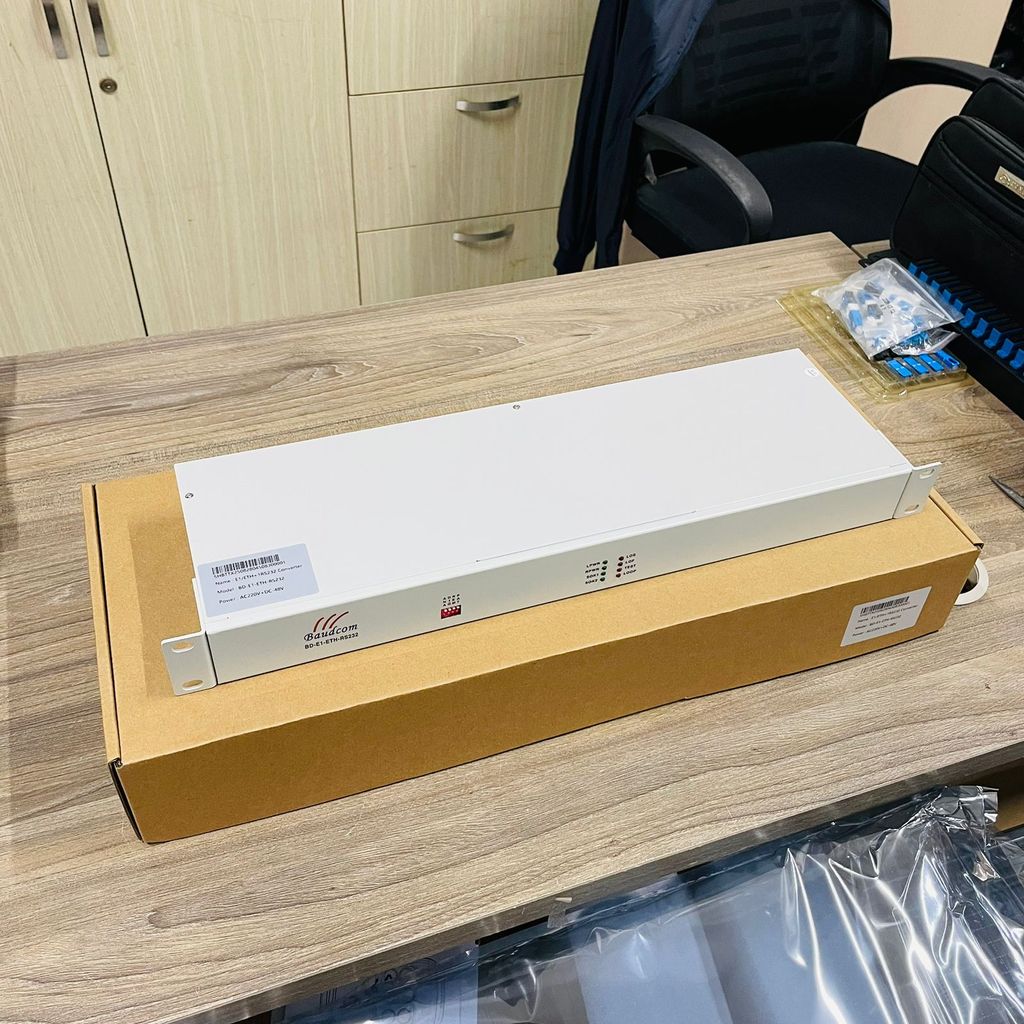

● Have two row of LED, one indicate local status, the other indicate remote status
● Remote adjustment of velocity for the remote device is available, you can set the velocity of one side, and the velocity of the other side can auto adjust.
● Based on FPGA, easy to upgrade
● Ethernet port support AUTO- MDIX( straight line and crossed line adapt); the interface of LAN is 10/100M ,full/duplex auto-negotiation
● LAN interface support 802.1Q(VLAN) protocol
● Provide two clock mode, E1 main clock and E1 line clock
● Have three LoopBack Mode: E1 interface LoopBack(ANA)¡￠LAN interface/RS232 LoopBack(DIG)¡￠command the remote LAN interface/RS232 LoopBack (REM)

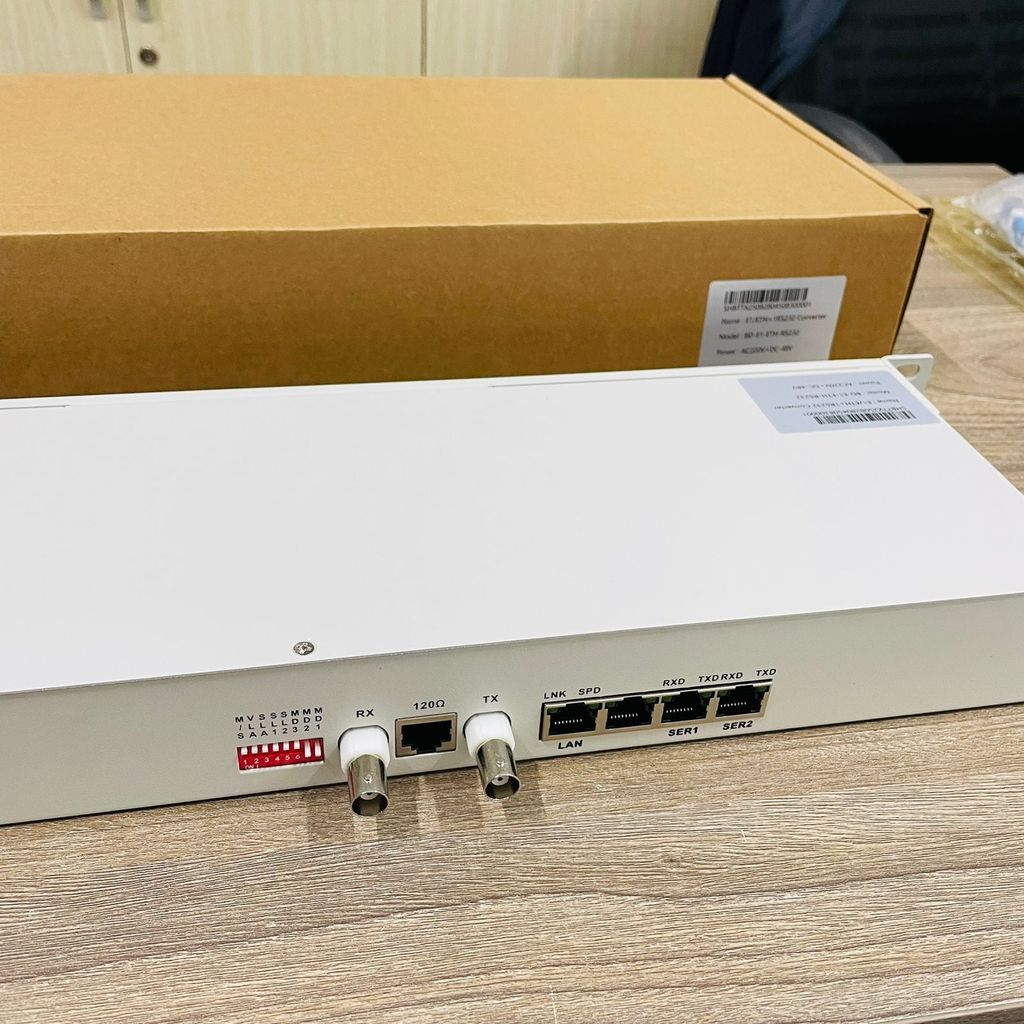

● E1 port support BNC 75-ohm dual coax and RJ45 120-ohm twisted-pair G.703 connections provided, support 75ohm/120ohm adapt;
● Support PBRS test function and it could use as a error code device;
● RS232 channel can transfer asynchronous serial data with self-adaptable baud rate of 300 to 19200;

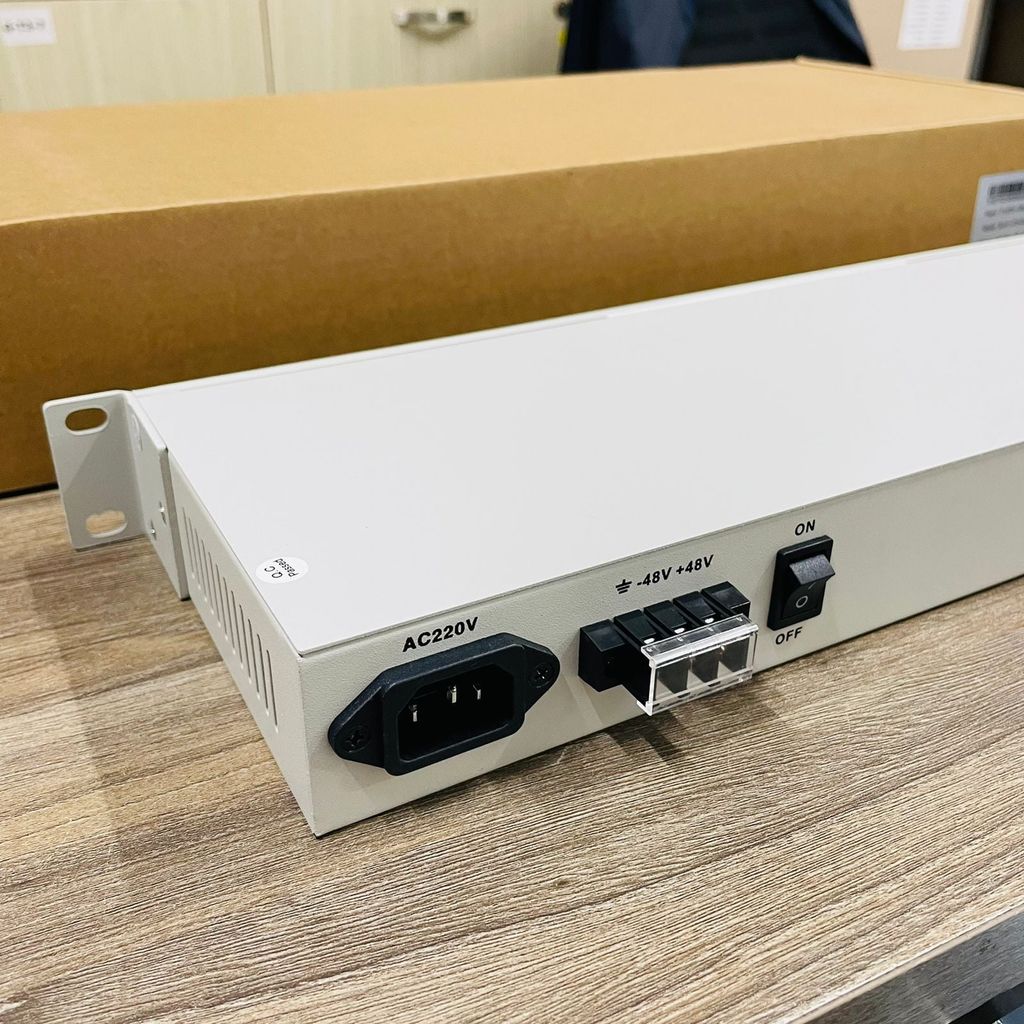

● 220VAC & -48VDC power options and the positive and negative of DC-48V can be optional because there is the self-test circuit for the polarity inside the device
ENVIRONMENT
The temperature requirment is not very strict, the device can be working well under the terrible environment
working temperature: 0~ 50degree
relative humidity: 95%(without coagulation)
No causticity and impregnant gas, no rising dust, no strong magnetic field disturbing
Adapting module power, voltage range can be wide, with strong ant-jamming function .
With good insulation, stable working status is available
power: -48V type, input voltage: -36V~-72V
power: 220V type, input voltage: 165V~265V
power consume:<5W
E1 Interface
Line Rate: N*64K(N=1~31)
Line Code : HDB3
Interface Standard: ITU-T G.703
E1 Impedance : 75 ohm(unbalance) and 120 ohm(balance) adapt
Connections : dual coax and 120-ohm twisted-pair (RJ45)
Jitter tolerance : fine than G.742 and G.823
10/100Base-T Interface
RATE : 10/100M ,full/duplex auto-negotiation
PROTOCOL: Support IEEE 802.3,IEEE 802.1Q(VLAN)
MAC Adderess Entiries:4096 Entiries
Totol Memory Sizes:64MBits SDRAM
Connections:Two RJ45
RS232 port
Rate: 300-115.2Kbps auto-adaptable (Asynchronous)
Interface characteristic: satisfies ITU-T V.24 standard
Connector:RJ45
DIMENSIONS
Mini Type:210mm(W) x140mm (L) x 30mm(H)
19inch Type:433 mm(L)X138mm(W)X 44 mm(H)
Question: Could ethernet port and RS232 port be used as the same time?
Answer: Yes,when connect PC(computer),they can be used as the same time.
